REAR SUSPENSION - CALIPERS AND DISCS of Ferrari Ferrari 488 Pista USA

View All

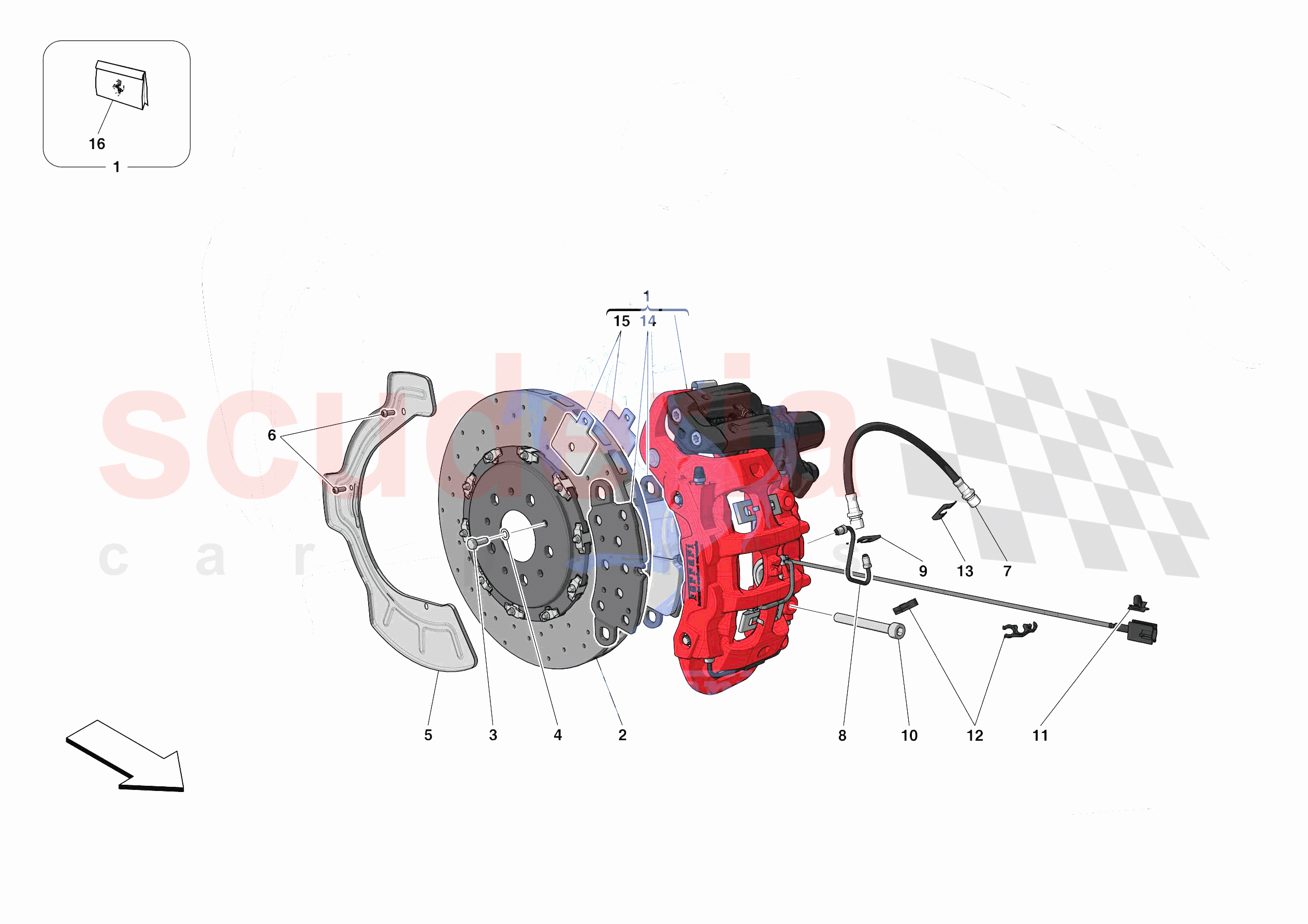

Ferrari 488 Pista USA - REAR SUSPENSION - CALIPERS AND DISCS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	335701	RH REAR CALIPER WITH PADS	Enquire	To Order
	335712	RH REAR CALIPER WITH PADS	Enquire	To Order
	335718	RH REAR CALIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

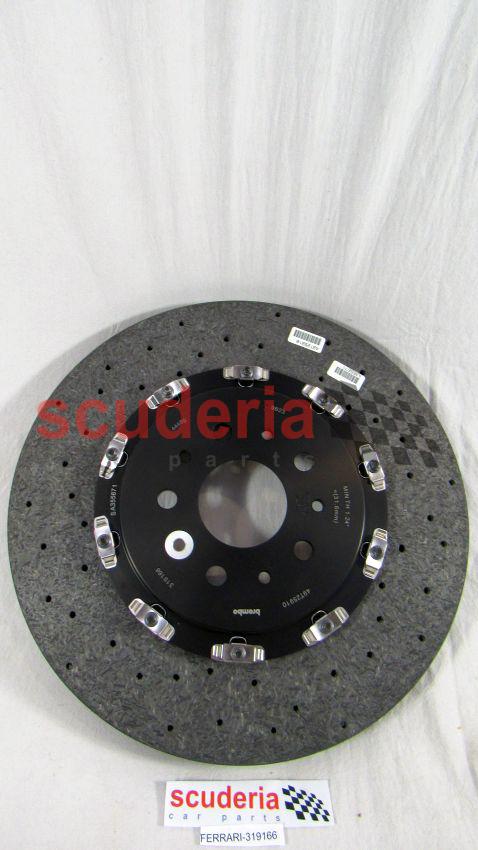

	319166	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257424	RH REAR DISC SHIELD	Enquire	To Order
	257423	LH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326837	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

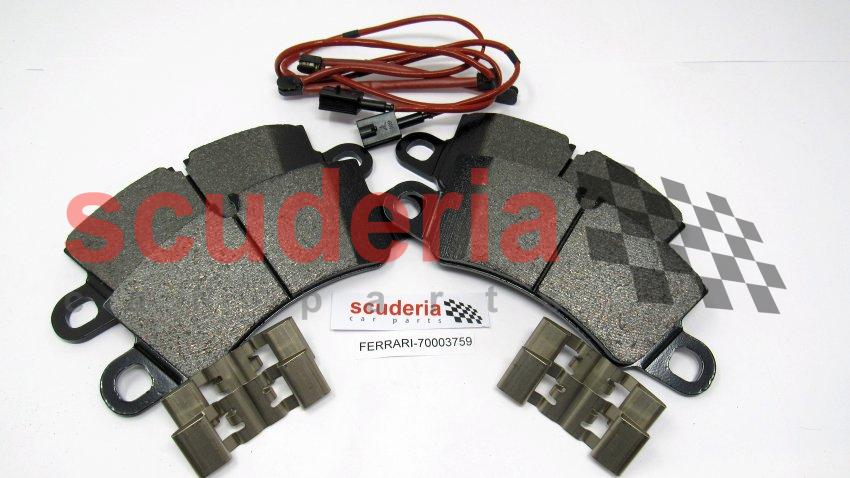

	70003759	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003667	SET OF EPB PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	335701	RH REAR CALIPER WITH PADS	335701 RH REAR CALIPER WITH PADS Anodised black	-	1	Enquire
0001	335712	RH REAR CALIPER WITH PADS	335712 RH REAR CALIPER WITH PADS Black	-	1	Enquire
0001	335718	RH REAR CALIPER WITH PADS	335718 RH REAR CALIPER WITH PADS Red	-	1	Enquire
0001	335717	RH REAR CALIPER WITH PADS	335717 RH REAR CALIPER WITH PADS Silver	-	1	Enquire
0001	335719	RH REAR CALIPER WITH PADS	335719 RH REAR CALIPER WITH PADS Yellow	-	1	Enquire
0001	335713	RH REAR CALIPER WITH PADS	335713 RH REAR CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	335716	RH REAR CALIPER WITH PADS	335716 RH REAR CALIPER WITH PADS Dark grey	-	1	Enquire
0001	335714	RH REAR CALIPER WITH PADS	335714 RH REAR CALIPER WITH PADS Gold	-	1	Enquire
0001	335715	RH REAR CALIPER WITH PADS	335715 RH REAR CALIPER WITH PADS Blue	-	1	Enquire
0001	335699	LH REAR CALIPER WITH PADS	335699 LH REAR CALIPER WITH PADS Anodised black	-	1	Enquire
0001	335704	LH REAR CALIPER WITH PADS	335704 LH REAR CALIPER WITH PADS Black	-	1	Enquire
0001	335710	LH REAR CALIPER WITH PADS	335710 LH REAR CALIPER WITH PADS Red	-	1	Enquire
0001	335709	LH REAR CALIPER WITH PADS	335709 LH REAR CALIPER WITH PADS Silver	-	1	Enquire
0001	335711	LH REAR CALIPER WITH PADS	335711 LH REAR CALIPER WITH PADS Yellow	-	1	Enquire
0001	335705	LH REAR CALIPER WITH PADS	335705 LH REAR CALIPER WITH PADS Scuderia red	-	1	Enquire
0001	335708	LH REAR CALIPER WITH PADS	335708 LH REAR CALIPER WITH PADS Dark grey	-	1	Enquire
0001	335706	LH REAR CALIPER WITH PADS	335706 LH REAR CALIPER WITH PADS Gold	-	1	Enquire
0001	335707	LH REAR CALIPER WITH PADS	335707 LH REAR CALIPER WITH PADS Blue	-	1	Enquire
0002	319166	REAR BRAKE DISC	319166 REAR BRAKE DISC Not bedded-in	-	2	Enquire
0003	228131	SCREW	228131 SCREW M8 X 20	-	4	Enquire
0004	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
0005	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	-	1	Enquire
0005	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	-	1	Enquire
0006	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	6	Enquire
0007	271771	PIPE	271771 PIPE	-	2	Enquire
0007	271771	PIPE	271771 PIPE	-	2	Enquire
0008	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	299562 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
0008	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	299560 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
0009	326837	CLIP	326837 CLIP	-	2	Enquire
0010	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 95	-	4	Enquire
0011	303385	CLIP	303385 CLIP	-	2	Enquire
0012	310942	CLIP	310942 CLIP 3 compartments	-	4	Enquire
0013	116374	CLIP	116374 CLIP	-	2	Enquire
0014	70003759	REAR PAD SET WITH SPRING	70003759 REAR PAD SET WITH SPRING	-	1	Enquire
0015	70003667	SET OF EPB PADS	70003667 SET OF EPB PADS	-	1	Enquire
0016	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
