INJECTION CONTROL of Ferrari Ferrari 488 Pista USA

View All

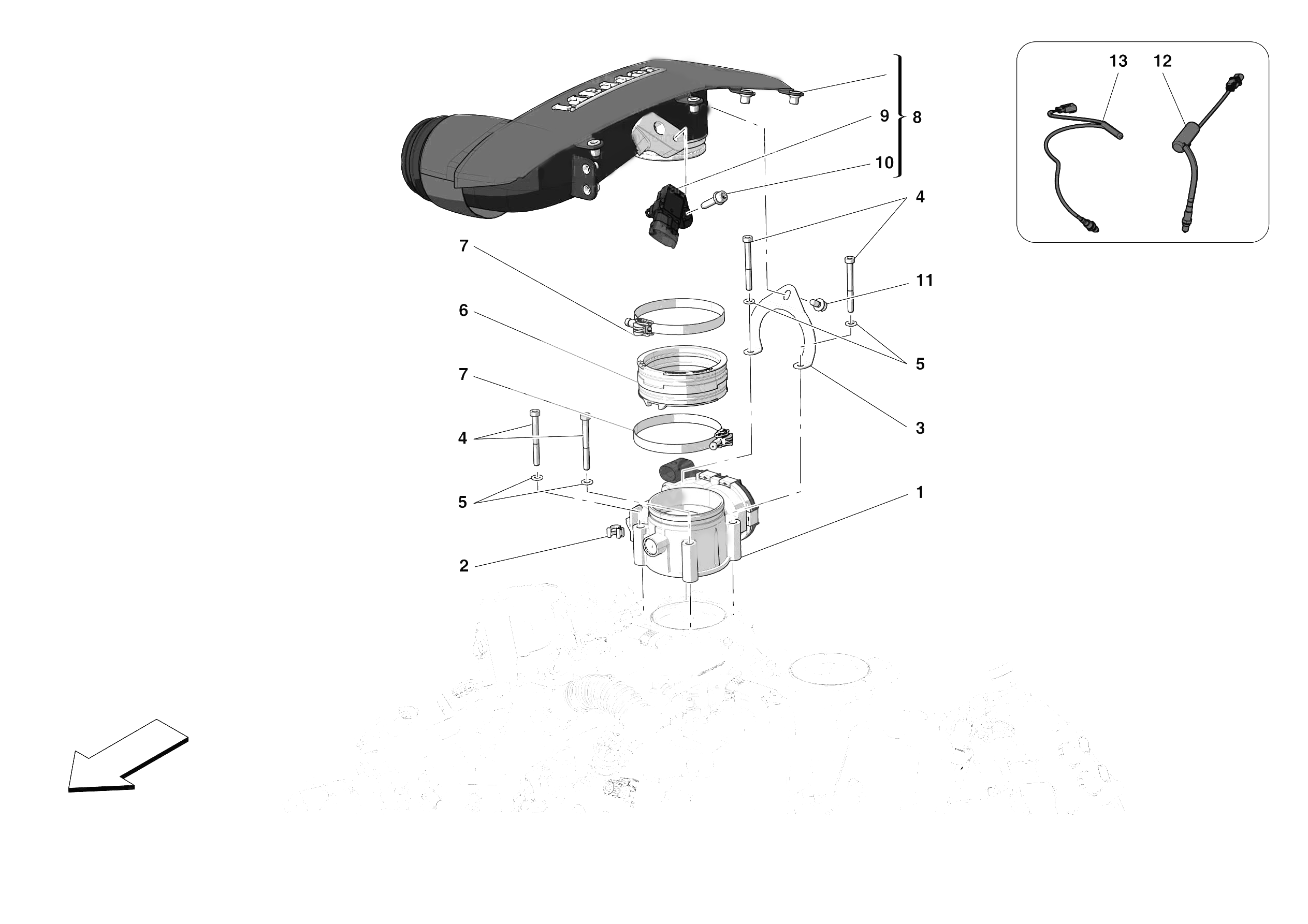

Ferrari 488 Pista USA - INJECTION CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329966	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818494	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	767488	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769144	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338560	THROTTLE BODY SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304446	SCREW COLLAR D.70 - D.90 X 9.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	856685	COMPL. RH INTAKE PLENUM	Enquire	To Order
	801823	COMPL. RH INTAKE PLENUM	Enquire	To Order
	70006354	COMPL. RH INTAKE PLENUM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282391	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292582	OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	784822	REAR OXYGEN SENSOR	Enquire	To Order
	784822	REAR OXYGEN SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	329966	THROTTLE BODY	329966 THROTTLE BODY	-	2	Enquire
0002	818494	CLIP	818494 CLIP	-	2	Enquire
0003	767488	BRACKET	767488 BRACKET	-	2	Enquire
0004	769144	SCREW	769144 SCREW M6 X 55	-	8	Enquire
0005	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
0006	338560	THROTTLE BODY SPACER	338560 THROTTLE BODY SPACER	-	2	Enquire
0007	304446	SCREW COLLAR D.70 - D.90 X 9.3	304446 SCREW COLLAR D.70 - D.90 X 9.3	-	4	Enquire
0008	856685	COMPL. RH INTAKE PLENUM	856685 COMPL. RH INTAKE PLENUM Applies until depletion	-	1	Enquire
0008	801823	COMPL. RH INTAKE PLENUM	801823 COMPL. RH INTAKE PLENUM Applicable after depletion of 856685	-	1	Enquire
0008	70006354	COMPL. RH INTAKE PLENUM	70006354 COMPL. RH INTAKE PLENUM Version in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0008	856680	COMPL. LH INTAKE PLENUM	856680 COMPL. LH INTAKE PLENUM Applies until depletion	-	1	Enquire
0008	801824	COMPL. LH INTAKE PLENUM	801824 COMPL. LH INTAKE PLENUM Applicable after depletion of 856680	-	1	Enquire
0008	70006355	COMPL. LH INTAKE PLENUM	70006355 COMPL. LH INTAKE PLENUM Version in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0009	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR	-	2	Enquire
0010	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
0011	282391	SCREW	282391 SCREW M6 X 12	-	2	Enquire
0012	292582	OXYGEN SENSOR	292582 OXYGEN SENSOR L. 1500 mm	-	2	Enquire
0013	784822	REAR OXYGEN SENSOR	784822 REAR OXYGEN SENSOR Applicable after depletion of 300507	-	2	Enquire
0013	784822	REAR OXYGEN SENSOR	784822 REAR OXYGEN SENSOR	-	2	Enquire
