ENGINE COOLING SYSTEM RADIATORS of Ferrari Ferrari 488 Pista Spider Europe

View All

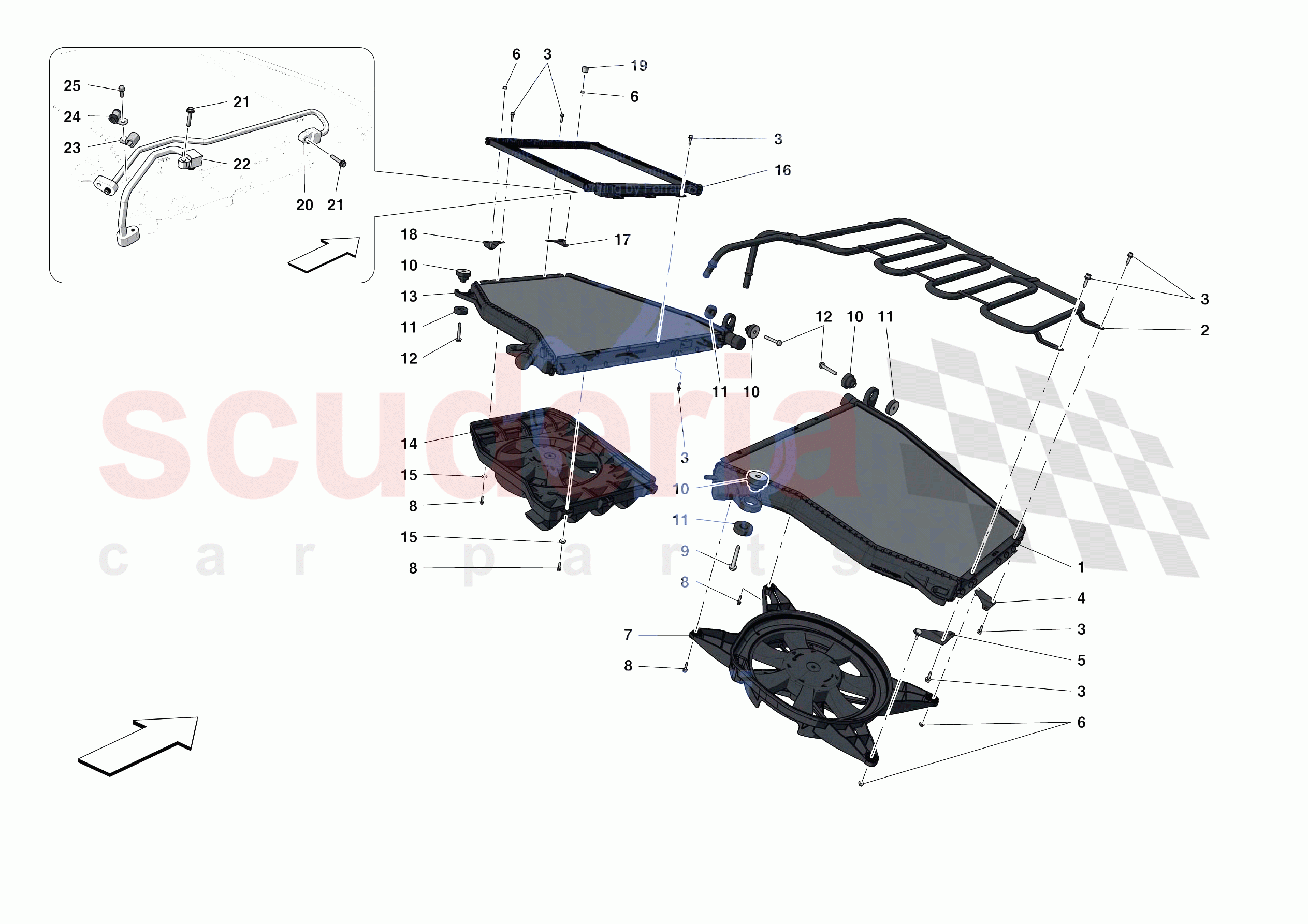

Ferrari 488 Pista Spider Europe - ENGINE COOLING SYSTEM RADIATORS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	769650	RH WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338171	POWER STEERING FLUID COOLING COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	747853	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338639	COMPL. ELECTRIC FAN MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338636	COMPL. ELECTRIC FAN MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315071	ELECTRIC FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	836284	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237478	MOUNTING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	247751	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	836284	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769670	LH WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342151	FAN COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262836	CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338566	COMPL. FRONT CONDENSER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338575	COMPL. REAR CONDENSER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	819473	COSMETIC COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88998000	PIPE FROM CONDENSER TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13837017	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88898400	FREON DELIVERY PIPE TO CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	769650	RH WATER RADIATOR	769650 RH WATER RADIATOR	-	1	Enquire
0002	338171	POWER STEERING FLUID COOLING COIL	338171 POWER STEERING FLUID COOLING COIL	-	1	Enquire
0003	747853	SCREW	747853 SCREW M5 X 20	-	16	Enquire
0004	338639	COMPL. ELECTRIC FAN MOUNTING BRACKET	338639 COMPL. ELECTRIC FAN MOUNTING BRACKET	-	1	Enquire
0005	338636	COMPL. ELECTRIC FAN MOUNTING BRACKET	338636 COMPL. ELECTRIC FAN MOUNTING BRACKET	-	1	Enquire
0006	13046011	NUT	13046011 NUT	-	4	Enquire
0007	315071	ELECTRIC FAN	315071 ELECTRIC FAN	-	1	Enquire
0008	231620	SCREW	231620 SCREW M5 X 25	-	7	Enquire
0009	836284	SCREW	836284 SCREW M8 X 55	-	4	Enquire
0010	237478	MOUNTING ARRIVING SOON	237478 MOUNTING ARRIVING SOON	-	6	Enquire
0011	247751	WASHER	247751 WASHER	-	6	Enquire
0012	836284	SCREW	836284 SCREW M8 X 55	-	4	Enquire
0013	769670	LH WATER RADIATOR	769670 LH WATER RADIATOR	-	1	Enquire
0014	342151	FAN COWL	342151 FAN COWL	-	1	Enquire
0015	12643724	WASHER	12643724 WASHER	-	5	Enquire
0016	262836	CONDENSER	262836 CONDENSER	-	1	Enquire
0017	338566	COMPL. FRONT CONDENSER MOUNTING BRACKET	338566 COMPL. FRONT CONDENSER MOUNTING BRACKET	-	1	Enquire
0018	338575	COMPL. REAR CONDENSER MOUNTING BRACKET	338575 COMPL. REAR CONDENSER MOUNTING BRACKET	-	1	Enquire
0019	819473	COSMETIC COVER	819473 COSMETIC COVER	-	1	Enquire
0020	88998000	PIPE FROM CONDENSER TO DISCONNECTOR	88998000 PIPE FROM CONDENSER TO DISCONNECTOR	-	1	Enquire
0021	13837017	SCREW	13837017 SCREW M6 X 30	-	2	Enquire
0022	88898400	FREON DELIVERY PIPE TO CONDENSER	88898400 FREON DELIVERY PIPE TO CONDENSER	-	1	Enquire
0023	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12 D. 12	-	1	Enquire
0024	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH D. 10	-	1	Enquire
0025	16285014	SCREW	16285014 SCREW M5 X 16	-	1	Enquire
