Ferrari 488 Pista Europe - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
309825 HEAT EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
14300224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604279 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12646624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
839419 REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14498824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
318475 GEARBOX OIL PIPES SHIELD BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
316549 WATER PIPE SHIELD BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
315655 RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
330914 OIL RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
330913 OIL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
309168 FORK Enquire To Order
Photo Part No Description Price (each) Stock
166656 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
253632 FORK Enquire To Order
Photo Part No Description Price (each) Stock
253465 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
254644 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
330915 OIL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
330916 OIL RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
287096 FORK Enquire To Order
Photo Part No Description Price (each) Stock
248471 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
314654 OIL PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14360524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127498 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
243397 RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
243399 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
243398 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
231624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
315652 LH BRACKET Enquire To Order
315653 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
216576 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14603370 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
323942 LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
814942 LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
322829 LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
12648978 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
330917 WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
205416 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
330934 WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
315654 WATER PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14360024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
253631 FORK WITH CAPTIVE SCREW Enquire To Order
View All

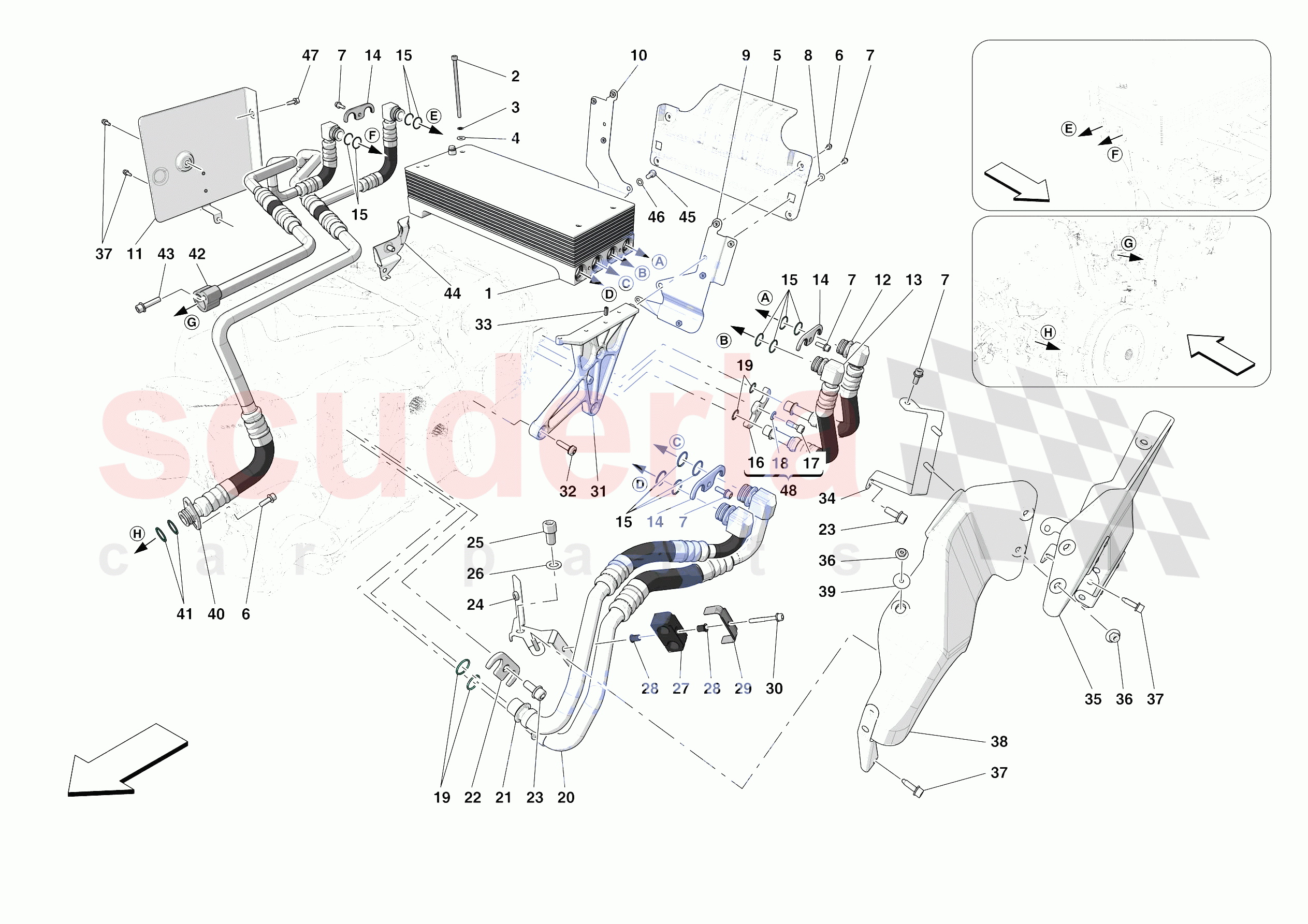

GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari 488 Pista Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 309825
HEAT EXCHANGER 		- 1 Enquire
0002 14300224
SCREW
M6 X 100 		- 4 Enquire
0003 12604279
WASHER 		- 4 Enquire
0004 12646624
WASHER 		- 4 Enquire
0005 839419
REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		- 1 Enquire
0006 248334
SCREW M6 X 14MM
M6 X 16 		- 6 Enquire
0007 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 10 Enquire
0008 14498824
WASHER 		- 3 Enquire
0009 318475
GEARBOX OIL PIPES SHIELD BRACKET 		- 1 Enquire
0010 316549
WATER PIPE SHIELD BRACKET 		- 1 Enquire
0011 315655
RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		- 1 Enquire
0012 330914
OIL RETURN PIPE 		- 1 Enquire
0013 330913
OIL DELIVERY PIPE 		- 1 Enquire
0014 309168
FORK 		- 3 Enquire
0015 166656
O-RING 		- 12 Enquire
0016 253632
FORK
After depletion order compl. pos. 253631; Applies until depletion 		- 1 Enquire
0017 253465
SCREW
No longer supplied; M8 X 22 		- 1 Enquire
0018 986899
WASHER 		- 1 Enquire
0019 254644
O-RING 		- 4 Enquire
0020 330915
OIL DELIVERY PIPE 		- 1 Enquire
0021 330916
OIL RETURN PIPE 		- 1 Enquire
0022 287096
FORK 		- 1 Enquire
0023 248471
SCREW
M8 X 20 		- 2 Enquire
0024 314654
OIL PIPE MOUNTING BRACKET 		- 1 Enquire
0025 14360524
SCREW 		- 1 Enquire
0026 127498
WASHER 		- 1 Enquire
0027 243397
RETAINER BLOCK 		- 4 Enquire
0028 243399
BUSH 		- 8 Enquire
0029 243398
PLATE 		- 4 Enquire
0030 231624
SCREW
M6 X 45 		- 4 Enquire
0031 315652
LH BRACKET 		- 1 Enquire
0031 315653
RH BRACKET 		- 1 Enquire
0032 216576
SCREW
M8 X 30 		- 6 Enquire
0033 14603370
SPRING PIN 		- 2 Enquire
0034 323942
LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET 		- 1 Enquire
0035 814942
LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD 		- 1 Enquire
0036 14059290
FLANGED NUT M6 		- 3 Enquire
0037 11568124
SCREW
M5 X 20 		- 4 Enquire
0038 322829
LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD 		- 1 Enquire
0039 12648978
WASHER 		- 1 Enquire
0040 330917
WATER DELIVERY PIPE 		- 1 Enquire
0041 205416
GASKET 		- 2 Enquire
0042 330934
WATER RETURN PIPE 		- 1 Enquire
0043 231620
SCREW
M6 X 25 		- 1 Enquire
0044 315654
WATER PIPE MOUNTING BRACKET 		- 1 Enquire
0045 14360024
SCREW 		- 2 Enquire
0046 12604574
WASHER 		- 2 Enquire
0047 248334
SCREW M6 X 14MM
M6 X 14 		- 3 Enquire
0048 253631
FORK WITH CAPTIVE SCREW 		- 1 Enquire
