Name: FUEL FILLER FLAP AND CONTROLS
Rating: 5.0 (1 reviews)

FUEL FILLER FLAP AND CONTROLS of Ferrari Ferrari 488 GTB

View All

Ferrari 488 GTB - FUEL FILLER FLAP AND CONTROLS

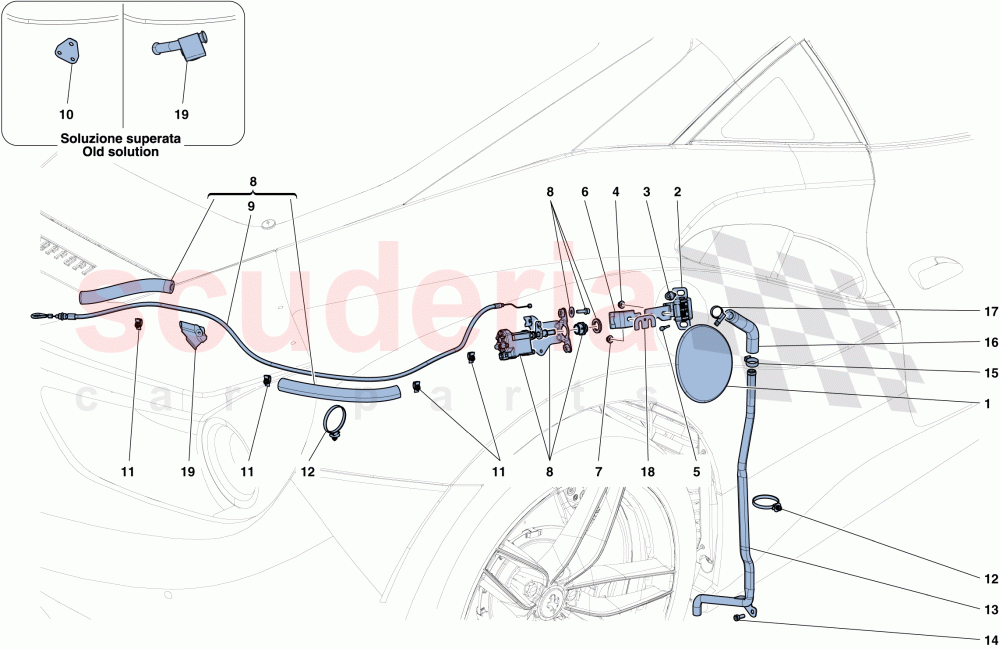

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86621411	FUEL FILLER FLAP	$163.59	To Order
	808624	COMPL. FUEL FILLER FLAP	$711.10	To Order

Photo	Part No	Description	Price (each)	Stock
	807848	COMPL. HINGE	$101.07	To Order

Photo	Part No	Description	Price (each)	Stock
	294780	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	81802300	RUBBER PAD	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	82249400	STRIKER	$8.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	85143200	COMPL. FUEL FILLER FLAP ACTUATOR	$83.60	To Order
	86881700	COMPL. FUEL FILLER FLAP ACTUATOR	$185.79	To Order

Photo	Part No	Description	Price (each)	Stock
	86934400	FUEL FILLER FLAP BOWDEN CABLE	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	87337300	FUEL FILLER FLAP BOWDEN CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	87550700	RIGID FUEL DRAIN PIPE	$417.18	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	87550800	RUBBER HOSE UNION	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	81619400	SPACER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	87950100	ACTUATOR CHORD CABLE GROMMET	$6.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86621411	FUEL FILLER FLAP	86621411 FUEL FILLER FLAP Standard	$163.59	1
1	808624	COMPL. FUEL FILLER FLAP	808624 COMPL. FUEL FILLER FLAP Carbon	$711.10	1
2	807848	COMPL. HINGE	807848 COMPL. HINGE	$101.07	1
3	294780	SCREW	294780 SCREW	$0.47	2
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
5	81802300	RUBBER PAD	81802300 RUBBER PAD	$1.15	1
6	82249400	STRIKER	82249400 STRIKER	$8.49	1
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
8	85143200	COMPL. FUEL FILLER FLAP ACTUATOR	85143200 COMPL. FUEL FILLER FLAP ACTUATOR Applicable from Ass. No. 133737	$83.60	1
8	86881700	COMPL. FUEL FILLER FLAP ACTUATOR	86881700 COMPL. FUEL FILLER FLAP ACTUATOR Applicable up to Ass. No. 133736	$185.79	1
9	86934400	FUEL FILLER FLAP BOWDEN CABLE	86934400 FUEL FILLER FLAP BOWDEN CABLE	$372.69	1
10	87337300	FUEL FILLER FLAP BOWDEN CABLE BRACKET	87337300 FUEL FILLER FLAP BOWDEN CABLE BRACKET Applicable up to Ass. No. 133736	-	1	Enquire
11	248061	CLIP	248061 CLIP	$2.22	4
12	303385	CLIP	303385 CLIP	$0.31	3
13	87550700	RIGID FUEL DRAIN PIPE	87550700 RIGID FUEL DRAIN PIPE	$417.18	1
14	13027024	SCREW M6 X 16MM	13027024 SCREW M6 X 16MM	$0.21 MSRP: ~~1.00~~ (79% off)	1
15	13433570	HOSE COLLAR	13433570 HOSE COLLAR	$0.75	1
16	87550800	RUBBER HOSE UNION	87550800 RUBBER HOSE UNION	$141.19	1
17	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
18	81619400	SPACER	81619400 SPACER	$5.58	1
19	87950100	ACTUATOR CHORD CABLE GROMMET	87950100 ACTUATOR CHORD CABLE GROMMET Applicable from Ass. No. 133737	$6.37	1
