Ferrari 488 GTB - INSULATION

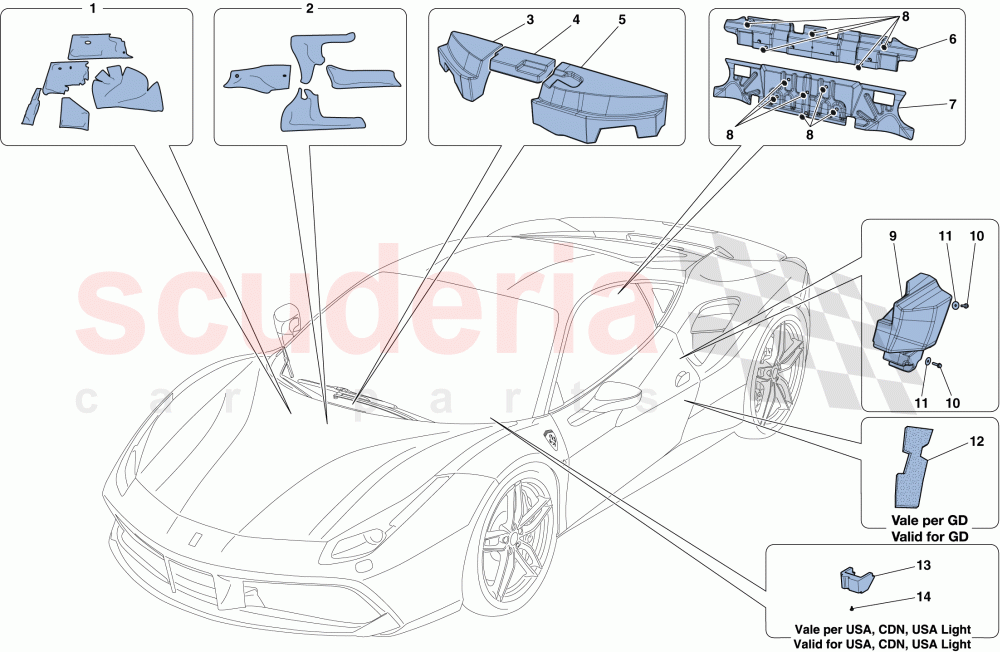

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82923500	HVAC UNIT INSULATION KIT	$118.72	To Order

Photo	Part No	Description	Price (each)	Stock
	82923400	AC MOBILE DUCT INSULATION KIT	$114.66	To Order
	83030200	AC MOBILE DUCT INSULATION KIT	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	84709200	RH PULER	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	84709100	CENTRAL PULER	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	84709000	LH PULER	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	87945300	ENGINE COMPARTMENT REAR SCREEN INSULATION	$110.70	To Order

Photo	Part No	Description	Price (each)	Stock
	86567600	ENGINE COMPARTMENT INSULATION	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86719300	LH FOAM ELEMENT FOR COMPL. CRASH BOX	$77.39	To Order
	86719400	RH FOAM ELEMENT FOR COMPL. CRASH BOX	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	82982700	RH LATERAL FIREWALL SOUNDPROOFING	$24.05	To Order
	82982400	LH LATERAL FIREWALL SOUNDPROOFING	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	87274300	IMPACT ABSORBER	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	15689801	SCREW	$0.08	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	82923500	HVAC UNIT INSULATION KIT	82923500 HVAC UNIT INSULATION KIT	$118.72	1
2	82923400	AC MOBILE DUCT INSULATION KIT	82923400 AC MOBILE DUCT INSULATION KIT Not for GD	$114.66	1
2	83030200	AC MOBILE DUCT INSULATION KIT	83030200 AC MOBILE DUCT INSULATION KIT Applicable for GD	$172.00	1
3	84709200	RH PULER	84709200 RH PULER Not for GD	$37.25	1
4	84709100	CENTRAL PULER	84709100 CENTRAL PULER Not for GD	$25.79	1
5	84709000	LH PULER	84709000 LH PULER Not for GD	$96.26	1
6	87945300	ENGINE COMPARTMENT REAR SCREEN INSULATION	87945300 ENGINE COMPARTMENT REAR SCREEN INSULATION	$110.70	1
7	86567600	ENGINE COMPARTMENT INSULATION	86567600 ENGINE COMPARTMENT INSULATION	$94.66	1
8	67315400	WASHER	67315400 WASHER	$0.44	11
9	86719300	LH FOAM ELEMENT FOR COMPL. CRASH BOX	86719300 LH FOAM ELEMENT FOR COMPL. CRASH BOX	$77.39	1
9	86719400	RH FOAM ELEMENT FOR COMPL. CRASH BOX	86719400 RH FOAM ELEMENT FOR COMPL. CRASH BOX	$77.39	1
10	231625	SCREW	231625 SCREW	$0.65	4
11	12648978	WASHER	12648978 WASHER	$0.55	4
12	82982700	RH LATERAL FIREWALL SOUNDPROOFING	82982700 RH LATERAL FIREWALL SOUNDPROOFING Applicable for GD; No longer supplied	$24.05	1
12	82982400	LH LATERAL FIREWALL SOUNDPROOFING	82982400 LH LATERAL FIREWALL SOUNDPROOFING Applicable for GD; No longer supplied	$25.66	1
13	87274300	IMPACT ABSORBER	87274300 IMPACT ABSORBER Applicable for USA, CDN, USA LIGHT	$40.10	1
14	15689801	SCREW	15689801 SCREW Applicable for USA, CDN, USA LIGHT	$0.08	1
