FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 458 Spider

View All

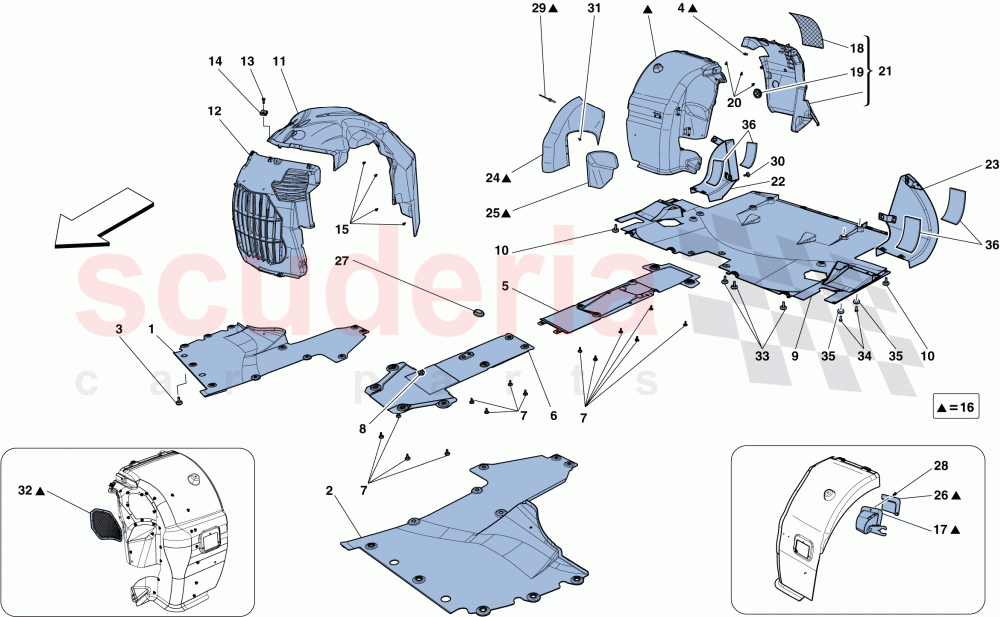

Ferrari 458 Spider - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

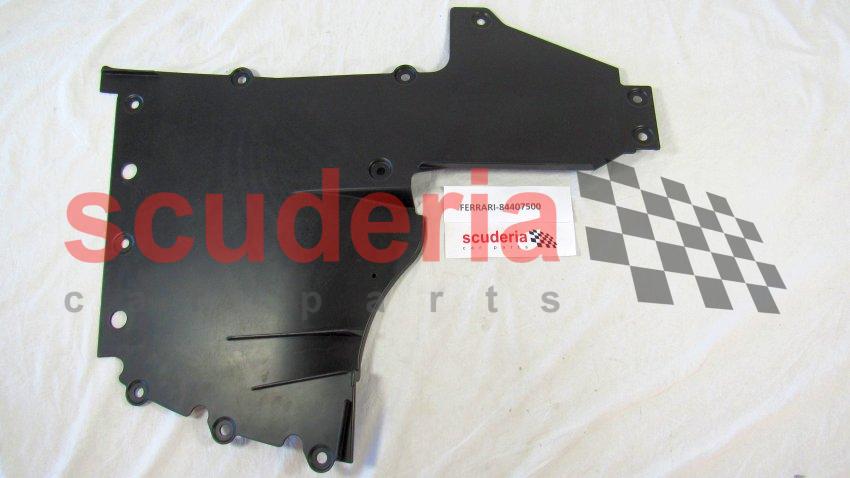

	84407500	FRONT RH UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

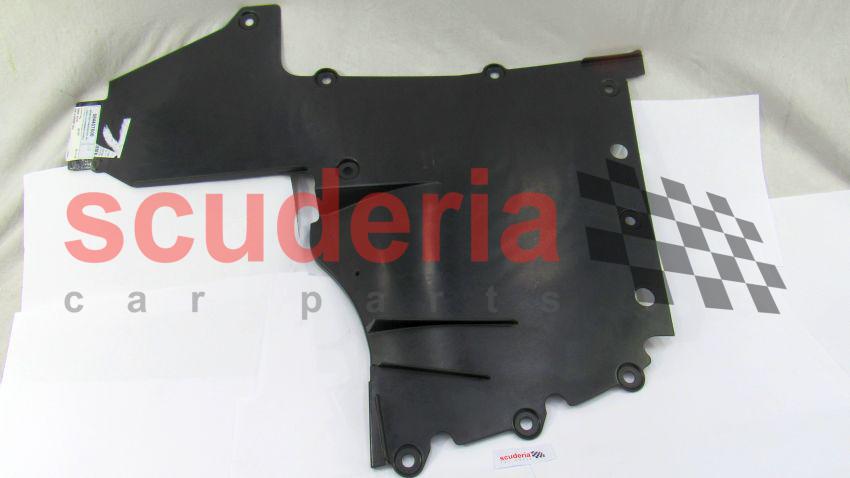

	84407600	FRONT LH UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82884900	CENTRAL UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

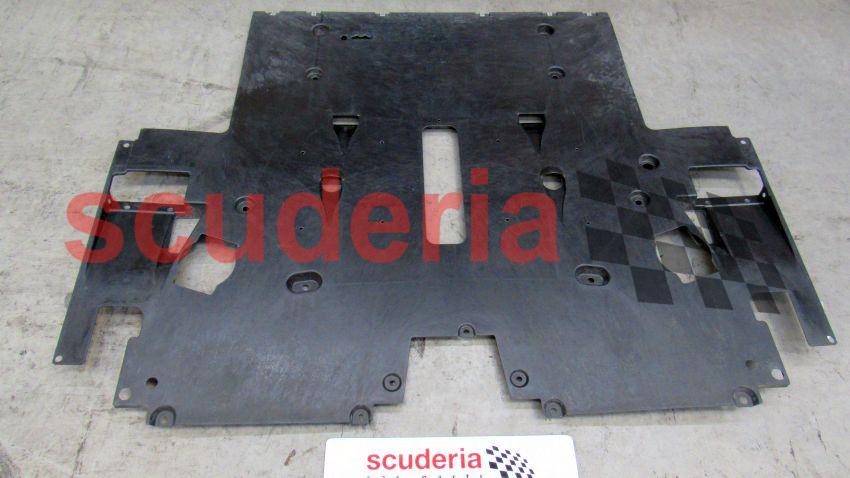

	84200000	Rear Underbody Shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

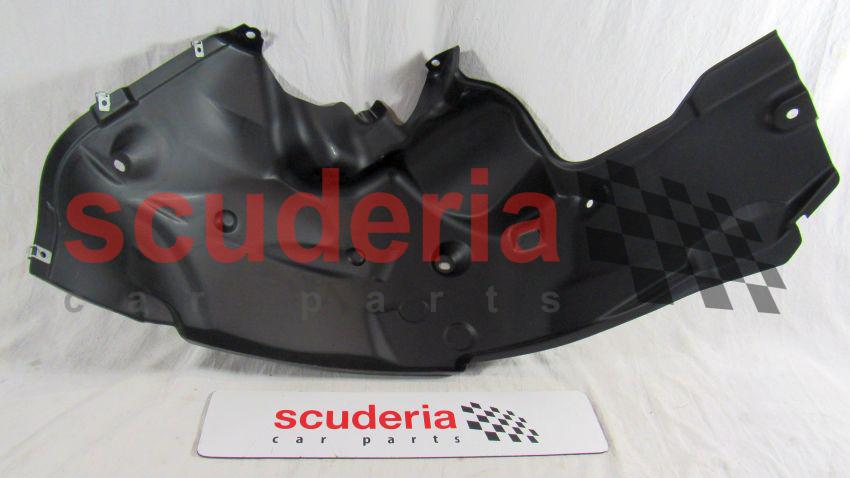

	82911500	RH FRONT WHEELHOUSE	Enquire	To Order
	82911600	LH FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83682900	COMPL. LH WHEELHOUSE	Enquire	To Order
	83682800	COMPL. RH WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83862100	VENT OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83561600	REAR GRAVEL GUARD GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81535200	GROMMET WITH MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13287724	SCREW	Enquire	To Order
	16285224	SCREW	Enquire	To Order
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82471600	RH REAR WHEELHOUSE REAR GRAVEL GUARD	Enquire	To Order
	82471700	LH REAR WHEELHOUSE REAR GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81763000	RH DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81763100	LH DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83946900	UPPER RH HEAT SHIELD	Enquire	To Order
	83947000	UPPER LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84026100	LOWER RH HEAT SHIELD	Enquire	To Order
	84026400	LOWER LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003800	FLOOR HATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82159500	CAP FOR SLOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14296196	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13287724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84047400	LH WHEELHOUSE GRILLE	Enquire	To Order
	84047300	RH WHEELHOUSE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84407500	FRONT RH UNDERBODY SHIELD	84407500 FRONT RH UNDERBODY SHIELD	-	1	Enquire
2	84407600	FRONT LH UNDERBODY SHIELD	84407600 FRONT LH UNDERBODY SHIELD	-	1	Enquire
3	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	22	Enquire
4	62766300	CLIP	62766300 CLIP	-	8	Enquire
5	82884900	CENTRAL UNDERBODY SHIELD	82884900 CENTRAL UNDERBODY SHIELD	-	1	Enquire
6	82955800	CENTRAL UNDERBODY SHIELD, FRONT SECTION	82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION	-	1	Enquire
7	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	14	Enquire
8	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW	-	2	Enquire
9	84200000	Rear Underbody Shield	84200000 Rear Underbody Shield	-	1	Enquire
10	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	4	Enquire
11	82911500	RH FRONT WHEELHOUSE	82911500 RH FRONT WHEELHOUSE Also order 82911600	-	1	Enquire
11	82911600	LH FRONT WHEELHOUSE	82911600 LH FRONT WHEELHOUSE Also order 82911500	-	1	Enquire
13	85199200	FIXING BUTTON	85199200 FIXING BUTTON M6 X 15	-	6	Enquire
14	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW	-	6	Enquire
15	85199200	FIXING BUTTON	85199200 FIXING BUTTON M6 X 15	-	18	Enquire
16	83682900	COMPL. LH WHEELHOUSE	83682900 COMPL. LH WHEELHOUSE Also order 83682800	-	1	Enquire
16	83682800	COMPL. RH WHEELHOUSE	83682800 COMPL. RH WHEELHOUSE Also order 83682900	-	1	Enquire
17	83862100	VENT OUTLET	83862100 VENT OUTLET On LH rear gravel guard	-	1	Enquire
18	83561600	REAR GRAVEL GUARD GRILLE	83561600 REAR GRAVEL GUARD GRILLE	-	2	Enquire
19	81535200	GROMMET WITH MEMBRANE	81535200 GROMMET WITH MEMBRANE	-	1	Enquire
20	13287724	SCREW	13287724 SCREW M5 X 10	-	12	Enquire
20	16285224	SCREW	16285224 SCREW M6 X 14	-	30	Enquire
20	85199200	FIXING BUTTON	85199200 FIXING BUTTON M6 X 15	-	18	Enquire
21	82471600	RH REAR WHEELHOUSE REAR GRAVEL GUARD	82471600 RH REAR WHEELHOUSE REAR GRAVEL GUARD Also order 82471700	-	1	Enquire
21	82471700	LH REAR WHEELHOUSE REAR GRAVEL GUARD	82471700 LH REAR WHEELHOUSE REAR GRAVEL GUARD Also order 82471600	-	1	Enquire
22	81763000	RH DUCT	81763000 RH DUCT	-	1	Enquire
23	81763100	LH DUCT	81763100 LH DUCT	-	1	Enquire
24	83946900	UPPER RH HEAT SHIELD	83946900 UPPER RH HEAT SHIELD	-	1	Enquire
24	83947000	UPPER LH HEAT SHIELD	83947000 UPPER LH HEAT SHIELD	-	1	Enquire
25	84026100	LOWER RH HEAT SHIELD	84026100 LOWER RH HEAT SHIELD	-	1	Enquire
25	84026400	LOWER LH HEAT SHIELD	84026400 LOWER LH HEAT SHIELD	-	1	Enquire
26	83003800	FLOOR HATCH COVER	83003800 FLOOR HATCH COVER	-	1	Enquire
27	82159500	CAP FOR SLOT	82159500 CAP FOR SLOT	-	2	Enquire
28	85833700	SCREW	85833700 SCREW	-	3	Enquire
29	14296196	RIVET	14296196 RIVET	-	40	Enquire
30	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	8	Enquire
31	13287724	SCREW	13287724 SCREW M5 X 10	-	1	Enquire
32	84047400	LH WHEELHOUSE GRILLE	84047400 LH WHEELHOUSE GRILLE	-	1	Enquire
32	84047300	RH WHEELHOUSE GRILLE	84047300 RH WHEELHOUSE GRILLE	-	1	Enquire
33	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	15	Enquire
34	231620	SCREW	231620 SCREW	-	4	Enquire
35	12648925	WASHER	12648925 WASHER	-	4	Enquire
36	142798	RUBBER SHIM	142798 RUBBER SHIM	-	4	Enquire
