CLUTCH HOUSING -Valid for 456 GTA- of Ferrari Ferrari 456 GT/GTA

View All

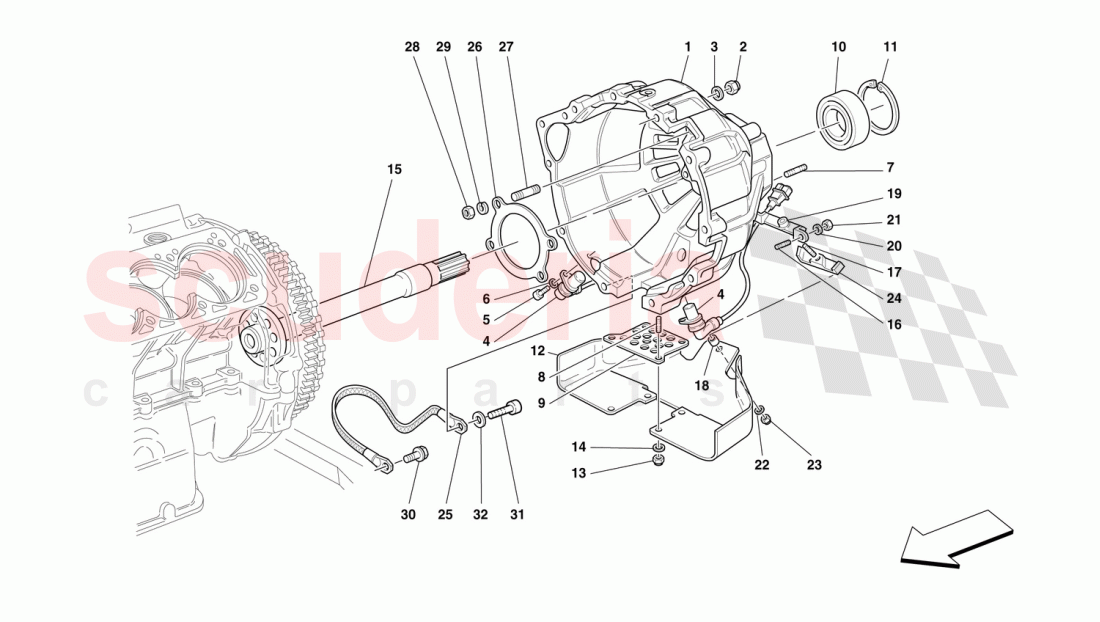

Ferrari 456 GT/GTA - CLUTCH HOUSING -Valid for 456 GTA-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	169639	CLUTCH HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164082	RH Side Angolar Speed Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001024	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144441	CLUTCH HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174470	GROOVED BALL BEARING D.35-72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144511	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154485	SHIELD FOR FASE SENSOR PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161839	PROPELLER SHAFT WITH FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155177	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155175	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154464	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146654	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155918	CABLE FOR ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174643	FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	174216	PROPELLER SHAFT WITH FLANGE	174216 PROPELLER SHAFT WITH FLANGE Valid from Ass. Nr. 28851	-	1	Enquire
-	164083	COMPLETE ANGOLAR SPEED SENSOR	164083 COMPLETE ANGOLAR SPEED SENSOR	-	1	Enquire
-	174470	GROOVED BALL BEARING D.35-72	174470 GROOVED BALL BEARING D.35-72 Valid from Ass. Nr. 27198	-	1	Enquire
-	178870	COMPLETE CLUTCH HOUSING	178870 COMPLETE CLUTCH HOUSING Valid from Ass. Nr. 27198	-	1	Enquire
-	174467	CLUTCH HOUSING	174467 CLUTCH HOUSING Not as spare part / With the complete clutch housing 178870 / Valid from Ass. Nr. 27198	-	1	Enquire
-	173622	COMPLETE CLUTCH HOUSING	173622 COMPLETE CLUTCH HOUSING Valid till Ass. Nr. 27197	-	1	Enquire
1	169639	CLUTCH HOUSING	169639 CLUTCH HOUSING Not as spare part / With the complete clutch housing 173622 / Valid till Ass. Nr. 27197	-	1	Enquire
2	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	9	Enquire
3	12601374	WASHER	12601374 WASHER	-	9	Enquire
4	164082	RH Side Angolar Speed Sensor	164082 RH Side Angolar Speed Sensor	-	1	Enquire
5	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
6	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
7	13546334	STUD BOLT	13546334 STUD BOLT	-	8	Enquire
8	11001024	Stud	11001024 Stud	-	4	Enquire
9	144441	CLUTCH HOUSING COVER	144441 CLUTCH HOUSING COVER	-	1	Enquire
10	174470	GROOVED BALL BEARING D.35-72	174470 GROOVED BALL BEARING D.35-72 Valid till Ass. Nr. 27197	-	1	Enquire
11	144511	STOP RING	144511 STOP RING	-	1	Enquire
12	154485	SHIELD FOR FASE SENSOR PROTECTION	154485 SHIELD FOR FASE SENSOR PROTECTION	-	1	Enquire
13	15896470	NUT	15896470 NUT	-	4	Enquire
14	12604178	Washer	12604178 Washer	-	4	Enquire
15	161839	PROPELLER SHAFT WITH FLANGE	161839 PROPELLER SHAFT WITH FLANGE Valid till Ass. Nr. 28850	-	1	Enquire
16	13540824	STUD BOLT	13540824 STUD BOLT	-	2	Enquire
17	155177	STUD BOLT	155177 STUD BOLT	-	1	Enquire
18	155175	SPACER	155175 SPACER	-	1	Enquire
19	154464	SUPPORT	154464 SUPPORT	-	1	Enquire
20	12639724	WASHER	12639724 WASHER	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	11199274	WASHER	11199274 WASHER	-	1	Enquire
23	15896470	NUT	15896470 NUT	-	1	Enquire
24	146654	MOUNTING	146654 MOUNTING	-	1	Enquire
25	155918	CABLE FOR ENGINE	155918 CABLE FOR ENGINE	-	1	Enquire
26	174643	FLANGE	174643 FLANGE Valid from Ass. Nr. 27198	-	1	Enquire
27	13543124	STUD BOLT	13543124 STUD BOLT Valid from Ass. Nr. 27198	-	4	Enquire
28	133989	NUT	133989 NUT Valid from Ass. Nr. 27198	-	4	Enquire
29	127496	WASHER	127496 WASHER Valid from Ass. Nr. 27198	-	4	Enquire
30	16296421	SCREW	16296421 SCREW	-	1	Enquire
31	285494	SCREW	285494 SCREW	-	4	Enquire
32	11193874	WASHER	11193874 WASHER	-	4	Enquire
