Ferrari 430 Scuderia - DASHBOARD

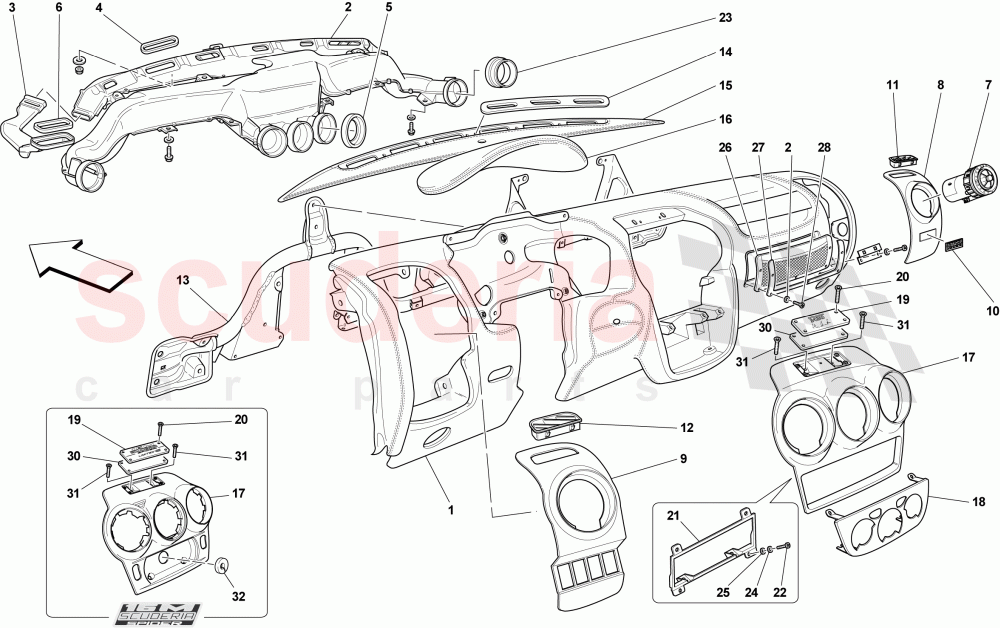

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82032600	DASHBOARD	Enquire	To Order
	82032712	DASH BOARD	Enquire	To Order
	82032312	DASHBOARD	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63352900	AIR DUCT	Enquire	To Order
	65536200	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65132400	LH LATERAL DUCT	Enquire	To Order
	65132300	RH LATERAL DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66050600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63353300	Central Air Vent Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65132500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67382400	DASHBOARD AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82262900	CAMPIONI DEL MONDO "2008" LABEL	Enquire	To Order
	80462510	60 YEARS LABEL	Enquire	To Order
	81190910	CAMPIONI DEL MONDO "2007" LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67919000	RH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67919100	LH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80361200	HARNESS FRAME ASSEMBLY	Enquire	To Order
	80808500	HARNESS FRAME ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65891000	LH AIR VENT SURROUND	Enquire	To Order
	65018200	RH Air Outlet Plate LHD	Enquire	ARRIVING SOON
	65891100	RH AIR VENT SURROUND	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82462700	WINDSCREEN AIR FIXING PLATE TRIM PANEL	Enquire	To Order
	82462800	WINDSCREEN AIR FIXING PLATE TRIM PANEL	Enquire	To Order
	81024300	WINDSCREEN AIR FIXING PLATE TRIM PANEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80760000	BINNACLE	Enquire	To Order
	80760512	DASH BOARD -Alcantara-	Enquire	To Order
	69943212	DASH BOARD -Standard-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81201800	UPPER CENTRAL VENT PANEL	Enquire	To Order
	82073100	UPPER CENTRAL VELA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82054100	LIMITED SPIDER LABEL	Enquire	To Order
	80674800	430 SCUDERIA LABEL	Enquire	To Order
	81012200	DEDICATION PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68927600	SCREW	Enquire	To Order
	64214100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68662200	RADIO FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	68134900	RH LATERAL AIR VENT GASKET	Enquire	To Order
	68135000	LH LATERAL AIR VENT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80337600	COVER	Enquire	To Order
	80759112	COVER -Leather-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80338300	FRAME	Enquire	To Order
	80759300	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81612700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69140100	DEDICATION PLAQUE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13270270	SCREW -Valid for USA and CDN-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10403180	RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82032600	DASHBOARD	82032600 DASHBOARD Leather; Without airbag disable system; Applicable for Spider 16M; Applicable for GD	-	1	Enquire
1	82032712	DASH BOARD	82032712 DASH BOARD Standard; Without airbag disable system; Applicable for Spider 16M; Applicable for GD	-	1	Enquire
1	82032312	DASHBOARD	82032312 DASHBOARD Leather; With airbag disable system; Applicable for Spider 16M; Applicable for GD	-	1	Enquire
1	82031600	DASHBOARD	82031600 DASHBOARD Leather; With airbag disable system; Applicable for Spider 16M; Not for GD	-	1	Enquire
1	82031900	DASHBOARD	82031900 DASHBOARD Leather; Without airbag disable system; Applicable for Spider 16M; Not for GD	-	1	Enquire
1	82032412	DASHBOARD	82032412 DASHBOARD Standard; With airbag disable system; Applicable for Spider 16M; Applicable for GD	-	1	Enquire
1	81328612	DASHBOARD WITH INSTRUMENTS BLACK	81328612 DASHBOARD WITH INSTRUMENTS BLACK Leather; Without airbag disable system; Not for Spider 16M; Applicable for GD	-	1	Enquire
1	82031712	DASHBOARD	82031712 DASHBOARD Standard; With airbag disable system; Applicable for Spider 16M; Not for GD	-	1	Enquire
1	82032012	CPL.DASHBOARD WITH INSTRUMENTS BLACK ALC	82032012 CPL.DASHBOARD WITH INSTRUMENTS BLACK ALC Standard; Without airbag disable system; Applicable for Spider 16M; Not for GD	-	1	Enquire
1	80810612	DASHBOARD WITH INSTRUMENTS BLACK	80810612 DASHBOARD WITH INSTRUMENTS BLACK Standard; With airbag disable system; Not for Spider 16M; Applicable for GD	-	1	Enquire
1	81328512	DASHBOARD WITH INSTRUMENTS BLACK ALCANTA	81328512 DASHBOARD WITH INSTRUMENTS BLACK ALCANTA Standard; Without airbag disable system; Not for Spider 16M; Applicable for GD	-	1	Enquire
1	80814800	DASHBOARD	80814800 DASHBOARD Leather; With airbag disable system; Not for Spider 16M; Applicable for GD	-	1	Enquire
1	81328212	CPL.DASHBOARD WITH INSTRUMENTS BLACK ALC	81328212 CPL.DASHBOARD WITH INSTRUMENTS BLACK ALC Standard; Without airbag disable system; Not for Spider 16M; Not for GD	-	1	Enquire
1	80762512	DASHBOARD WITH INSTRUMENTS -Leather-	80762512 DASHBOARD WITH INSTRUMENTS -Leather- Leather; With airbag disable system; Not for Spider 16M; Not for GD	-	1	Enquire
1	81328312	DASHBOARD WITH INSTRUMENTS BLACK	81328312 DASHBOARD WITH INSTRUMENTS BLACK Leather; Without airbag disable system; Not for Spider 16M; Not for GD	-	1	Enquire
1	69832312	DASHBOARD WITH INSTRUMENTS -Standard-	69832312 DASHBOARD WITH INSTRUMENTS -Standard- Standard; With airbag disable system; Not for Spider 16M; Not for GD	-	1	Enquire
2	63352900	AIR DUCT	63352900 AIR DUCT Not for GD	-	1	Enquire
2	65536200	AIR DUCT	65536200 AIR DUCT Applicable for GD	-	1	Enquire
3	65132400	LH LATERAL DUCT	65132400 LH LATERAL DUCT	-	1	Enquire
3	65132300	RH LATERAL DUCT	65132300 RH LATERAL DUCT	-	1	Enquire
4	66050600	GASKET	66050600 GASKET	-	6	Enquire
5	63353300	Central Air Vent Gasket	63353300 Central Air Vent Gasket	-	3	Enquire
6	65132500	GASKET	65132500 GASKET	-	2	Enquire
7	67382400	DASHBOARD AIR VENT	67382400 DASHBOARD AIR VENT	-	5	Enquire
10	82262900	CAMPIONI DEL MONDO "2008" LABEL	82262900 CAMPIONI DEL MONDO "2008" LABEL	-	1	Enquire
10	80462510	60 YEARS LABEL	80462510 60 YEARS LABEL Not for Spider 16M	-	1	Enquire
10	81190910	CAMPIONI DEL MONDO "2007" LABEL	81190910 CAMPIONI DEL MONDO "2007" LABEL Not for Spider 16M	-	1	Enquire
11	67919000	RH SEAT BELT SLOT SURROUND	67919000 RH SEAT BELT SLOT SURROUND	-	1	Enquire
12	67919100	LH SEAT BELT SLOT SURROUND	67919100 LH SEAT BELT SLOT SURROUND	-	1	Enquire
13	80361200	HARNESS FRAME ASSEMBLY	80361200 HARNESS FRAME ASSEMBLY Not for GD	-	1	Enquire
13	80808500	HARNESS FRAME ASSEMBLY	80808500 HARNESS FRAME ASSEMBLY Applicable for GD	-	1	Enquire
14	65891000	LH AIR VENT SURROUND	65891000 LH AIR VENT SURROUND Applicable for GD	-	1	Enquire
14	65018200	RH Air Outlet Plate LHD ARRIVING SOON	65018200 RH Air Outlet Plate LHD Not for GD ARRIVING SOON	-	1	Enquire
14	65891100	RH AIR VENT SURROUND	65891100 RH AIR VENT SURROUND Applicable for GD	-	1	Enquire
14	65018300	LH Air Outlet Plate LHD ARRIVING SOON	65018300 LH Air Outlet Plate LHD Not for GD ARRIVING SOON	-	1	Enquire
15	82462700	WINDSCREEN AIR FIXING PLATE TRIM PANEL	82462700 WINDSCREEN AIR FIXING PLATE TRIM PANEL Leather; Applicable for GD	-	1	Enquire
15	82462800	WINDSCREEN AIR FIXING PLATE TRIM PANEL	82462800 WINDSCREEN AIR FIXING PLATE TRIM PANEL Alcantara; Applicable for GD	-	1	Enquire
15	81024300	WINDSCREEN AIR FIXING PLATE TRIM PANEL	81024300 WINDSCREEN AIR FIXING PLATE TRIM PANEL Leather; Not for GD	-	1	Enquire
15	81024400	WINDSCREEN AIR FIXING PLATE TRIM PANEL	81024400 WINDSCREEN AIR FIXING PLATE TRIM PANEL Alcantara; Not for GD	-	1	Enquire
15	82462600	WINDSCREEN AIR FIXING PLATE TRIM PANEL	82462600 WINDSCREEN AIR FIXING PLATE TRIM PANEL Standard; Applicable for GD	-	1	Enquire
15	81024500	WINDSCREEN AIR FIXING PLATE TRIM PANEL	81024500 WINDSCREEN AIR FIXING PLATE TRIM PANEL Standard; Not for GD	-	1	Enquire
16	80760000	BINNACLE	80760000 BINNACLE Leather	-	1	Enquire
16	80760512	DASH BOARD -Alcantara-	80760512 DASH BOARD -Alcantara- Alcantara	-	1	Enquire
16	69943212	DASH BOARD -Standard-	69943212 DASH BOARD -Standard- Standard	-	1	Enquire
17	81201800	UPPER CENTRAL VENT PANEL	81201800 UPPER CENTRAL VENT PANEL Composite	-	1	Enquire
17	82073100	UPPER CENTRAL VELA	82073100 UPPER CENTRAL VELA iPod; Applicable for Spider 16M	-	1	Enquire
19	82054100	LIMITED SPIDER LABEL	82054100 LIMITED SPIDER LABEL Applicable for Spider 16M	-	1	Enquire
19	80674800	430 SCUDERIA LABEL	80674800 430 SCUDERIA LABEL Not for Spider 16M	-	1	Enquire
19	81012200	DEDICATION PLAQUE	81012200 DEDICATION PLAQUE Not for Spider 16M	-	1	Enquire
20	68927600	SCREW	68927600 SCREW Black	-	4	Enquire
20	64214100	SCREW	64214100 SCREW Self-locking	-	4	Enquire
21	68662200	RADIO FRAME	68662200 RADIO FRAME	-	1	Enquire
22	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	4	Enquire
23	68134900	RH LATERAL AIR VENT GASKET	68134900 RH LATERAL AIR VENT GASKET	-	1	Enquire
23	68135000	LH LATERAL AIR VENT GASKET	68135000 LH LATERAL AIR VENT GASKET	-	1	Enquire
24	62769800	WASHER	62769800 WASHER	-	4	Enquire
25	67584200	WASHER	67584200 WASHER Th. 0.8 mm	-	4	Enquire
26	80337600	COVER	80337600 COVER Standard	-	1	Enquire
26	80759112	COVER -Leather-	80759112 COVER -Leather- Leather	-	1	Enquire
27	80338300	FRAME	80338300 FRAME Standard	-	1	Enquire
27	80759300	FRAME	80759300 FRAME Leather	-	1	Enquire
28	81612700	SCREW	81612700 SCREW	-	5	Enquire
29	81360700	WASHER	81360700 WASHER	-	5	Enquire
30	69140100	DEDICATION PLAQUE MOUNTING	69140100 DEDICATION PLAQUE MOUNTING	-	1	Enquire
31	13270270	SCREW -Valid for USA and CDN-	13270270 SCREW -Valid for USA and CDN-	-	6	Enquire
32	10403180	RING	10403180 RING	-	1	Enquire
