Ferrari 430 Scuderia - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
80499500 FRONT UNDERBODY GUARD Enquire To Order
Photo Part No Description Price (each) Stock
198642 CENTRE CONSOLE REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
80896900 REAR UNDERBODY GUARD Enquire To Order
Photo Part No Description Price (each) Stock
80255800 RH FRONT GRAVEL GUARD Enquire To Order
80255900 LH Wheel Front Gravel Guard Enquire To Order
Photo Part No Description Price (each) Stock
67957400 RH FRONT WHEELHOUSE EXTERNAL FAIRING Enquire To Order
67964900 LH FRONT WHEELHOUSE EXTERNAL FAIRING Enquire To Order
Photo Part No Description Price (each) Stock
65522300 RH WHEELHOUSE COVER PLATE Enquire To Order
65522400 LH WHEELHOUSE COVER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
68036400 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
81131100 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67957300 RH REAR WHEELHOUSE Enquire To Order
67957200 LH REAR WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
80256000 RH REAR WHEEL GRAVEL GUARD Enquire To Order
80256100 LH REAR WHEEL GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
63965800 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
68034900 RH GASKET Enquire To Order
80780000 LH GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66121400 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62766300 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13276477 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197777 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977887 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68700800 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
13276477 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197777 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13141587 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
210246 SCREW Enquire To Order
205370 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
68023300 CENTRAL UNDERBODY GUARD Enquire To Order
Photo Part No Description Price (each) Stock
12647021 WASHER Enquire To Order
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
81061600 OIL FILTER ACCESS HATCH Enquire To Order
Photo Part No Description Price (each) Stock
80961300 RH. WHEELHOUSE SHIELD Enquire To Order
81284300 LH. WHEELHOUSE SHIELD Enquire To Order
View All

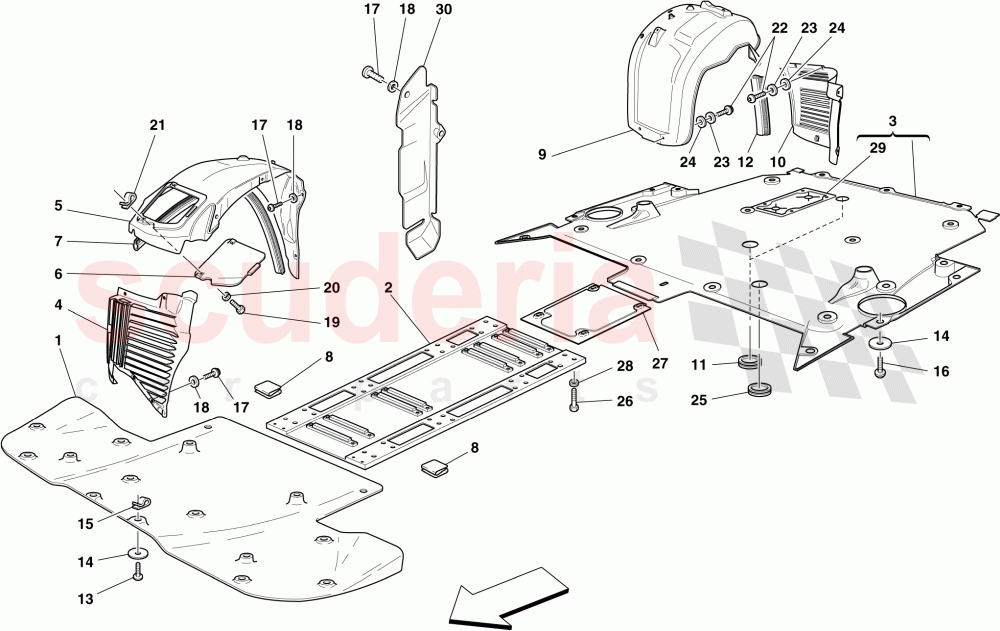

FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 80499500
FRONT UNDERBODY GUARD 		- 1 Enquire
2 198642
CENTRE CONSOLE REINFORCEMENT 		- 1 Enquire
3 80896900
REAR UNDERBODY GUARD 		- 1 Enquire
4 80255800
RH FRONT GRAVEL GUARD 		- 1 Enquire
4 80255900
LH Wheel Front Gravel Guard 		- 1 Enquire
5 67957400
RH FRONT WHEELHOUSE EXTERNAL FAIRING 		- 1 Enquire
5 67964900
LH FRONT WHEELHOUSE EXTERNAL FAIRING 		- 1 Enquire
6 65522300
RH WHEELHOUSE COVER PLATE 		- 1 Enquire
6 65522400
LH WHEELHOUSE COVER PLATE 		- 1 Enquire
7 68036400
GASKET 		- 2 Enquire
8 81131100
BRACKET
Applicable from Ass. No. 72116 up to Ass. No. 77234 		- 2 Enquire
9 67957300
RH REAR WHEELHOUSE
Front part 		- 1 Enquire
9 67957200
LH REAR WHEELHOUSE
Front part 		- 1 Enquire
10 80256000
RH REAR WHEEL GRAVEL GUARD 		- 1 Enquire
10 80256100
LH REAR WHEEL GRAVEL GUARD 		- 1 Enquire
11 63965800
PLUG 		- 2 Enquire
12 68034900
RH GASKET 		- 1 Enquire
12 80780000
LH GASKET 		- 1 Enquire
13 10902424
SCREW 		- 16 Enquire
14 66121400
WASHER 		- 34 Enquire
15 62766300
CLIP 		- 6 Enquire
16 10902424
SCREW 		- 23 Enquire
17 13276477
SCREW 		- 12 Enquire
18 11197777
WASHER 		- 12 Enquire
19 10977887
SCREW 		- 4 Enquire
20 62769800
WASHER 		- 4 Enquire
21 68700800
CLIP 		- 4 Enquire
22 13276477
SCREW 		- 18 Enquire
23 11197777
WASHER 		- 18 Enquire
24 12643724
WASHER
6.45 X 18 X 1.5 		- 18 Enquire
25 13141587
PROTECTIVE CAP 		- 1 Enquire
26 210246
SCREW
M8 X 25 		- 32 Enquire
26 205370
SCREW
M6 X 25 		- 16 Enquire
27 68023300
CENTRAL UNDERBODY GUARD 		- 1 Enquire
28 12647021
WASHER
8.45 X 20 X 2 		- 32 Enquire
28 12639724
WASHER
6.45 X 11 X 1 		- 16 Enquire
29 81061600
OIL FILTER ACCESS HATCH 		- 1 Enquire
30 80961300
RH. WHEELHOUSE SHIELD
Not for GD 		- 1 Enquire
30 81284300
LH. WHEELHOUSE SHIELD
Applicable for GD 		- 1 Enquire
