FRONT SUSPENSION - WISHBONES of Ferrari Ferrari 360 Challenge (2000)

View All

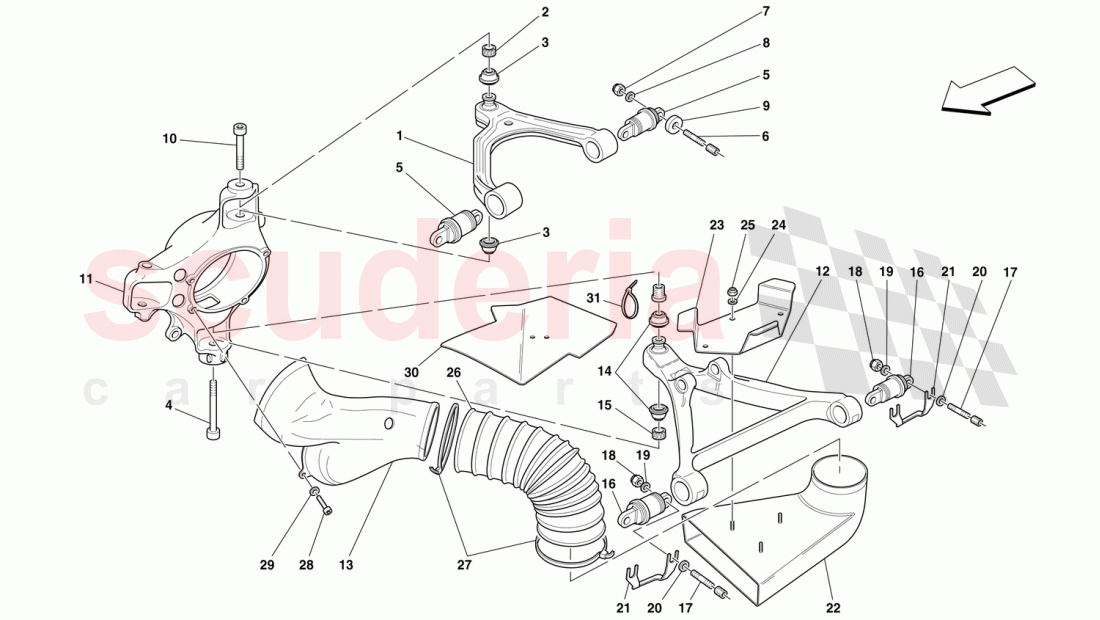

Ferrari 360 Challenge (2000) - FRONT SUSPENSION - WISHBONES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	200945	Upper Suspension Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179555	COMPENSATOR RING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171848	Rubber Boot and Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181598	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256105	FLANBLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181458	THREADED BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12628904	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179556	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181558	R.H. FRONT STEERING KNUCKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192492	LEVA SOSPENSIONE INF ANT DX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181473	R.H. AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171847	Rubber Boot And Clip	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	179554	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329184	FLANBLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181457	THREADED BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182924	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169097	SPACER Th. 1mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181475	R.H. AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181477	AIR INTAKE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183479	AIR INTAKE CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

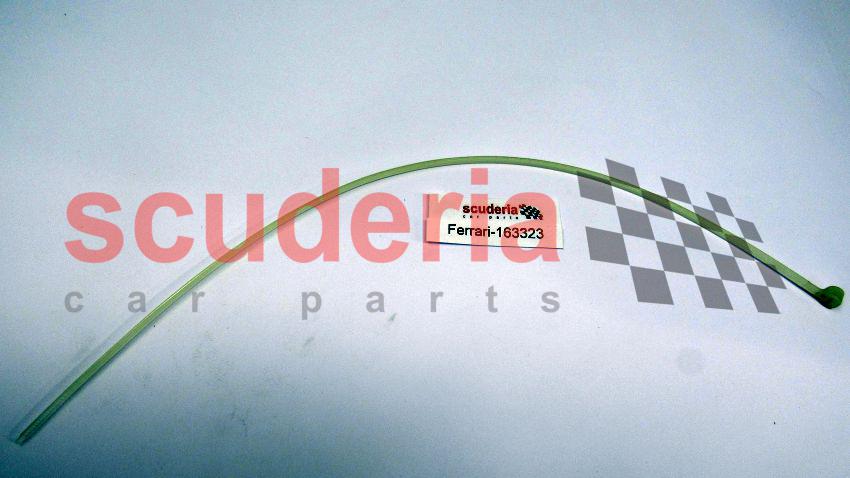

	163323	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183868	R.H. AIR DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	183869	L.H. AIR DEFLECTOR	183869 L.H. AIR DEFLECTOR	-	1	Enquire
-	169100	SPACER Th. 4mm	169100 SPACER Th. 4mm Possible fitting	-	4	Enquire
-	181476	L.H. AIR INTAKE	181476 L.H. AIR INTAKE	-	1	Enquire
-	169098	SPACER Th. 2mm	169098 SPACER Th. 2mm Possible fitting	-	4	Enquire
-	169099	SPACER Th. 3mm	169099 SPACER Th. 3mm Possible fitting	-	4	Enquire
-	181474	L.H. AIR INTAKE	181474 L.H. AIR INTAKE	-	1	Enquire
-	182884	L.H. FRONT STEERING KNUCKLE	182884 L.H. FRONT STEERING KNUCKLE	-	1	Enquire
1	200945	Upper Suspension Lever	200945 Upper Suspension Lever	-	2	Enquire
2	179555	COMPENSATOR RING BUSHING	179555 COMPENSATOR RING BUSHING	-	2	Enquire
3	171848	Rubber Boot and Clip	171848 Rubber Boot and Clip	-	4	Enquire
4	181598	SCREW	181598 SCREW	-	2	Enquire
5	256105	FLANBLOC	256105 FLANBLOC	-	4	Enquire
6	181458	THREADED BAR	181458 THREADED BAR	-	8	Enquire
7	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
8	14496524	WASHER	14496524 WASHER	-	8	Enquire
9	12628904	WASHER	12628904 WASHER	-	8	Enquire
10	179556	SCREW	179556 SCREW	-	2	Enquire
11	181558	R.H. FRONT STEERING KNUCKLE	181558 R.H. FRONT STEERING KNUCKLE	-	1	Enquire
12	192492	LEVA SOSPENSIONE INF ANT DX	192492 LEVA SOSPENSIONE INF ANT DX	-	2	Enquire
13	181473	R.H. AIR INTAKE	181473 R.H. AIR INTAKE	-	1	Enquire
14	171847	Rubber Boot And Clip ARRIVING SOON	171847 Rubber Boot And Clip ARRIVING SOON	-	4	Enquire
15	179554	COMPENSATOR RING	179554 COMPENSATOR RING	-	2	Enquire
16	329184	FLANBLOC	329184 FLANBLOC	-	4	Enquire
17	181457	THREADED BAR	181457 THREADED BAR	-	8	Enquire
18	12574521	Nyloc Nut	12574521 Nyloc Nut	-	8	Enquire
19	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
20	182924	SPACER	182924 SPACER	-	8	Enquire
21	169097	SPACER Th. 1mm	169097 SPACER Th. 1mm	-	4	Enquire
22	181475	R.H. AIR INTAKE	181475 R.H. AIR INTAKE	-	1	Enquire
23	181477	AIR INTAKE SUPPORT	181477 AIR INTAKE SUPPORT	-	2	Enquire
24	62769800	WASHER	62769800 WASHER	-	6	Enquire
25	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	6	Enquire
26	183479	AIR INTAKE CONNECTION PIPE	183479 AIR INTAKE CONNECTION PIPE	-	2	Enquire
27	163323	Clamp	163323 Clamp	-	4	Enquire
28	14305024	SCREW	14305024 SCREW	-	4	Enquire
29	10519424	WASHER	10519424 WASHER	-	4	Enquire
30	183868	R.H. AIR DEFLECTOR	183868 R.H. AIR DEFLECTOR	-	1	Enquire
31	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
32	13582271	INSERT	13582271 INSERT	-	8	Enquire
