Steering Column

Ferrari 360 Challenge (2000)

Find Your Part

Ferrari 360 Challenge (2000) - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
182543 STEERING WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
111189 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10615274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
101648 Ring nut Enquire To Order
Photo Part No Description Price (each) Stock
10730921 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
157639 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
11021111 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
169471 SPIRAL CONTACT Enquire To Order
Photo Part No Description Price (each) Stock
65164200 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
182537 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
178993 UNHOOK DEVIATION ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
176360 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
11001424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
171539 ROLLER BEARING Enquire To Order
Photo Part No Description Price (each) Stock
171526 COLUMN UPPER SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
171540 BALL BEARING Enquire To Order
Photo Part No Description Price (each) Stock
177645 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16132314 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11067376 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
171507 COLUMN LOWER SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
171520 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
171528 STEERING CARDAN SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977887 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
182959 F1 GEARBOX CONTROL LEVERS ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
184739 COUPLE LEVERS Enquire To Order
Photo Part No Description Price (each) Stock
13308977 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12606673 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
171505 STEERING COLUMN SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
171516 COLUMN SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
180632 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
12625224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
171535 TRIMMED LEVER Enquire To Order
Photo Part No Description Price (each) Stock
171503 ARM PIN Enquire To Order
Photo Part No Description Price (each) Stock
10336630 PIN Enquire To Order
Photo Part No Description Price (each) Stock
65583200 COLUMN COVER Enquire To Order
Photo Part No Description Price (each) Stock
65310600 COLUMN LOWER COVER Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
15960507 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13274611 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
157638 STEERING WHEEL HUB Enquire To Order
Photo Part No Description Price (each) Stock
10615274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13271914 SCREW -Valid for "60°anniversario"- Enquire To Order
Photo Part No Description Price (each) Stock
10397680 CABLE GROMMET Enquire To Order
View All

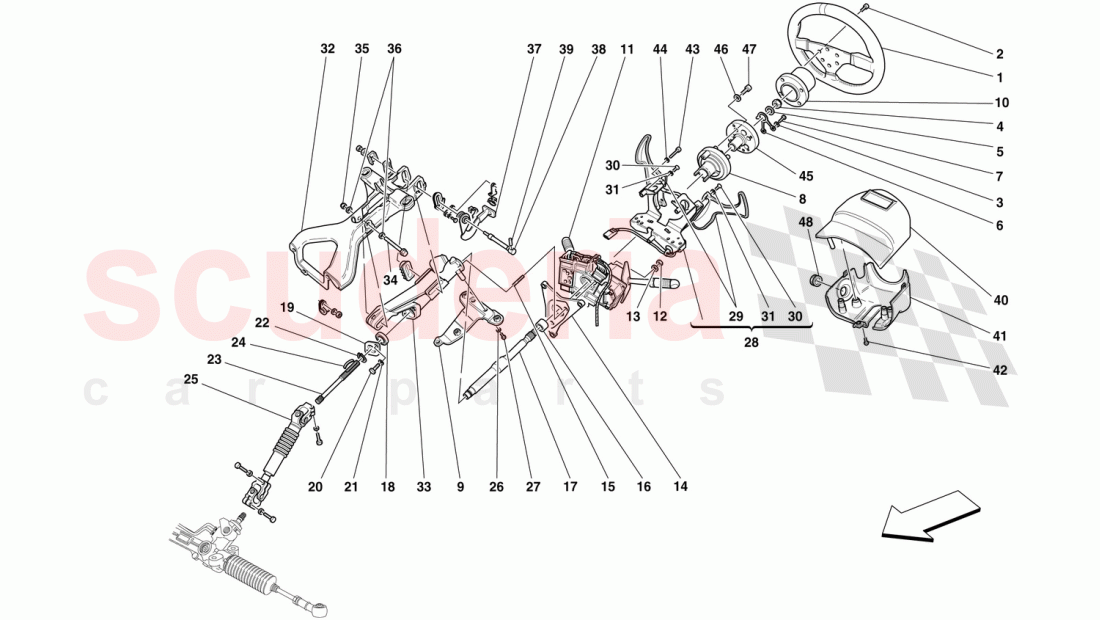

STEERING COLUMN of Ferrari Ferrari 360 Challenge (2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 183993
LOWER COLUMN AXLE
Valid from car Ass. Nr. 39406 		- 1 Enquire
- 183994
UPPER SHAFT FOR STEERING
Valid from car Ass. Nr. 39406 		- 1 Enquire
1 182543
STEERING WHEEL 		- 1 Enquire
2 111189
SCREW 		- 6 Enquire
3 10615274
WASHER 		- 2 Enquire
4 101648
Ring nut 		- 1 Enquire
5 10730921
WASHER 		- 1 Enquire
6 157639
SPRING 		- 1 Enquire
7 11021111
SCREW 		- 2 Enquire
8 169471
SPIRAL CONTACT 		- 1 Enquire
9 65164200
BRACKET 		- 1 Enquire
10 182537
SPACER 		- 1 Enquire
11 178993
UNHOOK DEVIATION ASSEMBLY 		- 1 Enquire
12 15896470
NUT 		- 2 Enquire
13 12604178
Washer 		- 2 Enquire
14 176360
BRACKET 		- 1 Enquire
15 11001424
STUD BOLT 		- 2 Enquire
16 171539
ROLLER BEARING 		- 1 Enquire
17 171526
COLUMN UPPER SHAFT
Valid till car Ass. Nr. 39405 		- 1 Enquire
18 171540
BALL BEARING 		- 1 Enquire
19 177645
PLATE 		- 1 Enquire
20 16132314
SCREW 		- 2 Enquire
21 11181874
WASHER 		- 2 Enquire
22 11067376
SEEGER RING 		- 1 Enquire
23 171507
COLUMN LOWER SHAFT
Valid till car Ass. Nr. 39405 		- 1 Enquire
24 171520
SPRING
Valid till car Ass. Nr. 39405 		- 1 Enquire
25 171528
STEERING CARDAN SHAFT 		- 1 Enquire
26 62769800
WASHER 		- 3 Enquire
27 10977887
SCREW 		- 3 Enquire
28 182959
F1 GEARBOX CONTROL LEVERS ASSEMBLY
ASSEMBLY 		- 1 Enquire
29 184739
COUPLE LEVERS 		- 1 Enquire
30 13308977
SCREW 		- 4 Enquire
31 12606673
WASHER 		- 4 Enquire
32 171505
STEERING COLUMN SUPPORT BRACKET
BRACKET 		- 1 Enquire
33 171516
COLUMN SUPPORT 		- 1 Enquire
34 180632
SCREW 		- 1 Enquire
35 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 1 Enquire
36 12625224
WASHER 		- 2 Enquire
37 171535
TRIMMED LEVER 		- 1 Enquire
38 171503
ARM PIN 		- 1 Enquire
39 10336630
PIN 		- 1 Enquire
40 65583200
COLUMN COVER 		- 1 Enquire
41 65310600
COLUMN LOWER COVER
ARRIVING SOON 		- 1 Enquire
42 15960507
SCREW 		- 2 Enquire
43 13274611
SCREW 		- 3 Enquire
44 12604178
Washer 		- 3 Enquire
45 157638
STEERING WHEEL HUB 		- 1 Enquire
46 10615274
WASHER 		- 3 Enquire
47 13271914
SCREW -Valid for "60°anniversario"- 		- 3 Enquire
48 10397680
CABLE GROMMET 		- 1 Enquire
49 183995
RING NUT
Valid from car Ass. Nr. 39406 		- 1 Enquire
50 192229
HEXAGONAL SCREW 		- 3 Enquire
51 192230
WASHER 		- 3 Enquire
