GLASS WASHER AND HORNS of Ferrari Ferrari 348 (2.7 Motronic)

View All

Ferrari 348 (2.7 Motronic) - GLASS WASHER AND HORNS

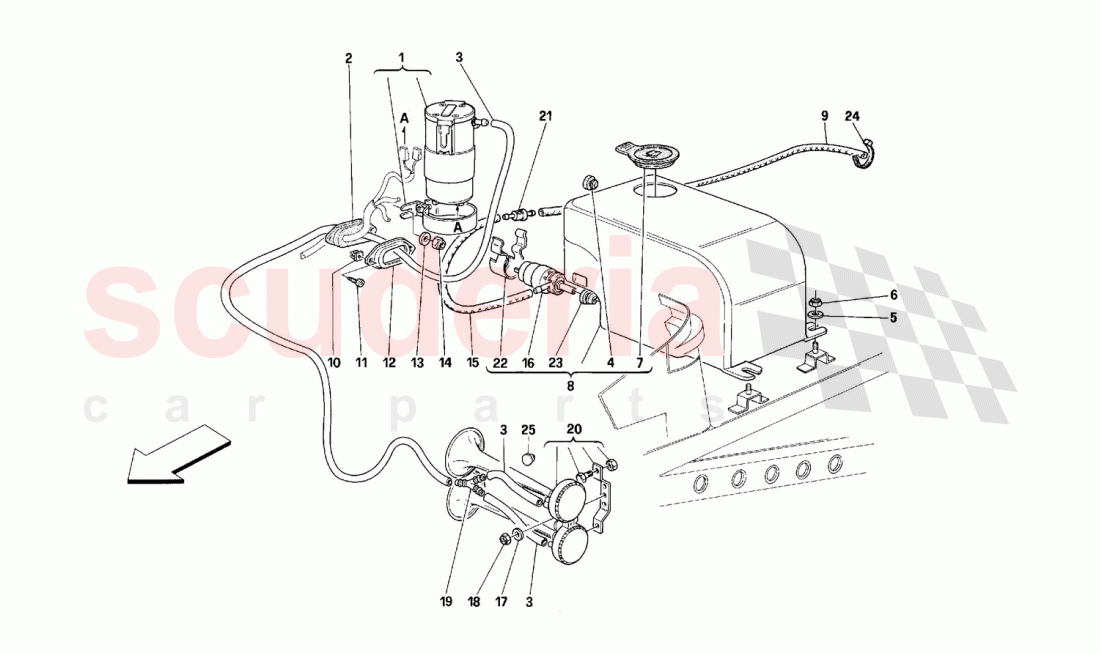

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	225757	COMPLETE HORN COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154759	TIGHTENING GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142200	CONNECTION FROM COMPRESSOR TO HORNS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63291000	CAP FOR GLASS WASHER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63291100	GLASS WASHER BAG PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62536400	COMPLETE WINDSHIELD WIPER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62834400	PIPE FROM VALVE TO UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14211686	Screw block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15517201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139943	Gasket protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62829000	PIPE FROM PUMP TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61535400	Pump for water reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741100	3 WAYS UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189428	ELECTRO PNEUMATIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50332402	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63290800	PUMP FASTENING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63290900	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139521	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	162304	ELECTRO PNEUMATIC HORN	162304 ELECTRO PNEUMATIC HORN Valid for CH	-	1	Enquire
1	225757	COMPLETE HORN COMPRESSOR	225757 COMPLETE HORN COMPRESSOR HORN-COMPRESSOR	-	1	Enquire
2	154759	TIGHTENING GASKET	154759 TIGHTENING GASKET	-	1	Enquire
3	142200	CONNECTION FROM COMPRESSOR TO HORNS	142200 CONNECTION FROM COMPRESSOR TO HORNS COMPRESSOR TO HORNS	-	1	Enquire
4	63291000	CAP FOR GLASS WASHER BAG	63291000 CAP FOR GLASS WASHER BAG	-	1	Enquire
5	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	3	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
7	63291100	GLASS WASHER BAG PLUG	63291100 GLASS WASHER BAG PLUG	-	1	Enquire
8	62536400	COMPLETE WINDSHIELD WIPER CONTAINER	62536400 COMPLETE WINDSHIELD WIPER CONTAINER CONTAINER	-	1	Enquire
9	62834400	PIPE FROM VALVE TO UNION	62834400 PIPE FROM VALVE TO UNION	-	1	Enquire
10	14211686	Screw block	14211686 Screw block	-	2	Enquire
11	15517201	SCREW	15517201 SCREW	-	2	Enquire
12	139943	Gasket protection	139943 Gasket protection	-	1	Enquire
13	84653800	WASHER	84653800 WASHER	-	2	Enquire
14	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
15	62829000	PIPE FROM PUMP TO VALVE	62829000 PIPE FROM PUMP TO VALVE	-	1	Enquire
16	61535400	Pump for water reservoir	61535400 Pump for water reservoir	-	1	Enquire
17	12643724	WASHER	12643724 WASHER	-	1	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
19	60741100	3 WAYS UNION	60741100 3 WAYS UNION	-	1	Enquire
20	189428	ELECTRO PNEUMATIC HORN	189428 ELECTRO PNEUMATIC HORN Not for CH	-	1	Enquire
21	50332402	NON-RETURN VALVE	50332402 NON-RETURN VALVE	-	1	Enquire
22	63290800	PUMP FASTENING SPRING	63290800 PUMP FASTENING SPRING	-	1	Enquire
23	63290900	RUBBER BUSHING	63290900 RUBBER BUSHING	-	1	Enquire
24	10815787	CLAMP	10815787 CLAMP	-	3	Enquire
25	139521	PLUG	139521 PLUG	-	2	Enquire
