DOORS - GLASS LIFTING DEVICE of Ferrari Ferrari 348 (2.7 Motronic)

View All

Ferrari 348 (2.7 Motronic) - DOORS - GLASS LIFTING DEVICE

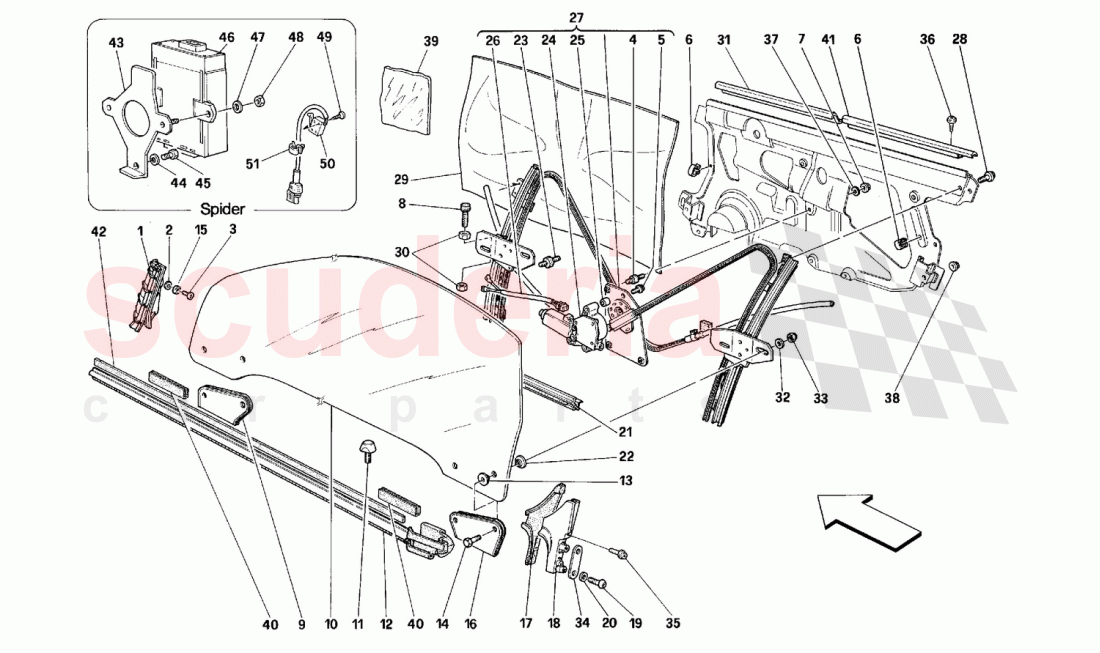

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62122800	L.H. FRONT GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276211	SCREW M6 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62008600	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63301800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60123502	PASSENGER SIDE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62008400	GLASS STOP RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62106100	GLASS FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62104400	L.H. DOOR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63238800	LOWER RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62213200	LH DOOR BELT HEIGHT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62106600	OUTER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62106300	GLASS REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62213000	LH DOOR REAR ANGULAR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62212100	L.H. DOOR REAR ANGLE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63314400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62153400	L.H. GLASS INNER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62106700	INNER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62211900	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62302200	L.H. GLASS LIFTING MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63301700	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63301900	ELECTRIC WIRING FOR MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62107300	COMPLETE L.H. GLASS LIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836371	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63000900	WATER PROTECTION CLOTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63013600	ANGLE PIECE FOR GLASS SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65055800	L.H. SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271617	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687970	VITE -Non piÂ fornito- -Sostituito dal 15687909-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63994800	DOOR HANDLE WATER PROTECTION CLOTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62106500	LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63644300	ANGLE PIECE FOR LH REAR GLASS SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63012900	BI ADHESIVE FOR GASKET FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154770	ELECTRIC BOARD FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154769	GLASS LIFTING MOTOR ELECTRIC BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15908506	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154762	MICRO SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155907	SPRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63641700	ANGLE PIECE FOR RH REAR GLASS SCRAPER	63641700 ANGLE PIECE FOR RH REAR GLASS SCRAPER SCRAPER -Valid for Spider	-	1	Enquire
-	65055800	L.H. SMALL PLATE	65055800 L.H. SMALL PLATE	-	1	Enquire
-	63645300	COMPLETE L.H. GLASS LIFT	63645300 COMPLETE L.H. GLASS LIFT Valid for Spider	-	1	Enquire
-	62107200	COMPLETE R.H. GLASS LIFT	62107200 COMPLETE R.H. GLASS LIFT Not for Spider	-	1	Enquire
-	63645200	COMPLETE R.H. GLASS LIFT	63645200 COMPLETE R.H. GLASS LIFT Valid for Spider	-	1	Enquire
-	62302100	R.H. GLASS LIFTING MOTOR	62302100 R.H. GLASS LIFTING MOTOR	-	1	Enquire
-	63641600	L.H. GLASS INNER GASKET	63641600 L.H. GLASS INNER GASKET Valid for Spider	-	1	Enquire
-	62153300	R.H. GLASS INNER GASKET	62153300 R.H. GLASS INNER GASKET Not for Spider	-	1	Enquire
-	63641500	R.H. GLASS INNER GASKET	63641500 R.H. GLASS INNER GASKET Valid for Spider	-	1	Enquire
-	62212900	RH DOOR REAR ANGULAR GASKET	62212900 RH DOOR REAR ANGULAR GASKET GASKET	-	1	Enquire
-	62212000	R.H. DOOR REAR ANGLE PIECE	62212000 R.H. DOOR REAR ANGLE PIECE	-	1	Enquire
-	62213100	RH DOOR BELT HEIGHT GASKET	62213100 RH DOOR BELT HEIGHT GASKET GASKET	-	1	Enquire
-	62104300	R.H. DOOR GLASS	62104300 R.H. DOOR GLASS Not for Spider	-	1	Enquire
-	64250900	R.H. DOOR GLASS	64250900 R.H. DOOR GLASS Valid for Spider	-	1	Enquire
-	64251000	L.H. DOOR GLASS	64251000 L.H. DOOR GLASS Valid for Spider	-	1	Enquire
-	62122700	R.H. FRONT GLASS GUIDE	62122700 R.H. FRONT GLASS GUIDE	-	1	Enquire
1	62122800	L.H. FRONT GLASS GUIDE	62122800 L.H. FRONT GLASS GUIDE	-	1	Enquire
2	12646604	WASHER	12646604 WASHER	-	2	Enquire
3	13276211	SCREW M6 X 16	13276211 SCREW M6 X 16	-	2	Enquire
4	62008600	RUBBER PAD	62008600 RUBBER PAD	-	6	Enquire
5	63301800	SCREW	63301800 SCREW	-	6	Enquire
6	60123502	PASSENGER SIDE CLIP	60123502 PASSENGER SIDE CLIP	-	2	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
8	62008400	GLASS STOP RUBBER PAD	62008400 GLASS STOP RUBBER PAD	-	4	Enquire
9	62106100	GLASS FRONT BRACKET	62106100 GLASS FRONT BRACKET	-	2	Enquire
10	62104400	L.H. DOOR GLASS	62104400 L.H. DOOR GLASS Not for Spider	-	1	Enquire
11	63238800	LOWER RUBBER PAD	63238800 LOWER RUBBER PAD	-	2	Enquire
12	62213200	LH DOOR BELT HEIGHT GASKET	62213200 LH DOOR BELT HEIGHT GASKET GASKET	-	1	Enquire
13	62106600	OUTER BUSHING	62106600 OUTER BUSHING	-	8	Enquire
14	10902424	SCREW	10902424 SCREW	-	8	Enquire
15	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
16	62106300	GLASS REAR BRACKET	62106300 GLASS REAR BRACKET	-	2	Enquire
17	62213000	LH DOOR REAR ANGULAR GASKET	62213000 LH DOOR REAR ANGULAR GASKET GASKET	-	1	Enquire
18	62212100	L.H. DOOR REAR ANGLE PIECE	62212100 L.H. DOOR REAR ANGLE PIECE	-	1	Enquire
19	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	4	Enquire
20	63314400	WASHER	63314400 WASHER	-	4	Enquire
21	62153400	L.H. GLASS INNER GASKET	62153400 L.H. GLASS INNER GASKET Not for Spider	-	1	Enquire
22	62106700	INNER BUSHING	62106700 INNER BUSHING	-	8	Enquire
23	62211900	PAD	62211900 PAD	-	4	Enquire
24	62302200	L.H. GLASS LIFTING MOTOR	62302200 L.H. GLASS LIFTING MOTOR	-	1	Enquire
25	63301700	SPACER	63301700 SPACER	-	6	Enquire
26	63301900	ELECTRIC WIRING FOR MOTOR	63301900 ELECTRIC WIRING FOR MOTOR MOTOR	-	2	Enquire
27	62107300	COMPLETE L.H. GLASS LIFT	62107300 COMPLETE L.H. GLASS LIFT Not for Spider	-	1	Enquire
28	13836371	SCREW	13836371 SCREW	-	4	Enquire
29	63000900	WATER PROTECTION CLOTH	63000900 WATER PROTECTION CLOTH	-	2	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
31	63013600	ANGLE PIECE FOR GLASS SCRAPER	63013600 ANGLE PIECE FOR GLASS SCRAPER SCRAPER	-	4	Enquire
32	12648925	WASHER	12648925 WASHER	-	16	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
34	65055800	L.H. SMALL PLATE	65055800 L.H. SMALL PLATE	-	1	Enquire
35	13271617	SCREW	13271617 SCREW	-	4	Enquire
36	15687970	VITE -Non piÂ fornito- -Sostituito dal 15687909-	15687970 VITE -Non piÂ fornito- -Sostituito dal 15687909-	-	12	Enquire
37	12601374	WASHER	12601374 WASHER	-	6	Enquire
38	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
39	63994800	DOOR HANDLE WATER PROTECTION CLOTH	63994800 DOOR HANDLE WATER PROTECTION CLOTH PROTECTION CLOTH	-	2	Enquire
40	62106500	LOWER GASKET	62106500 LOWER GASKET	-	4	Enquire
41	63644300	ANGLE PIECE FOR LH REAR GLASS SCRAPER	63644300 ANGLE PIECE FOR LH REAR GLASS SCRAPER SCRAPER -Valid for Spider	-	1	Enquire
42	63012900	BI ADHESIVE FOR GASKET FASTENING	63012900 BI ADHESIVE FOR GASKET FASTENING	-	2	Enquire
43	154770	ELECTRIC BOARD FIXING BRACKET	154770 ELECTRIC BOARD FIXING BRACKET Valid for Spider	-	1	Enquire
44	10519424	WASHER	10519424 WASHER Valid for Spider	-	1	Enquire
45	10977524	SCREW	10977524 SCREW Valid for Spider	-	1	Enquire
46	154769	GLASS LIFTING MOTOR ELECTRIC BOARD	154769 GLASS LIFTING MOTOR ELECTRIC BOARD BOARD / Valid for Spider	-	1	Enquire
47	14496324	WASHER	14496324 WASHER Valid for Spider	-	2	Enquire
48	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY Valid for Spider	-	2	Enquire
49	15908506	SCREW	15908506 SCREW Valid for Spider	-	4	Enquire
50	154762	MICRO SWITCH	154762 MICRO SWITCH Valid for Spider	-	2	Enquire
51	155907	SPRING	155907 SPRING Valid for Spider	-	1	Enquire
