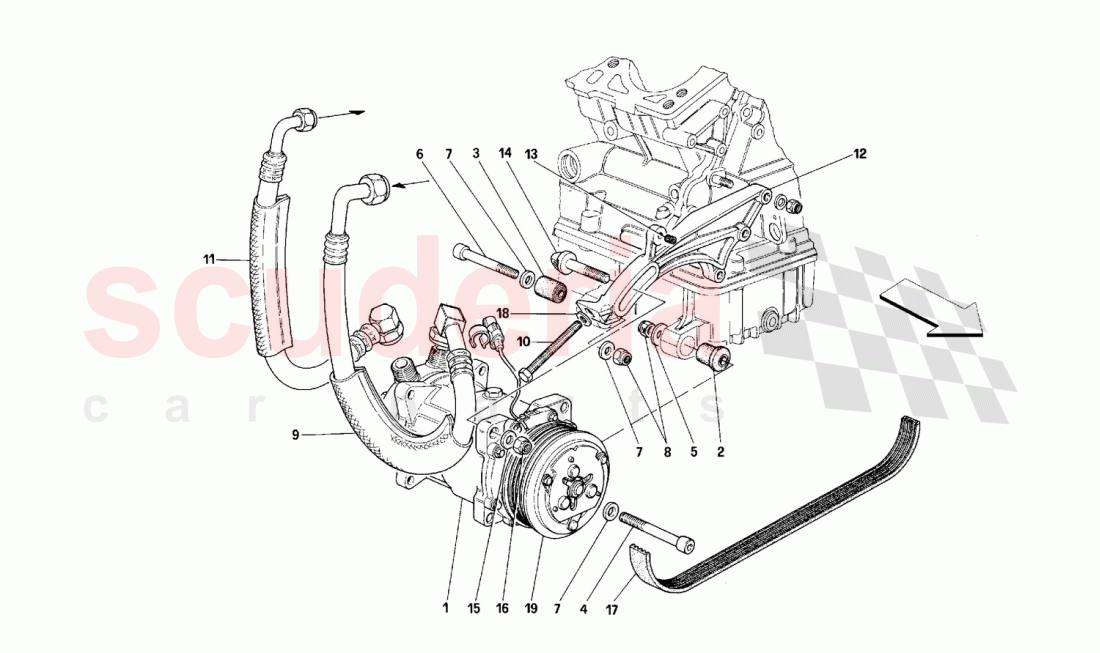

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	157355	COMPRESSOR (SANDEN SD7)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137768	ESTENDBLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135108	ESTENDBLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	62642800	RETURN TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125668	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62642300	DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147639	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139352	THREADED PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	199819	COMPRESSOR CONTROL BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138331	ELECTRO MAGNETIC JOINT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	157355	COMPRESSOR (SANDEN SD7)	157355 COMPRESSOR (SANDEN SD7) (SANKYO SD 709)	-	1	Enquire
2	137768	ESTENDBLOCK	137768 ESTENDBLOCK	-	1	Enquire
3	135108	ESTENDBLOCK	135108 ESTENDBLOCK	-	1	Enquire
4	101632	SCREW	101632 SCREW	-	1	Enquire
5	12626224	WASHER	12626224 WASHER	-	1	Enquire
6	14308121	SCREW	14308121 SCREW	-	1	Enquire
7	13578324	WASHER	13578324 WASHER	-	5	Enquire
8	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
9	62642800	RETURN TUBE	62642800 RETURN TUBE	-	1	Enquire
10	125668	SCREW	125668 SCREW	-	1	Enquire
11	62642300	DELIVERY TUBE	62642300 DELIVERY TUBE	-	1	Enquire
12	147639	BRACKET	147639 BRACKET	-	1	Enquire
13	13525470	THREADED INSERT	13525470 THREADED INSERT	-	1	Enquire
14	139352	THREADED PIN	139352 THREADED PIN	-	1	Enquire
15	128944	WASHER	128944 WASHER	-	1	Enquire
16	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	1	Enquire
17	199819	COMPRESSOR CONTROL BELT	199819 COMPRESSOR CONTROL BELT	-	1	Enquire
18	14496501	WASHER	14496501 WASHER	-	1	Enquire
19	138331	ELECTRO MAGNETIC JOINT	138331 ELECTRO MAGNETIC JOINT	-	1	Enquire
