CYLINDER HEADS - TIMING of Ferrari Ferrari 296 GTS USA

View All

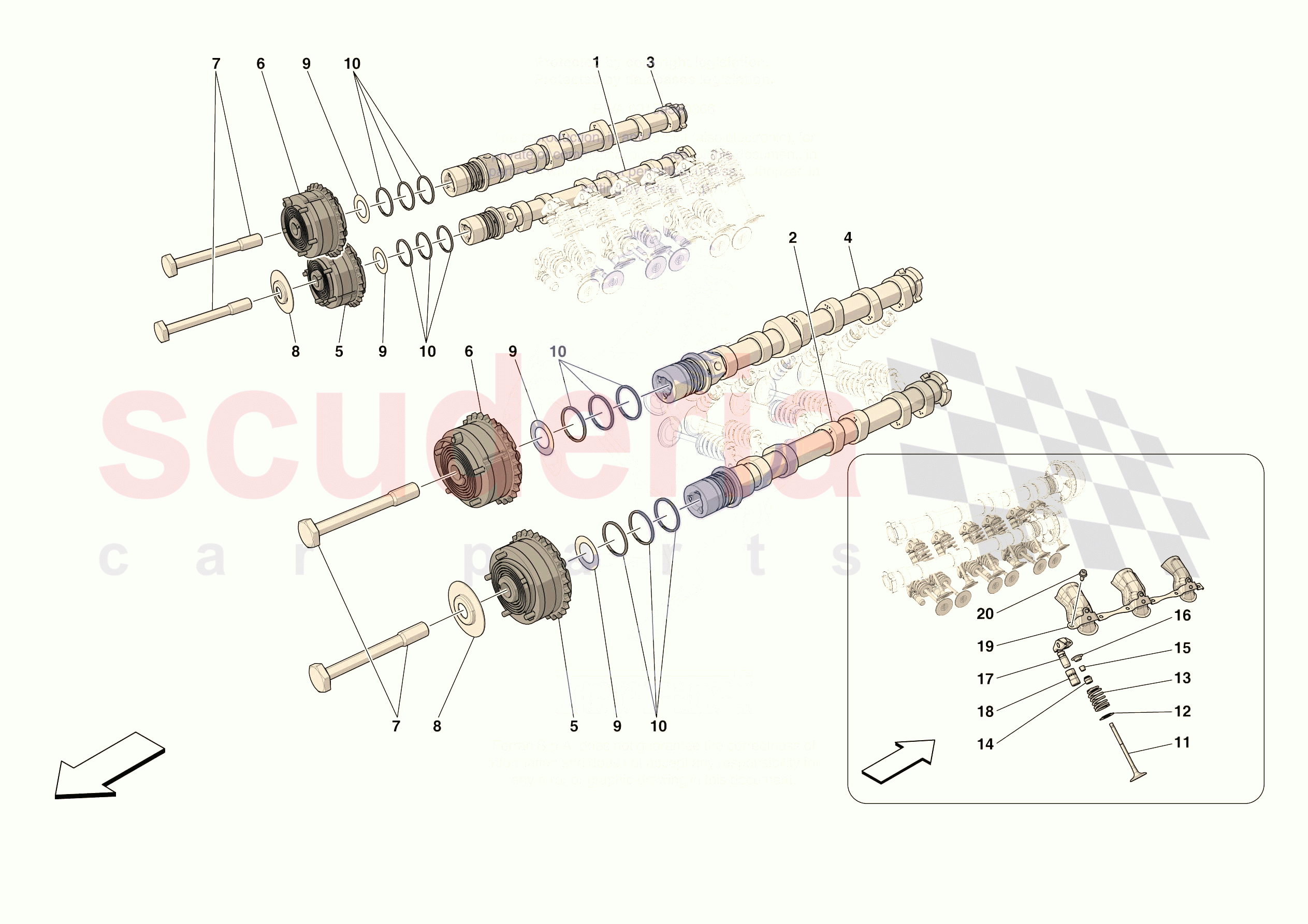

Ferrari 296 GTS USA - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	927969	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	927970	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	961460	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	961461	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795894	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795895	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW HEX HEAD M14 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828771	INTAKE VALVE	Enquire	To Order
	828769	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925694	LOWER VALVE SPRING CAP	Enquire	To Order
	925693	LOWER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821149	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899547	OIL SEAL FOR VALVE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938039	UPPER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	840559	COMPL. FINGER-TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	879354	TAPPET ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	745652	LH CYLINDER BANK COIL SHIELD ASSEMBLY	Enquire	To Order
	745651	RH CYLINDER BANK COIL SHIELD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797723	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	927969	RH INTAKE CAMSHAFT	927969 RH INTAKE CAMSHAFT	-	1	Enquire
0002	927970	LH INTAKE CAMSHAFT	927970 LH INTAKE CAMSHAFT	-	1	Enquire
0003	961460	RH EXHAUST CAMSHAFT	961460 RH EXHAUST CAMSHAFT	-	1	Enquire
0004	961461	LH EXHAUST CAMSHAFT	961461 LH EXHAUST CAMSHAFT	-	1	Enquire
0005	795894	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	795894 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	-	2	Enquire
0006	795895	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	795895 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	-	2	Enquire
0007	254892	SCREW HEX HEAD M14 X 15	254892 SCREW HEX HEAD M14 X 15 M14 X 1.5	-	4	Enquire
0008	296310	SPACER	296310 SPACER	-	2	Enquire
0009	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	-	4	Enquire
0010	246965	O-RING	246965 O-RING Also included in engine gasket set	-	12	Enquire
0011	828771	INTAKE VALVE	828771 INTAKE VALVE	-	12	Enquire
0011	828769	EXHAUST VALVE	828769 EXHAUST VALVE	-	12	Enquire
0012	925694	LOWER VALVE SPRING CAP	925694 LOWER VALVE SPRING CAP	-	12	Enquire
0012	925693	LOWER VALVE SPRING CAP	925693 LOWER VALVE SPRING CAP	-	12	Enquire
0013	821149	SPRING	821149 SPRING Intake	-	24	Enquire
0014	899547	OIL SEAL FOR VALVE SEAL	899547 OIL SEAL FOR VALVE SEAL Also included in engine gasket set	-	24	Enquire
0015	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	24	Enquire
0016	938039	UPPER VALVE SPRING CAP	938039 UPPER VALVE SPRING CAP	-	24	Enquire
0017	840559	COMPL. FINGER-TAPPET	840559 COMPL. FINGER-TAPPET	-	24	Enquire
0018	879354	TAPPET ROLLER BEARING	879354 TAPPET ROLLER BEARING	-	6	Enquire
0019	745652	LH CYLINDER BANK COIL SHIELD ASSEMBLY	745652 LH CYLINDER BANK COIL SHIELD ASSEMBLY	-	1	Enquire
0019	745651	RH CYLINDER BANK COIL SHIELD ASSEMBLY	745651 RH CYLINDER BANK COIL SHIELD ASSEMBLY	-	1	Enquire
0020	797723	SCREW	797723 SCREW M5 X 12	-	12	Enquire
