LIGHTING SYSTEMS of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - LIGHTING SYSTEMS

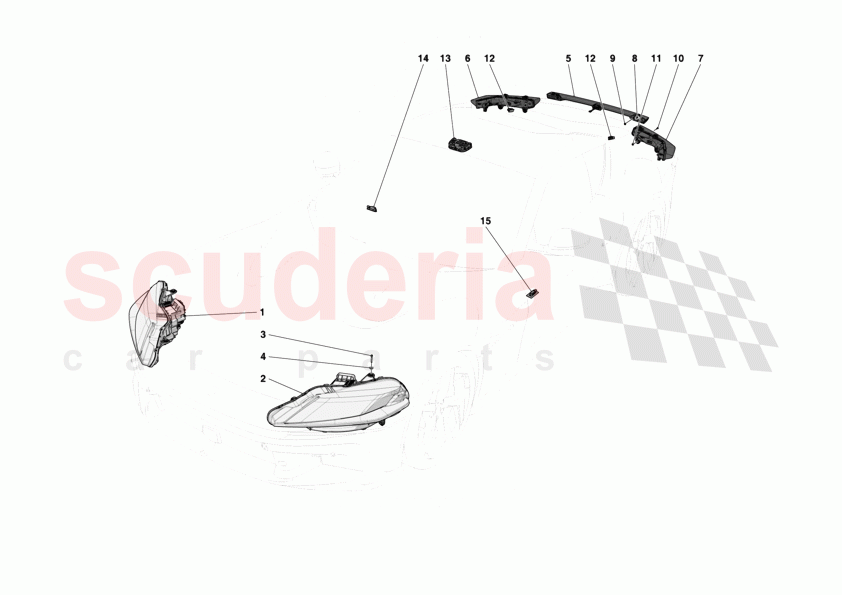

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	774223	PROIETTORE DX BASE	Enquire	To Order
	967007	RH HEADLAMP	Enquire	To Order
	967005	RH HEADLAMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	774222	PROIETTORE SX BASE	Enquire	To Order
	967009	LH HEADLAMP	Enquire	To Order
	967008	LH HEADLAMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	231623	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808395	THIRD BRAKE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774220	RH TAILLIGHT	Enquire	To Order
	977790	RH TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774221	LH TAIL LIGHT	Enquire	To Order
	977793	LH TAIL LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85834000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911975	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	974896	LUGGAGE COMPARTMENT LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941841	PLAFONIERA ANTERIORE A2B	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911487	1LED COURTESY LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318013	LIGHT UNIT 1, LED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	774223	PROIETTORE DX BASE	774223 PROIETTORE DX BASE Not applicable for: USA, CDN, J-GS, GD, WA	-	1	Enquire
1	967007	RH HEADLAMP	967007 RH HEADLAMP Applicable for: J-GS, GD	-	1	Enquire
1	967005	RH HEADLAMP	967005 RH HEADLAMP Applicable for: USA, CDN, WA	-	1	Enquire
1	957519	PROIETTORE DX OPT FBL	957519 PROIETTORE DX OPT FBL Adaptive headlamps; Not applicable for: USA, CDN, J-GS, GD, WA	-	1	Enquire
1	967011	RH HEADLAMP	967011 RH HEADLAMP Adaptive headlamps; Applicable for: J-GS, GD	-	1	Enquire
1	967010	RH HEADLAMP	967010 RH HEADLAMP Adaptive headlamps; Applicable for: USA, CDN, WA	-	1	Enquire
2	774222	PROIETTORE SX BASE	774222 PROIETTORE SX BASE Not applicable for: USA, CDN, J-GS, GD, WA	-	1	Enquire
2	967009	LH HEADLAMP	967009 LH HEADLAMP Applicable for: J-GS, GD	-	1	Enquire
2	967008	LH HEADLAMP	967008 LH HEADLAMP Applicable for: USA, CDN, WA	-	1	Enquire
2	957520	PROIETTORE SX OPT FBL	957520 PROIETTORE SX OPT FBL Adaptive headlamps; Not applicable for: USA, CDN, J-GS, GD, WA	-	1	Enquire
2	967018	LH HEADLAMP	967018 LH HEADLAMP Adaptive headlamps; Applicable for: J-GS, GD	-	1	Enquire
2	967013	LH HEADLAMP	967013 LH HEADLAMP Adaptive headlamps; Applicable for: USA, CDN, WA	-	1	Enquire
3	231623	SCREW	231623 SCREW L. 40 mm	-	8	Enquire
4	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	8	Enquire
5	808395	THIRD BRAKE LIGHT	808395 THIRD BRAKE LIGHT	-	1	Enquire
6	774220	RH TAILLIGHT	774220 RH TAILLIGHT Not applicable for: USA, CDN, WA	-	1	Enquire
6	977790	RH TAILLIGHT	977790 RH TAILLIGHT Applicable for: USA, CDN, WA	-	1	Enquire
7	774221	LH TAIL LIGHT	774221 LH TAIL LIGHT Not applicable for: USA, CDN, WA	-	1	Enquire
7	977793	LH TAIL LIGHT	977793 LH TAIL LIGHT Applicable for: USA, CDN, WA	-	1	Enquire
8	10977924	SCREW	10977924 SCREW M5 X 18	-	2	Enquire
9	14039511	NUT	14039511 NUT	-	4	Enquire
10	85834000	SCREW	85834000 SCREW M5 X 25	-	10	Enquire
11	911975	WASHER	911975 WASHER	-	12	Enquire
12	974896	LUGGAGE COMPARTMENT LIGHT	974896 LUGGAGE COMPARTMENT LIGHT	-	2	Enquire
13	941841	PLAFONIERA ANTERIORE A2B	941841 PLAFONIERA ANTERIORE A2B	-	1	Enquire
14	911487	1LED COURTESY LIGHT	911487 1LED COURTESY LIGHT	-	1	Enquire
15	318013	LIGHT UNIT 1, LED	318013 LIGHT UNIT 1, LED	-	4	Enquire
