REAR SHIELDS of Ferrari Ferrari 12Cilindri

View All

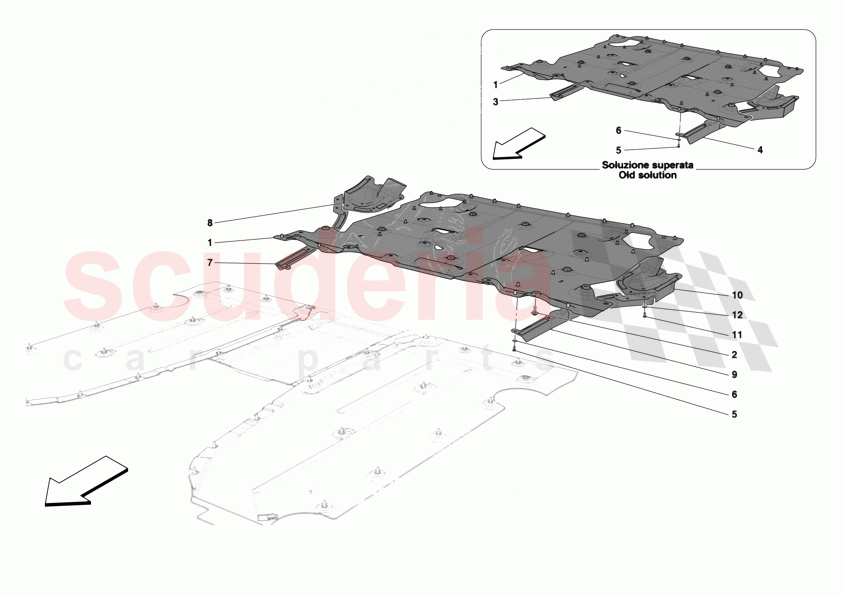

Ferrari 12Cilindri - REAR SHIELDS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	874147	REAR SUBFRAME FLAT UNDERTRAY	Enquire	To Order
	11A9637RP	Wheel Arch Liner - Rear - RH - 675LT	$775.62	To Order

Photo	Part No	Description	Price (each)	Stock
	971623	SCREW	Enquire	To Order
	55042970	VITE DOPPIA RONDELLA IMP. M6X28	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782611	RH REAR DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782612	LH REAR DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW DOME HEAD M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14447078	WASHER	Enquire	To Order
	12643701	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9150RP	Wheel Arch Liner Cover - Rear - RH - 675LT	$28.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9084RP	Bracket - Wheel Arch Liner - Rear - 675LT	$44.13	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM003	RIVET - DIA 5 X 10 - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9983RP	Clip - Rear Wheel Arch Liner	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW DOME HEAD M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14447078	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	874147	REAR SUBFRAME FLAT UNDERTRAY	874147 REAR SUBFRAME FLAT UNDERTRAY Not applicable for: NIRL; Applicable up to Ass. No. 242208	-	1	Enquire
1	11A9637RP	Wheel Arch Liner - Rear - RH - 675LT	11A9637RP Wheel Arch Liner - Rear - RH - 675LT Applicable from Ass. No. 242209	$775.62	1
2	971623	SCREW	971623 SCREW	-	18	Enquire
2	55042970	VITE DOPPIA RONDELLA IMP. M6X28	55042970 VITE DOPPIA RONDELLA IMP. M6X28	-	18	Enquire
3	782611	RH REAR DAM	782611 RH REAR DAM Applicable up to Ass. No. 242892	-	1	Enquire
4	782612	LH REAR DAM	782612 LH REAR DAM Applicable up to Ass. No. 242892	-	1	Enquire
5	85833900	SCREW DOME HEAD M5 X 16	85833900 SCREW DOME HEAD M5 X 16 M5 X 16	-	14	Enquire
6	14447078	WASHER	14447078 WASHER D. 5.50 - 15 X 1	-	20	Enquire
6	12643701	WASHER	12643701 WASHER	-	20	Enquire
7	11A9150RP	Wheel Arch Liner Cover - Rear - RH - 675LT	11A9150RP Wheel Arch Liner Cover - Rear - RH - 675LT For vehicles up to Ass.ly No. 242892 also order RH rear part of dam 55046084 ref. 8, LH rear part of dam 55046082 ref. 10, LH front part of dam 55046081 ref. 9, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893	$28.59	1
8	11A9084RP	Bracket - Wheel Arch Liner - Rear - 675LT	11A9084RP Bracket - Wheel Arch Liner - Rear - 675LT For vehicles up to Ass.ly No. 242892 also order RH front part of dam 55046083 ref. 7, LH rear part of dam 5046082 ref. 10, LH front part of dam 55046081 ref. 9, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893	$44.13	1
9	00RM003	RIVET - DIA 5 X 10 - TORX	00RM003 RIVET - DIA 5 X 10 - TORX For vehicles up to Ass.ly No. 242892 also order LH rear part of dam 55046082 ref. 10, RH rear part of dam 55046084 ref. 8, RH front part of dam 55046083 ref. 7, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893	-	1	Enquire
10	11A9983RP	Clip - Rear Wheel Arch Liner	11A9983RP Clip - Rear Wheel Arch Liner For vehicles up to Ass.ly No. 242892 also order LH front part of dam 55046081 ref. 9, RH rear part of dam 55046084 ref. 8, RH front part of dam 55046083 ref. 7, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893	$2.19	1
11	85833900	SCREW DOME HEAD M5 X 16	85833900 SCREW DOME HEAD M5 X 16 M5 X 16; Applicable from Ass. No. 242893	-	6	Enquire
12	14447078	WASHER	14447078 WASHER D. 5.50 - 15 X 1; Applicable from Ass. No. 242893	-	6	Enquire
