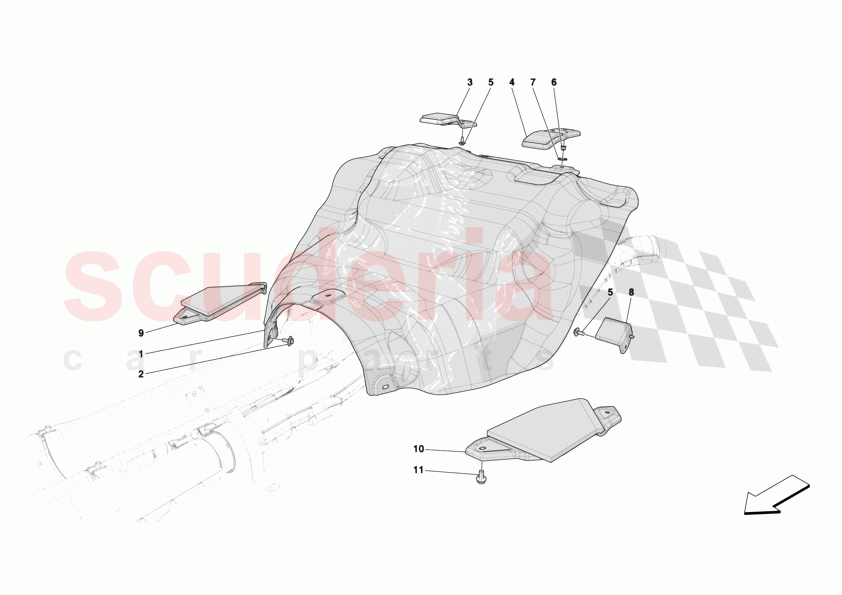

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	887667	RIPARO CALORE SERBATOIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

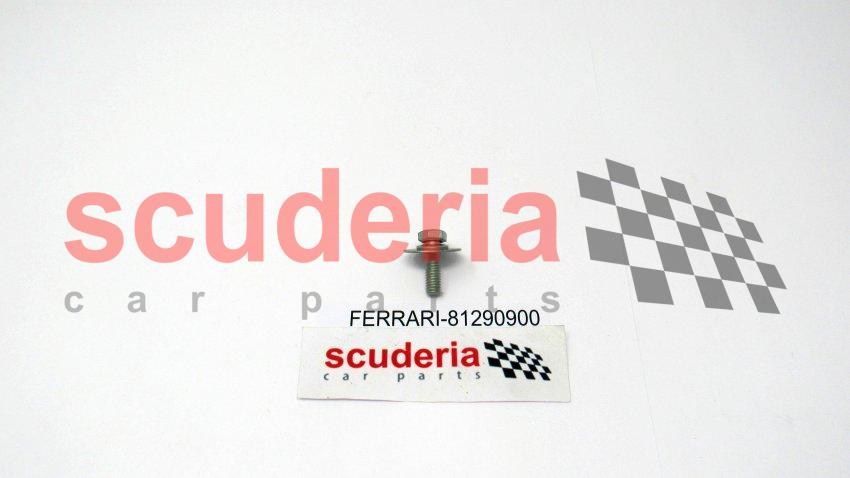

	81290900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774403	COMPL. RH UPPER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	774399	COMPL. LH UPPER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	792394	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228265	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250645	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794712	RANK INSULATION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	944047	COMPL. RH LOWER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	943944	COMPL. LH LOWER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287024	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	887667	RIPARO CALORE SERBATOIO	887667 RIPARO CALORE SERBATOIO	-	1	Enquire
2	81290900	SCREW	81290900 SCREW M6 X 20	-	3	Enquire
3	774403	COMPL. RH UPPER RETAINER	774403 COMPL. RH UPPER RETAINER	-	1	Enquire
4	774399	COMPL. LH UPPER RETAINER	774399 COMPL. LH UPPER RETAINER	-	1	Enquire
5	792394	SCREW	792394 SCREW M6 X 18	-	6	Enquire
6	228265	NUT	228265 NUT	-	2	Enquire
7	250645	RING NUT	250645 RING NUT	-	2	Enquire
8	794712	RANK INSULATION BRACKET	794712 RANK INSULATION BRACKET	-	2	Enquire
9	944047	COMPL. RH LOWER RETAINER	944047 COMPL. RH LOWER RETAINER	-	1	Enquire
10	943944	COMPL. LH LOWER RETAINER	943944 COMPL. LH LOWER RETAINER	-	1	Enquire
11	16287024	SCREW	16287024 SCREW M8 X 16	-	4	Enquire
