EXPANSION TANK of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - EXPANSION TANK

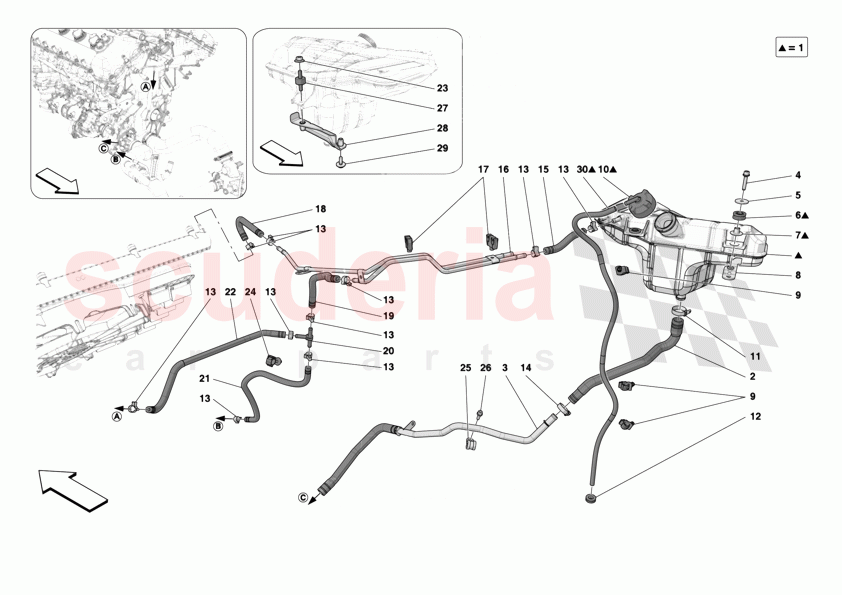

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	833660	COMPL. EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0232CP	Hose - Pipe - Filter to Steering Rack - LHD - 675LT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851138	COMPL. TANK OUTLET PIPE	Enquire	To Order
	11D0233CP	Hose - Pipe - Filter to Steering Rack - RHD - 675LT	$352.31	To Order

Photo	Part No	Description	Price (each)	Stock
	231621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286492	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286491	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851219	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262559	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145030	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851107	PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198259	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	762612	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA570	BOLT - M10X1.5X75	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB143	CLAMP - 25.6-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339343	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450390	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267798	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	975262	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	792394	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0249RP	Heatshield - Trackrod - 675LT	$56.74	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	833660	COMPL. EXPANSION TANK	833660 COMPL. EXPANSION TANK	-	1	Enquire
2	11D0232CP	Hose - Pipe - Filter to Steering Rack - LHD - 675LT	11D0232CP Hose - Pipe - Filter to Steering Rack - LHD - 675LT	-	1	Enquire
3	851138	COMPL. TANK OUTLET PIPE	851138 COMPL. TANK OUTLET PIPE	-	1	Enquire
3	11D0233CP	Hose - Pipe - Filter to Steering Rack - RHD - 675LT	11D0233CP Hose - Pipe - Filter to Steering Rack - RHD - 675LT	$352.31	1
4	231621	SCREW	231621 SCREW M6 X 30	-	2	Enquire
5	12640624	WASHER	12640624 WASHER	-	2	Enquire
6	286492	CABLE GROMMET	286492 CABLE GROMMET	-	2	Enquire
7	286491	SPACER	286491 SPACER	-	2	Enquire
8	851219	BRACKET	851219 BRACKET	-	2	Enquire
9	262559	CLIP	262559 CLIP	-	3	Enquire
10	145030	CAP WITH BREATHER	145030 CAP WITH BREATHER	-	1	Enquire
11	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
12	10397380	CABLE GROMMET	10397380 CABLE GROMMET	-	1	Enquire
13	13125470	COLLAR	13125470 COLLAR	-	12	Enquire
14	262109	COLLAR CLAMP	262109 COLLAR CLAMP D.17 - 25	-	2	Enquire
15	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	-	2	Enquire
16	851107	PIPES	851107 PIPES	-	1	Enquire
17	198259	CLIP	198259 CLIP	-	2	Enquire
18	288387	RUBBER PIPE	288387 RUBBER PIPE	-	1	Enquire
19	762612	RUBBER PIPE	762612 RUBBER PIPE	-	1	Enquire
20	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	-	1	Enquire
21	00RA570	BOLT - M10X1.5X75	00RA570 BOLT - M10X1.5X75	-	1	Enquire
22	00RB143	CLAMP - 25.6-706R	00RB143 CLAMP - 25.6-706R	-	1	Enquire
23	14039614	NUT	14039614 NUT	-	1	Enquire
24	339343	CLIP	339343 CLIP	-	1	Enquire
25	10450390	BRACKET WITH SHEATH	10450390 BRACKET WITH SHEATH	-	1	Enquire
26	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6 X 18	-	5	Enquire
27	267798	BUSH	267798 BUSH	-	1	Enquire
28	975262	BRACKET	975262 BRACKET	-	1	Enquire
29	792394	SCREW	792394 SCREW M6 X 18	-	1	Enquire
30	11D0249RP	Heatshield - Trackrod - 675LT	11D0249RP Heatshield - Trackrod - 675LT	$56.74	1
