ENGINE SUSPENSION BUSH of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - ENGINE SUSPENSION BUSH

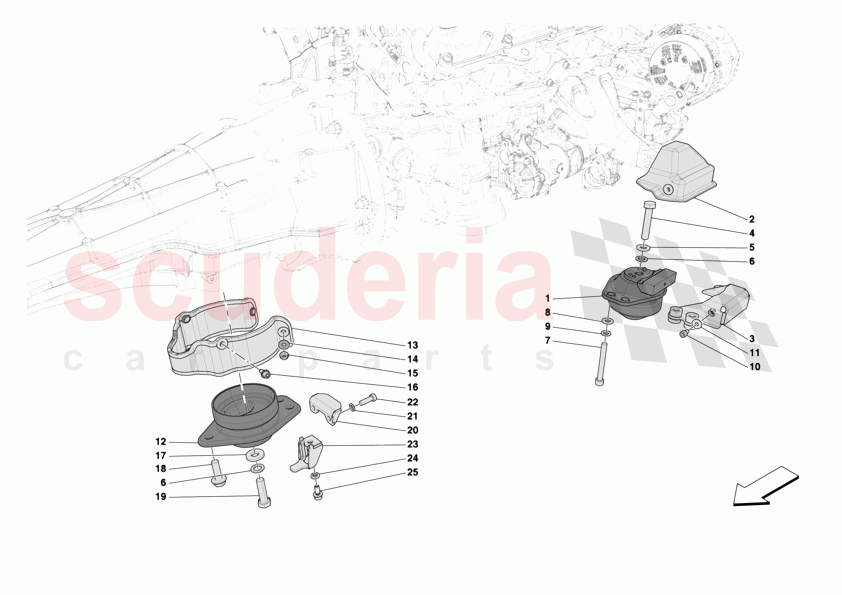

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	259757	LH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order
	259756	RH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277259	BUSH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	Enquire	To Order
	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15215834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550521	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285972	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289309	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	870777	TRANSMISSION HOUSING BUSHING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797723	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11599524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277524	BUSHING TRAVEL STOP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868442	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	259757	LH FLEXIBLE ENGINE MOUNTING BUSH	259757 LH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
1	259756	RH FLEXIBLE ENGINE MOUNTING BUSH	259756 RH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
2	277259	BUSH HEAT SHIELD	277259 BUSH HEAT SHIELD	-	2	Enquire
3	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	269829 LH ENGINE MOUNTING BUSH LIMITER BRACKET	-	1	Enquire
3	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	269828 RH ENGINE MOUNTING BUSH LIMITER BRACKET	-	1	Enquire
4	15215834	SCREW	15215834 SCREW M12 X 1.75 X 60	-	2	Enquire
5	13550521	WASHER	13550521 WASHER	-	2	Enquire
6	127498	WASHER	127498 WASHER	-	3	Enquire
7	285972	SCREW	285972 SCREW M10 X 1.25 X 85	-	6	Enquire
8	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	6	Enquire
9	127497	WASHER	127497 WASHER	-	6	Enquire
10	14305024	SCREW	14305024 SCREW M6 X 10	-	4	Enquire
11	12647624	WASHER	12647624 WASHER D. 6.45 - 16 X 2	-	4	Enquire
12	289309	RUBBER BUSHING	289309 RUBBER BUSHING	-	1	Enquire
13	870777	TRANSMISSION HOUSING BUSHING SHIELD	870777 TRANSMISSION HOUSING BUSHING SHIELD	-	1	Enquire
14	12638124	WASHER	12638124 WASHER	-	2	Enquire
15	14059114	NUT	14059114 NUT	-	2	Enquire
16	797723	SCREW	797723 SCREW M5 X 12	-	2	Enquire
17	12648524	WASHER	12648524 WASHER	-	1	Enquire
18	18754424	SCREW	18754424 SCREW M10 X 1.25 X 35	-	3	Enquire
19	11599524	SCREW	11599524 SCREW M12 X 1.75 X 45	-	1	Enquire
20	277524	BUSHING TRAVEL STOP BRACKET	277524 BUSHING TRAVEL STOP BRACKET	-	1	Enquire
21	14499424	WASHER	14499424 WASHER	-	2	Enquire
22	13028734	SCREW	13028734 SCREW M8 X 25	-	2	Enquire
23	868442	BRACKET	868442 BRACKET	-	1	Enquire
24	12648424	WASHER	12648424 WASHER	-	1	Enquire
25	248471	SCREW	248471 SCREW M8 X 20	-	1	Enquire
