AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari 12Cilindri

View All

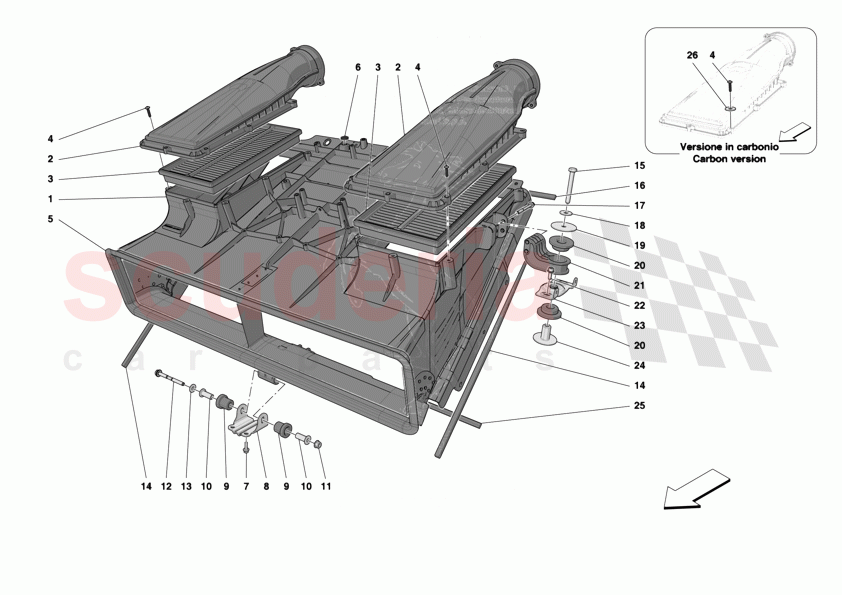

Ferrari 12Cilindri - AIR FILTER, AIR INTAKE AND DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	802834	ENGINE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	945321	AIR FILTER COVER	Enquire	To Order
	55025804	AIR FILTER COVER	Enquire	To Order
	55025805	AIR FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802766	AIR FILTER	Enquire	To Order
	812789	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308398	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	999560	FENDER MOUNTING SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85663600	RUBBER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55014781	FRONT ENGINE AIR COWL FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197584	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197585	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83743900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849686	LATERAL RADIATOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849801	REAR RADIATOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227430	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138926	RUBBER PAD FOR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849970	COWL MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340839	DUCT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343007	BUSH FOR UPPER DUCT BRACKETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849965	FRONT RADIATOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86321000	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	802834	ENGINE AIR DUCT	802834 ENGINE AIR DUCT	-	1	Enquire
2	945321	AIR FILTER COVER	945321 AIR FILTER COVER	-	2	Enquire
2	55025804	AIR FILTER COVER	55025804 AIR FILTER COVER Gloss finish carbon version	-	2	Enquire
2	55025805	AIR FILTER COVER	55025805 AIR FILTER COVER Matte finish carbon version	-	2	Enquire
3	802766	AIR FILTER	802766 AIR FILTER For USA LIGHT market, applicable for Chile submarket only; Not applicable for: CINA, USA, CDN, WA	-	2	Enquire
3	812789	AIR FILTER	812789 AIR FILTER Not applicable for Chile; Applicable for: CINA, USA, CDN, USA LIGHT, WA	-	2	Enquire
4	308398	SCREW	308398 SCREW	-	14	Enquire
5	999560	FENDER MOUNTING SEAL	999560 FENDER MOUNTING SEAL	-	1	Enquire
6	85663600	RUBBER SEAL	85663600 RUBBER SEAL	-	2	Enquire
7	16286124	SCREW	16286124 SCREW M6 X 20	-	2	Enquire
8	55014781	FRONT ENGINE AIR COWL FASTENER BRACKET	55014781 FRONT ENGINE AIR COWL FASTENER BRACKET	-	1	Enquire
9	197584	RUBBER BUSHING	197584 RUBBER BUSHING	-	2	Enquire
10	197585	BUSHING	197585 BUSHING	-	2	Enquire
11	14058511	NUT	14058511 NUT	-	1	Enquire
12	83743900	SCREW	83743900 SCREW M8 X 90	-	1	Enquire
13	12646724	WASHER	12646724 WASHER	-	1	Enquire
14	849686	LATERAL RADIATOR SEAL	849686 LATERAL RADIATOR SEAL	-	2	Enquire
15	16044534	SCREW	16044534 SCREW M8 X 65	-	2	Enquire
16	849801	REAR RADIATOR SEAL	849801 REAR RADIATOR SEAL	-	1	Enquire
17	231626	SCREW	231626 SCREW M6 X 70	-	4	Enquire
18	13578321	WASHER	13578321 WASHER	-	2	Enquire
19	227430	WASHER	227430 WASHER	-	2	Enquire
20	138926	RUBBER PAD FOR PIN	138926 RUBBER PAD FOR PIN	-	4	Enquire
21	849970	COWL MOUNTING BRACKET	849970 COWL MOUNTING BRACKET	-	2	Enquire
22	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6 X 18	-	2	Enquire
23	340839	DUCT ADJUSTER	340839 DUCT ADJUSTER	-	1	Enquire
24	343007	BUSH FOR UPPER DUCT BRACKETS	343007 BUSH FOR UPPER DUCT BRACKETS	-	2	Enquire
25	849965	FRONT RADIATOR SEAL	849965 FRONT RADIATOR SEAL	-	1	Enquire
26	86321000	WASHER	86321000 WASHER Applicable for version in carbon fibre	-	14	Enquire
