Ferrari 12Cilindri - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
920858 VALVE TIMING AND PUMP DRIVE SYSTEM Enquire To Order
55038018 VALVE TIMING AND PUMP DRIVE SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
312629 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
271880 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
254263 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
239566 COMPL. UPPER FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
194262 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
187742 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
154191 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
289896 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
904999 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
828954 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
276781 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
186668 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
309750 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
282395 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
198034 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
163759 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14306224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
265180 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
257626 SHOE Enquire To Order
Photo Part No Description Price (each) Stock
282392 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
260614 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
177778 NUT Enquire To Order
Photo Part No Description Price (each) Stock
175303 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
175306 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
317023 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
268314 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
840915 HYDRAULIC CHAIN TENSIONER Enquire To Order
55038019 TENDITORE IDRAULICO CATENA Enquire To Order
Photo Part No Description Price (each) Stock
183929 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
317022 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
252512 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
299589 DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
11A9614RP Radiator Air Guide - Upper - RH - 675LT $415.01 To Order
Photo Part No Description Price (each) Stock
301217 EXTERNAL CRANKSHAFT GEAR Enquire To Order
Photo Part No Description Price (each) Stock
299590 INNER CRANKSHAFT GEAR Enquire To Order
View All

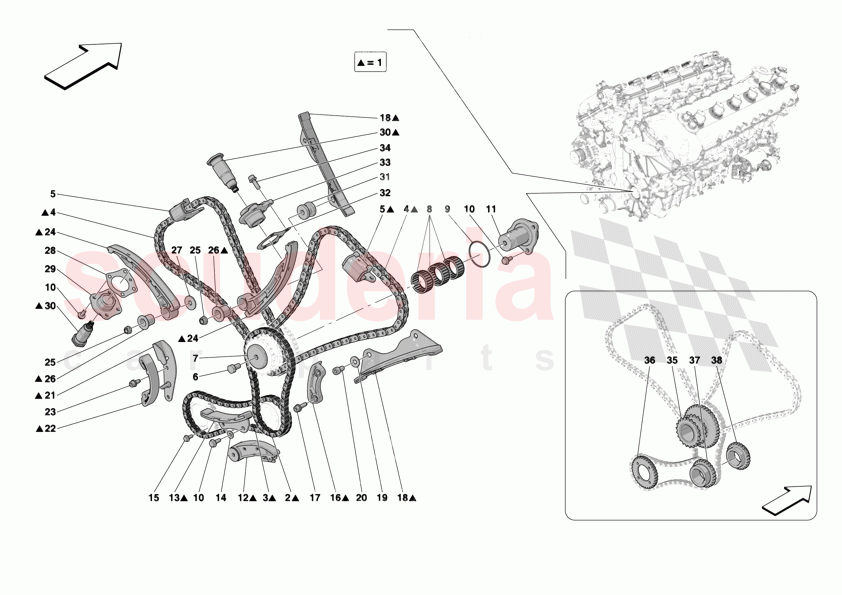

TIMING SYSTEM DRIVE of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 920858
VALVE TIMING AND PUMP DRIVE SYSTEM
Applicable up to engine No. 576797; Not applicable for: NIRL 		- 1 Enquire
1 55038018
VALVE TIMING AND PUMP DRIVE SYSTEM
Applicable from engine No. 576798 		- 1 Enquire
2 312629
CHAIN 		- 1 Enquire
3 271880
CHAIN 		- 1 Enquire
4 254263
CHAIN 		- 2 Enquire
5 239566
COMPL. UPPER FIXED SHOE 		- 2 Enquire
6 16043124
SCREW M8 X 14
M8 X 14 		- 1 Enquire
7 194262
SHOULDER 		- 1 Enquire
8 187742
ROLLER BEARING CAGE 		- 3 Enquire
9 154191
GASKET
Also included in engine gasket set 		- 1 Enquire
10 181336
SCREW
M6 X 16 		- 9 Enquire
11 289896
MOUNTING 		- 1 Enquire
12 904999
MOBILE SHOE 		- 1 Enquire
13 828954
FIXED SHOE 		- 1 Enquire
14 276781
WASHER 		- 2 Enquire
15 186668
SCREW
M5 X 12 		- 4 Enquire
16 309750
FIXED SHOE 		- 1 Enquire
17 282395
SCREW
M6 X 20 		- 2 Enquire
18 198034
FIXED SHOE 		- 2 Enquire
19 163759
WASHER 		- 3 Enquire
20 14306224
SCREW
M8 X 16 		- 3 Enquire
21 265180
MOUNTING 		- 1 Enquire
22 257626
SHOE 		- 1 Enquire
23 282392
SCREW
M6 X 14 		- 2 Enquire
24 260614
MOBILE SHOE 		- 2 Enquire
25 177778
NUT 		- 2 Enquire
26 175303
BUSH 		- 2 Enquire
27 175306
SHOULDER 		- 1 Enquire
28 317023
GASKET 		- 1 Enquire
29 268314
BUSH 		- 1 Enquire
30 840915
HYDRAULIC CHAIN TENSIONER
Applicable up to engine No. 576797; Not applicable for: NIRL 		- 2 Enquire
30 55038019
TENDITORE IDRAULICO CATENA
For vehicles up to engine No. 576797, replace as a pair; Applicable from engine No. 576798 		- 2 Enquire
31 183929
BUSH 		- 1 Enquire
32 317022
GASKET
Also included in engine gasket set 		- 1 Enquire
33 252512
BUSH 		- 1 Enquire
34 231617
SCREW M6 X 18
M6 X 18 		- 4 Enquire
35 299589
DRIVE GEAR 		- 1 Enquire
36 11A9614RP
Radiator Air Guide - Upper - RH - 675LT 		$415.01 1
37 301217
EXTERNAL CRANKSHAFT GEAR
Z. 26- -External 		- 1 Enquire
38 299590
INNER CRANKSHAFT GEAR
Z. 26- -Internal 		- 1 Enquire
