INJECTOR PIPES of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - INJECTOR PIPES

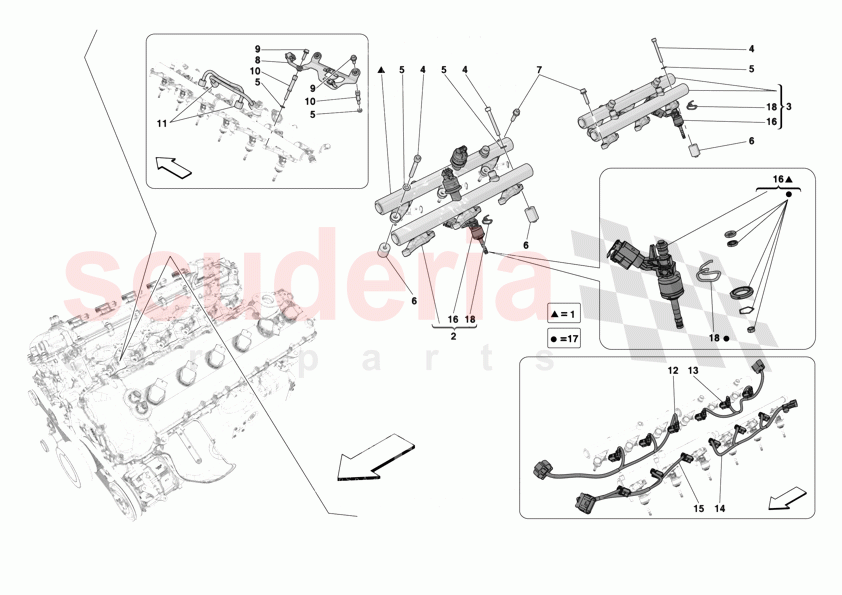

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	330107	COMPL. FRONT RH FUEL PIPE	Enquire	To Order
	794982	COMPL. FRONT RH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321300	COMPL. FRONT LH FUEL PIPE	Enquire	To Order
	794980	COMPL. FRONT LH FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329777	COMPL. REAR FUEL PIPE	Enquire	To Order
	794983	COMPL. REAR FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334268	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	919365	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231618	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334140	FUEL PIPE CONNECTING FRONT AND REAR RAILS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885857	INJECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885858	INJECTOR WIRING HARNESS	Enquire	To Order
	55013616	INJECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885859	INJECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885860	INJECTOR WIRING HARNESS	Enquire	To Order
	11A8925RP	Infill Panel - Radiator - Rear - LH	$436.66	To Order

Photo	Part No	Description	Price (each)	Stock
	339179	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70007598	SEAL KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	330107	COMPL. FRONT RH FUEL PIPE	330107 COMPL. FRONT RH FUEL PIPE Also order pipe ref. 11	-	1	Enquire
1	794982	COMPL. FRONT RH FUEL PIPE	794982 COMPL. FRONT RH FUEL PIPE Also order pipe ref. 11	-	1	Enquire
2	321300	COMPL. FRONT LH FUEL PIPE	321300 COMPL. FRONT LH FUEL PIPE Also order pipe ref. 11	-	1	Enquire
2	794980	COMPL. FRONT LH FUEL PIPE	794980 COMPL. FRONT LH FUEL PIPE Also order pipe ref. 11	-	1	Enquire
3	329777	COMPL. REAR FUEL PIPE	329777 COMPL. REAR FUEL PIPE Also order pipe ref. 11 and pipe ref. 8 in table 23 for RH cylinder bank or ref. 9 for LH cylinder bank	-	2	Enquire
3	794983	COMPL. REAR FUEL PIPE	794983 COMPL. REAR FUEL PIPE Also order pipe ref. 11 and pipe ref. 8 in table 23 for RH cylinder bank or ref. 9 for LH cylinder bank	-	2	Enquire
4	14306034	SCREW	14306034 SCREW M6 X 50	-	12	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	15	Enquire
6	334268	SPACER	334268 SPACER	-	12	Enquire
7	231620	SCREW	231620 SCREW M6 X 25	-	9	Enquire
8	919365	COMPL. BRACKET	919365 COMPL. BRACKET	-	1	Enquire
9	231618	SCREW	231618 SCREW M6 X 20	-	3	Enquire
10	324524	STUD BOLT	324524 STUD BOLT M6 X 23	-	3	Enquire
11	334140	FUEL PIPE CONNECTING FRONT AND REAR RAILS	334140 FUEL PIPE CONNECTING FRONT AND REAR RAILS	-	2	Enquire
12	885857	INJECTOR WIRING HARNESS	885857 INJECTOR WIRING HARNESS Applicable for 1, 2, 3 injectors	-	1	Enquire
13	885858	INJECTOR WIRING HARNESS	885858 INJECTOR WIRING HARNESS Applicable for 4, 5, 6 injectors; Not applicable for: NIRL	-	1	Enquire
13	55013616	INJECTOR WIRING HARNESS	55013616 INJECTOR WIRING HARNESS Applicable for 4, 5, 6 injectors	-	1	Enquire
14	885859	INJECTOR WIRING HARNESS	885859 INJECTOR WIRING HARNESS Applicable for 7, 8, 9 injectors	-	1	Enquire
15	885860	INJECTOR WIRING HARNESS	885860 INJECTOR WIRING HARNESS Applicable for 10, 11, 12 injectors; Not applicable for: NIRL	-	1	Enquire
15	11A8925RP	Infill Panel - Radiator - Rear - LH	11A8925RP Infill Panel - Radiator - Rear - LH Applicable for 10, 11, 12 injectors	$436.66	1
16	339179	ELECTRO-INJECTOR	339179 ELECTRO-INJECTOR	-	12	Enquire
17	70007598	SEAL KIT	70007598 SEAL KIT Applicable for 3 injectors	-	4	Enquire
