ENGINE COVERS of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - ENGINE COVERS

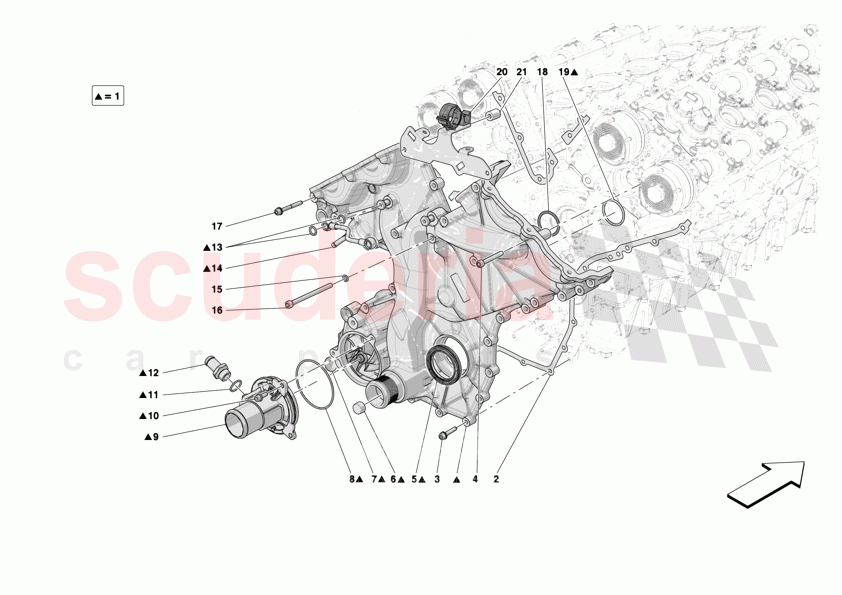

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	990354	TIMING SYSTEM COVER COMPL. WITH WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893579	GASKET BETWEEN CRANKCASE AND FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

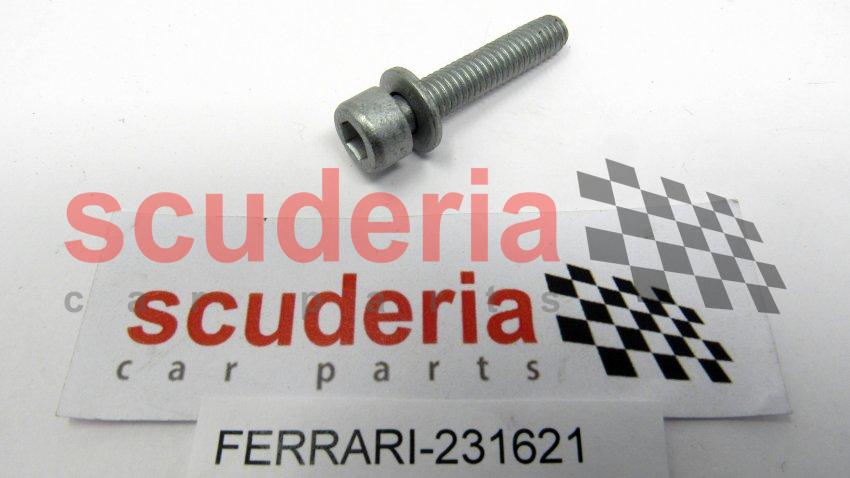

	231621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9227RP	Cover Panel - Rocker - Satin Carbon - Branded McLaren - LH	$8,121.09	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET D.79X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288787	WATER PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

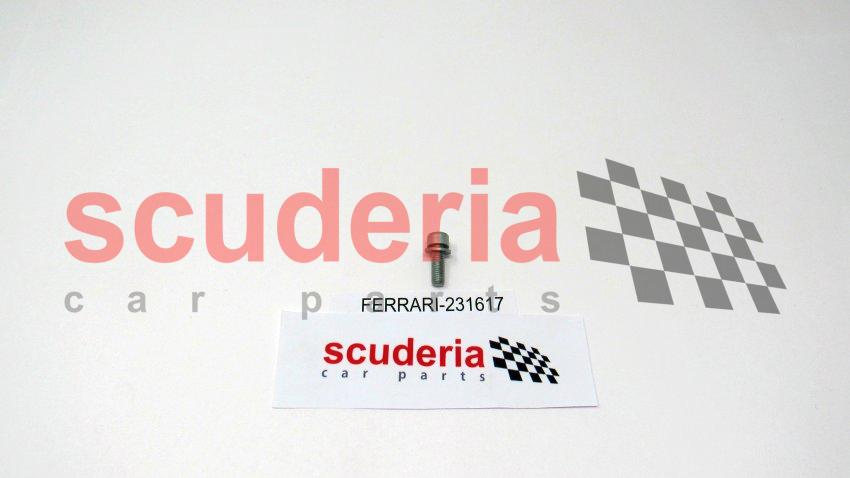

	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	931307198	COMPL. WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10589624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	773815	COMPL. MOUNTING BRACKET	Enquire	To Order
	984026	COMPL. MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281356	SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	990354	TIMING SYSTEM COVER COMPL. WITH WATER	990354 TIMING SYSTEM COVER COMPL. WITH WATER	-	1	Enquire
2	893579	GASKET BETWEEN CRANKCASE AND FRONT COVER	893579 GASKET BETWEEN CRANKCASE AND FRONT COVER	-	1	Enquire
3	231621	SCREW	231621 SCREW M6 X 30	-	12	Enquire
4	14305924	SCREW	14305924 SCREW M6 X 45	-	2	Enquire
5	210359	GASKET	210359 GASKET	-	1	Enquire
6	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	1	Enquire
7	11A9227RP	Cover Panel - Rocker - Satin Carbon - Branded McLaren - LH	11A9227RP Cover Panel - Rocker - Satin Carbon - Branded McLaren - LH	$8,121.09	1
8	253797	GASKET D.79X2	253797 GASKET D.79X2	-	1	Enquire
9	288787	WATER PUMP COVER	288787 WATER PUMP COVER	-	1	Enquire
10	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6 X 18	-	3	Enquire
11	11270550	O-RING	11270550 O-RING	-	1	Enquire
12	253823	CONNECTOR	253823 CONNECTOR	-	1	Enquire
13	10260960	GASKET	10260960 GASKET	-	4	Enquire
14	931307198	COMPL. WATER DRAIN PIPE	931307198 COMPL. WATER DRAIN PIPE	-	1	Enquire
15	216292	GASKET	216292 GASKET	-	6	Enquire
16	10589624	SCREW	10589624 SCREW M6 X 80	-	4	Enquire
17	231625	SCREW	231625 SCREW M6 X 50	-	12	Enquire
18	183010	O-RING	183010 O-RING	-	2	Enquire
19	289278	O-RING	289278 O-RING	-	1	Enquire
20	773815	COMPL. MOUNTING BRACKET	773815 COMPL. MOUNTING BRACKET Not for Taiwan and Korea	-	1	Enquire
20	984026	COMPL. MOUNTING BRACKET	984026 COMPL. MOUNTING BRACKET For EU-RHD market, applicable for Taiwan submarket only - For USA LIGHT market, applicable for Korea submarket only; Applicable for: EU-GS, USA LIGHT	-	1	Enquire
21	281356	SPACER	281356 SPACER	-	1	Enquire
