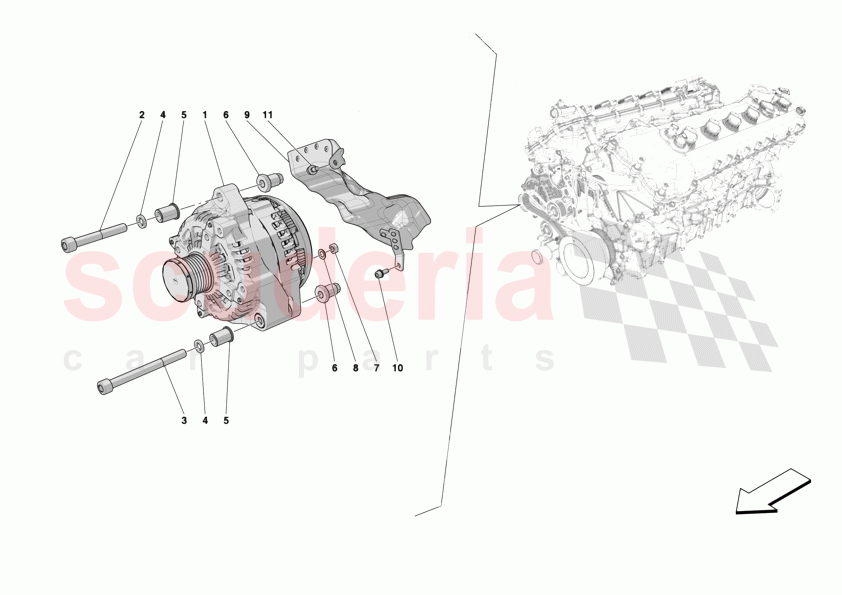

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	829167	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288320	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	946968	PARATIA ANTICALORE ALTERNATORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	829167	ALTERNATOR	829167 ALTERNATOR	-	1	Enquire
2	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	-	1	Enquire
3	14308724	SCREW	14308724 SCREW M10 X 1.25 X 100	-	1	Enquire
4	10569474	WASHER	10569474 WASHER	-	2	Enquire
5	258137	BUSH	258137 BUSH	-	2	Enquire
6	288320	THREADED BUSHING	288320 THREADED BUSHING	-	2	Enquire
7	16102314	NUT	16102314 NUT	-	1	Enquire
8	12601374	WASHER	12601374 WASHER	-	1	Enquire
9	946968	PARATIA ANTICALORE ALTERNATORE	946968 PARATIA ANTICALORE ALTERNATORE	-	1	Enquire
10	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	1	Enquire
11	233600	SCREW	233600 SCREW M6 X 12	-	1	Enquire
