Ferrari 12Cilindri Spider - FRONT SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1178CP ASSY OIL TANK - ENGINE $2,368.03 To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $334.68 To Order
Photo Part No Description Price (each) Stock
00RA005 NUT - M12 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX047 Bolt - M12x100 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RX048 Bolt - M12x90 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RX049 BOLT - M8X60 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC061 WASHER - M12X40X2 Enquire To Order
Photo Part No Description Price (each) Stock
11F0618CP BRACKET - SUPPORT - ENGINE LINK $76.92 To Order
Photo Part No Description Price (each) Stock
13FA024CP Mount - Engine Link $369.64 To Order
Photo Part No Description Price (each) Stock
11G0169CP Clip - Transmission Harness - AUX/SAV Connector $20.48 To Order
Photo Part No Description Price (each) Stock
11A4729CP Guide Vane - Front - LH $56.27 To Order
Photo Part No Description Price (each) Stock
11G0170CP Clip - Transmission Harness - CCV Connector $60.40 To Order
11G0221CP Bolt - Transmission - M4x14 $9.13 To Order
Photo Part No Description Price (each) Stock
11G0222CP Bolt - Transmission - M6x18 $4.12 To Order
Photo Part No Description Price (each) Stock
11G0223CP Stud - M10 - Trans to Engine $64.31 To Order
Photo Part No Description Price (each) Stock
11A2855CP Receiver Drier - HVAC $373.20 To Order
Photo Part No Description Price (each) Stock
11G0225CP Bolt - M8x20 - Trans $10.02 To Order
Photo Part No Description Price (each) Stock
11G0235CP Band Clip - Harness - Transmission - 3153 $2.34 To Order
Photo Part No Description Price (each) Stock
11G0236CP Band Clip - Harness - Transmission - 3163 $8.19 To Order
Photo Part No Description Price (each) Stock
11G0237CP Taped Clip - Harness - Transmission - 3173 $10.56 To Order
Photo Part No Description Price (each) Stock
11G0238CP Band Clip - Harness - Transmission - 3183 $11.94 To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11G0203CP Stand Off - Control Unit - Powertrain Chassis $8.05 To Order
Photo Part No Description Price (each) Stock
11G0173CP O-ring - Transmission - Secondary Shaft Cover $8.14 To Order
Photo Part No Description Price (each) Stock
11G0172CP O-ring - Transmission - Primary Shaft Cover $15.30 To Order
Photo Part No Description Price (each) Stock
11G0156CP Fill-Drain Plug - Trans/Clutch - inc. Washer $40.60 To Order
Photo Part No Description Price (each) Stock
11G0159CP Bypass Valve - Kit - Transmission $192.58 To Order
Photo Part No Description Price (each) Stock
11G0168CP Sensor - Temperature - Transmission - inc. Washer $74.33 To Order
Photo Part No Description Price (each) Stock
11G0019CP Access Cover - Filter - Clutch Fluid $150.78 To Order
Photo Part No Description Price (each) Stock
13G0055CP Oil Clutch Cooler - 25 Bar $340.37 To Order
Photo Part No Description Price (each) Stock
11G0234CP O-ring - Clutch Cooler $16.10 To Order
11G5000CP Dual Clutch Transmission $30,817.99 To Order
Photo Part No Description Price (each) Stock
11M1311CP Control Unit - Powertrain Chassis $4,282.54 To Order
11M3067CP CONTROL UNIT - POWERTRAIN CHASSIS - MY15 $2,220.61 To Order
Photo Part No Description Price (each) Stock
11F0945CP AIRBOX ASSY - ENGINE - LH $525.48 To Order
Photo Part No Description Price (each) Stock
00RG017 Firtree C Clip - 25-27mm Enquire To Order
Photo Part No Description Price (each) Stock
11F2326CP Clutch Cooler Pipe - Service Kit $72.73 To Order
Photo Part No Description Price (each) Stock
11G0288CP Oil Clutch Cooler - Service Kit $507.57 To Order
Photo Part No Description Price (each) Stock
00RA143 SCREW - M6X12 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY $395.90 To Order
Photo Part No Description Price (each) Stock
11G0239CP Taped Clip - Harness - Transmission - 3193 $7.63 To Order
Photo Part No Description Price (each) Stock
11G0240CP Band Clip - Harness - Transmission - 3233 $3.23 To Order
Photo Part No Description Price (each) Stock
11G0241CP Band Clip - Harness - Transmission - 3223 $9.13 To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
11G0242CP Bolt - Transmission - M10x1.25x30 $9.47 To Order
Photo Part No Description Price (each) Stock
11SA022CP INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE $113.36 To Order
Photo Part No Description Price (each) Stock
11G0063CP ASSY-CLUTCH SEALING PLATE $685.22 To Order
Photo Part No Description Price (each) Stock
00RB113 Hose Clamp - 22.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
11GA003CP PLUG SERVICE KIT - DUAL CLUTCH TRANSMISSION $107.97 To Order
Photo Part No Description Price (each) Stock
11A4880CP External Key Barrel - Assembly - 12C $394.00 To Order
Photo Part No Description Price (each) Stock
00RX033 BOLT - M10X120 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11G0171CP Breather - Transmission $33.98 To Order
Photo Part No Description Price (each) Stock
11G0160CP O-ring - Differential Cover $56.85 To Order
11G0165CP SEAL - INPUT SHAFT - TRANSMISSION $70.51 To Order
Photo Part No Description Price (each) Stock
00RA269 NUT - M10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11G0162CP O-ring - Differential Cover - Lubrication Channel $8.66 To Order
Photo Part No Description Price (each) Stock
11A7127CP Grille - Wheel Arch Liner - Front - RH - MY2015 $269.65 To Order
Photo Part No Description Price (each) Stock
11G0164CP Seal - Driveshaft Output - RH $70.34 To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $30.44 To Order
Photo Part No Description Price (each) Stock
11G0087CP Mount - Transmission $564.30 To Order
Photo Part No Description Price (each) Stock
11G0158CP O-ring - Cooler - Trans/Clutch $16.21 To Order
Photo Part No Description Price (each) Stock
00RB144 Adaptor Base - M6 - Stud Enquire To Order
Photo Part No Description Price (each) Stock
11GA045CP Solenoid Actuator Valve $6,503.22 To Order
Photo Part No Description Price (each) Stock
11GA046CP Clutch Control Valve $11,642.35 To Order
Photo Part No Description Price (each) Stock
11GA047CP Auxiliary Valve $3,426.09 To Order
Photo Part No Description Price (each) Stock
11A0829CP Bracket - Outrigger Fender Rear Support - LH $63.39 To Order
Photo Part No Description Price (each) Stock
11GA048CP Solenoid actuator valve gasket $64.48 To Order
Photo Part No Description Price (each) Stock
11GA049CP Clutch to cooler tube $56.42 To Order
View All

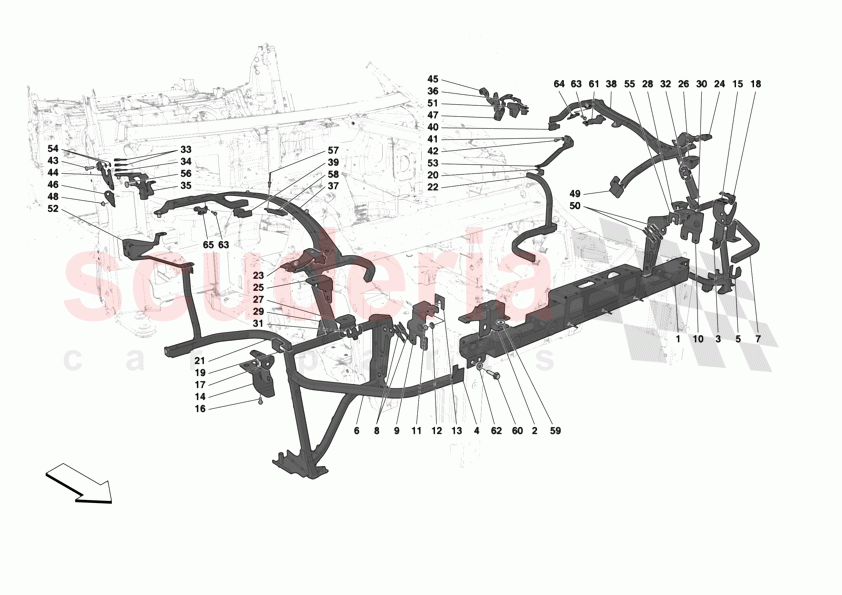

FRONT SUBSTRUCTURE of Ferrari Ferrari 12Cilindri Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 11F1178CP
ASSY OIL TANK - ENGINE
Request ASM authorisation 		$2,368.03 1
2 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 1 Enquire
3 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$334.68 1
4 00RA005
NUT - M12 - LOCK HEX 		- 1 Enquire
5 00RX047
Bolt - M12x100 - Hex 		- 1 Enquire
6 00RX048
Bolt - M12x90 - Hex
Request ASM authorisation 		- 1 Enquire
7 00RX049
BOLT - M8X60 - HEX
Request ASM authorisation 		- 1 Enquire
8 00RC061
WASHER - M12X40X2
Th. 1 mm 		- 8 Enquire
9 11F0618CP
BRACKET - SUPPORT - ENGINE LINK 		$76.92 1
10 13FA024CP
Mount - Engine Link 		$369.64 1
11 11G0169CP
Clip - Transmission Harness - AUX/SAV Connector
M6 		$20.48 2
12 11A4729CP
Guide Vane - Front - LH 		$56.27 17
13 11G0170CP
Clip - Transmission Harness - CCV Connector
Th. 1 mm 		$60.40 4
13 11G0221CP
Bolt - Transmission - M4x14
Th. 1 mm 		$9.13 4
14 11G0222CP
Bolt - Transmission - M6x18 		$4.12 1
15 11G0223CP
Stud - M10 - Trans to Engine 		$64.31 1
16 11A2855CP
Receiver Drier - HVAC
M5 X 14 		$373.20 4
17 11G0225CP
Bolt - M8x20 - Trans 		$10.02 1
18 11G0235CP
Band Clip - Harness - Transmission - 3153 		$2.34 1
19 11G0236CP
Band Clip - Harness - Transmission - 3163 		$8.19 2
20 11G0237CP
Taped Clip - Harness - Transmission - 3173 		$10.56 1
21 11G0238CP
Band Clip - Harness - Transmission - 3183
Request ASM authorisation 		$11.94 1
22 00RG025
CABLE TIE - PARALLEL - EDGE PANEL
Request ASM authorisation 		- 1 Enquire
23 11G0203CP
Stand Off - Control Unit - Powertrain Chassis 		$8.05 1
24 11G0173CP
O-ring - Transmission - Secondary Shaft Cover 		$8.14 1
25 11G0172CP
O-ring - Transmission - Primary Shaft Cover 		$15.30 1
26 11G0156CP
Fill-Drain Plug - Trans/Clutch - inc. Washer 		$40.60 1
27 11G0159CP
Bypass Valve - Kit - Transmission 		$192.58 1
28 11G0168CP
Sensor - Temperature - Transmission - inc. Washer 		$74.33 1
29 11G0019CP
Access Cover - Filter - Clutch Fluid 		$150.78 1
30 13G0055CP
Oil Clutch Cooler - 25 Bar 		$340.37 1
31 11G0234CP
O-ring - Clutch Cooler
Th. 1 mm 		$16.10 14
31 11G5000CP
Dual Clutch Transmission
Th. 1 mm 		$30,817.99 14
32 11M1311CP
Control Unit - Powertrain Chassis
Th. 2 mm 		$4,282.54 2
32 11M3067CP
CONTROL UNIT - POWERTRAIN CHASSIS - MY15
Th. 2 mm 		$2,220.61 2
33 11F0945CP
AIRBOX ASSY - ENGINE - LH
Th. 1 mm 		$525.48 34
34 00RG017
Firtree C Clip - 25-27mm
Th. 0.6 mm 		- 7 Enquire
35 11F2326CP
Clutch Cooler Pipe - Service Kit 		$72.73 1
36 11G0288CP
Oil Clutch Cooler - Service Kit 		$507.57 1
37 00RA143
SCREW - M6X12 - TORX
Request ASM authorisation 		- 1 Enquire
38 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY
Request ASM authorisation 		$395.90 1
39 11G0239CP
Taped Clip - Harness - Transmission - 3193 		$7.63 1
40 11G0240CP
Band Clip - Harness - Transmission - 3233 		$3.23 1
41 11G0241CP
Band Clip - Harness - Transmission - 3223 		$9.13 31
42 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25
M6 X 20 		- 46 Enquire
43 11G0242CP
Bolt - Transmission - M10x1.25x30
M8 X 25 		$9.47 4
44 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE 		$113.36 1
45 11G0063CP
ASSY-CLUTCH SEALING PLATE 		$685.22 1
46 00RB113
Hose Clamp - 22.6-706R 		- 1 Enquire
47 11GA003CP
PLUG SERVICE KIT - DUAL CLUTCH TRANSMISSION 		$107.97 1
48 11A4880CP
External Key Barrel - Assembly - 12C 		$394.00 4
49 00RX033
BOLT - M10X120 - HEX 		- 2 Enquire
50 11G0171CP
Breather - Transmission
Th. 0.5 mm 		$33.98 8
51 11G0160CP
O-ring - Differential Cover
Not applicable for: GD 		$56.85 1
51 11G0165CP
SEAL - INPUT SHAFT - TRANSMISSION
Applicable for: GD 		$70.51 1
52 00RA269
NUT - M10 - HEX 		- 1 Enquire
53 11G0162CP
O-ring - Differential Cover - Lubrication Channel 		$8.66 1
54 11A7127CP
Grille - Wheel Arch Liner - Front - RH - MY2015 		$269.65 8
55 11G0164CP
Seal - Driveshaft Output - RH
Th. 0.5 mm 		$70.34 4
56 11F0021CP
Drain Plug - Oil Tank - M14 		$30.44 4
57 11G0087CP
Mount - Transmission 		$564.30 4
58 11G0158CP
O-ring - Cooler - Trans/Clutch 		$16.21 1
59 00RB144
Adaptor Base - M6 - Stud 		- 8 Enquire
60 11GA045CP
Solenoid Actuator Valve
M8 X 32 		$6,503.22 8
61 11GA046CP
Clutch Control Valve 		$11,642.35 1
62 11GA047CP
Auxiliary Valve
8.45 X 20 X 2 		$3,426.09 8
63 11A0829CP
Bracket - Outrigger Fender Rear Support - LH
M5 X 16 		$63.39 4
64 11GA048CP
Solenoid actuator valve gasket 		$64.48 1
65 11GA049CP
Clutch to cooler tube 		$56.42 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
