Air channel for pass. cabin heater of Bentley Bentley New Flying Spur (2020-2024)

View All

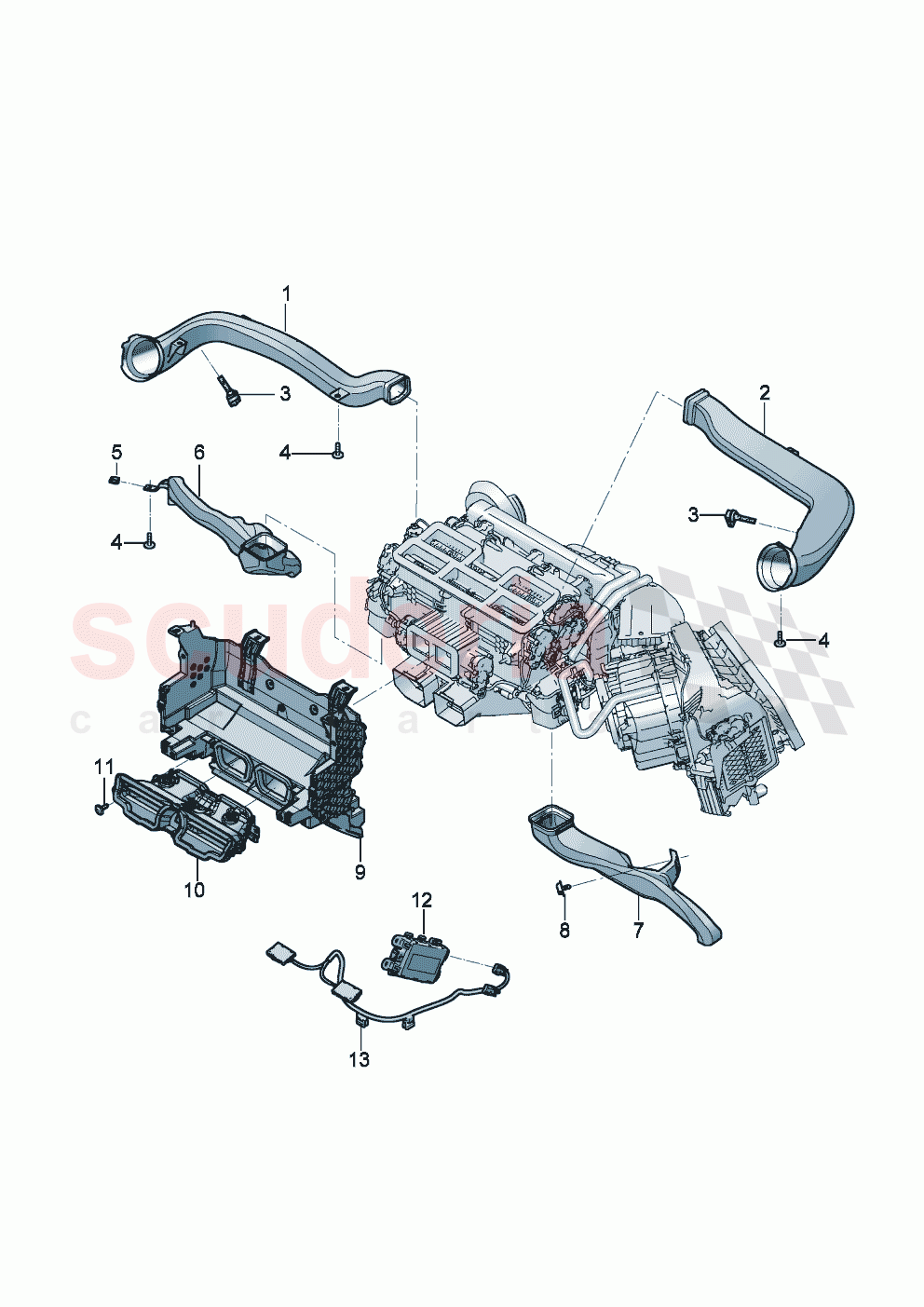

Bentley New Flying Spur (2020-2024) - Air channel for pass. cabin heater (819030)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SB820159	Air guide	Enquire
	3SC819655	Air guide	Enquire
	3SD819111B	Air guide D - 28.10.2019>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SB819656	Air guide	Enquire
	3SC820160	Air guide	Enquire
	3SB819112B	Air guide D - 28.10.2019>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D0907543A	Temperature sensor	Enquire
	N91018901	Hexagon plastic collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91090701	Oval socket head bolt with hex drive	Enquire
	971819081A	Air guide D >> - 02.09.2024	Enquire
	971819081B	Intermediate piece Air guide D - 02.09.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698801	Speed nut Included in position:	Enquire
	4B0820539	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819151	Air guide D >> - 02.09.2024	Enquire
	971819151B	Footwell vent D - 02.09.2024>>	Enquire
	971819151A	Air guide D >> - 02.09.2024	Enquire

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971819152	Air guide D >> - 02.09.2024	Enquire
	971819152B	Footwell vent D - 02.09.2024>>	Enquire
	971819152A	Air guide D >> - 02.09.2024	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WHT000155	wing screw	Enquire
	WHT000155	wing screw	Enquire
	971815326AY	Air distribution housing D >> - 22.10.2023	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SD858019A	Air guide Intermediate piece	Enquire
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE819389	Air guide	Enquire
	3SE819819	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90918701	Hexagon socket head panel bolt	Enquire
	3SE819820	Air guide	Enquire
	971819923A	Air vent D - 08.11.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4N0963459D	Ioniser D - 04.09.2020>>	Enquire
	4N0963459D	Ioniser D - 04.09.2020>>	Enquire
	4N0963459E	Ioniser	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SE963281	impulse sender D >> - 16.07.2023	Enquire
	3SE963281A	impulse sender	Enquire
	3SE819812A	Air guide B-pillar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE819727B	Air vent B-pillar	Enquire
	3SE819727C	Air vent B-pillar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE819728B	Air vent B-pillar	Enquire
	3SE819728C	Air vent B-pillar	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819923	Footwell vent D >> - 08.11.2021	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819924	Footwell vent D >> - 08.11.2021	Enquire
	971819924A	Air vent D - 08.11.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819347	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819348	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE819657	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE819658	Air guide	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3SB820159	Air guide	3SB820159 Air guide driver side lhd	-	1	Enquire
1	3SC819655	Air guide	3SC819655 Air guide passenger side rhd	-	1	Enquire
1	3SD819111B	Air guide D - 28.10.2019>>	3SD819111B Air guide D - 28.10.2019>> left	-	1	Enquire
1	3SD819111B	Air guide D - 28.10.2019>>	3SD819111B Air guide D - 28.10.2019>> left	-	1	Enquire
2	3SB819656	Air guide	3SB819656 Air guide passenger side lhd	-	1	Enquire
2	3SC820160	Air guide	3SC820160 Air guide driver side rhd	-	1	Enquire
2	3SB819112B	Air guide D - 28.10.2019>>	3SB819112B Air guide D - 28.10.2019>> right	-	1	Enquire
2	3SB819112B	Air guide D - 28.10.2019>>	3SB819112B Air guide D - 28.10.2019>> right	-	1	Enquire
3	3D0907543A	Temperature sensor	3D0907543A Temperature sensor	-	2	Enquire
3	N91018901	Hexagon plastic collar nut	N91018901 Hexagon plastic collar nut	-	2	Enquire
4	N91090701	Oval socket head bolt with hex drive	N91090701 Oval socket head bolt with hex drive M5X20	-	6	Enquire
4	971819081A	Air guide D >> - 02.09.2024	971819081A Air guide D >> - 02.09.2024 left a. right	-	2	Enquire
4	971819081B	Intermediate piece Air guide D - 02.09.2024>>	971819081B Intermediate piece Air guide D - 02.09.2024>> left a. right	-	1	Enquire
5	N90698801	Speed nut Included in position:	N90698801 Speed nut Included in position:	-	1	Enquire
5	4B0820539	Temperature sensor	4B0820539 Temperature sensor	-	2	Enquire
6	971819151	Air guide D >> - 02.09.2024	971819151 Air guide D >> - 02.09.2024 driver side Footwell	-	1	Enquire
6	971819151B	Footwell vent D - 02.09.2024>>	971819151B Footwell vent D - 02.09.2024>> driver side Footwell	-	1	Enquire
6	971819151A	Air guide D >> - 02.09.2024	971819151A Air guide D >> - 02.09.2024 passenger side Footwell	-	1	Enquire
6	971819151C	Footwell vent D - 02.09.2024>>	971819151C Footwell vent D - 02.09.2024>> passenger side Footwell	-	1	Enquire
6	8W0820511E	SERVOMOTOR	8W0820511E SERVOMOTOR	-	4	Enquire
7	971819152	Air guide D >> - 02.09.2024	971819152 Air guide D >> - 02.09.2024 passenger side Footwell	-	1	Enquire
7	971819152B	Footwell vent D - 02.09.2024>>	971819152B Footwell vent D - 02.09.2024>> passenger side Footwell	-	1	Enquire
7	971819152A	Air guide D >> - 02.09.2024	971819152A Air guide D >> - 02.09.2024 driver side Footwell	-	1	Enquire
7	971819152C	Footwell vent D - 02.09.2024>>	971819152C Footwell vent D - 02.09.2024>> driver side Footwell	-	1	Enquire
7	971815325AY	Air distribution housing D >> - 22.10.2023	971815325AY Air distribution housing D >> - 22.10.2023 left rear Footwell	-	1	Enquire
7	971815325CY	Air distribution housing D - 23.10.2023>>	971815325CY Air distribution housing D - 23.10.2023>> left rear Footwell	-	1	Enquire
8	WHT000155	wing screw	WHT000155 wing screw 4,8	-	2	Enquire
8	WHT000155	wing screw	WHT000155 wing screw	-	1	Enquire
8	971815326AY	Air distribution housing D >> - 22.10.2023	971815326AY Air distribution housing D >> - 22.10.2023 right rear Footwell	-	1	Enquire
8	971815326CY	Air distribution housing D - 23.10.2023>>	971815326CY Air distribution housing D - 23.10.2023>> right rear Footwell	-	1	Enquire
9	3SD858019A	Air guide Intermediate piece	3SD858019A Air guide Intermediate piece center	-	1	Enquire
9	N90335006	Clamping washer	N90335006 Clamping washer	-	2	Enquire
10	3SE819389	Air guide	3SE819389 Air guide center	-	1	Enquire
10	3SE819819	Air guide	3SE819819 Air guide side, left	-	1	Enquire
11	N90918701	Hexagon socket head panel bolt	N90918701 Hexagon socket head panel bolt TP4X12	-	2	Enquire
11	3SE819820	Air guide	3SE819820 Air guide side, right	-	1	Enquire
11	971819923A	Air vent D - 08.11.2021>>	971819923A Air vent D - 08.11.2021>> left rear	-	1	Enquire
12	4N0963459D	Ioniser D - 04.09.2020>>	4N0963459D Ioniser D - 04.09.2020>>	-	1	Enquire
12	4N0963459D	Ioniser D - 04.09.2020>>	4N0963459D Ioniser D - 04.09.2020>>	-	1	Enquire
12	4N0963459E	Ioniser	4N0963459E Ioniser	-	1	Enquire
12	3SE819811A	Air guide B-pillar	3SE819811A Air guide B-pillar left	-	1	Enquire
13	3SE963281	impulse sender D >> - 16.07.2023	3SE963281 impulse sender D >> - 16.07.2023 PR:2V4	-	1	Enquire
13	3SE963281A	impulse sender	3SE963281A impulse sender PR:2V4	-	1	Enquire
13	3SE819812A	Air guide B-pillar	3SE819812A Air guide B-pillar right	-	1	Enquire
14	3SE819727B	Air vent B-pillar	3SE819727B Air vent B-pillar left ,PR:FL0	-	1	Enquire
14	3SE819727C	Air vent B-pillar	3SE819727C Air vent B-pillar left Knurled ,PR:FL2	-	1	Enquire
15	3SE819728B	Air vent B-pillar	3SE819728B Air vent B-pillar right ,PR:FL0	-	1	Enquire
15	3SE819728C	Air vent B-pillar	3SE819728C Air vent B-pillar right Knurled ,PR:FL2	-	1	Enquire
16	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12	-	10	Enquire
17	971819923	Footwell vent D >> - 08.11.2021	971819923 Footwell vent D >> - 08.11.2021 left rear	-	1	Enquire
18	971819924	Footwell vent D >> - 08.11.2021	971819924 Footwell vent D >> - 08.11.2021 right rear	-	1	Enquire
18	971819924A	Air vent D - 08.11.2021>>	971819924A Air vent D - 08.11.2021>> right rear	-	1	Enquire
19	971819347	Air guide	971819347 Air guide left rear	-	1	Enquire
20	971819348	Air guide	971819348 Air guide right rear	-	1	Enquire
21	3SE819657	Air guide	3SE819657 Air guide left rear	-	1	Enquire
22	3SE819658	Air guide	3SE819658 Air guide right rear	-	1	Enquire
