Find Your Part

View All

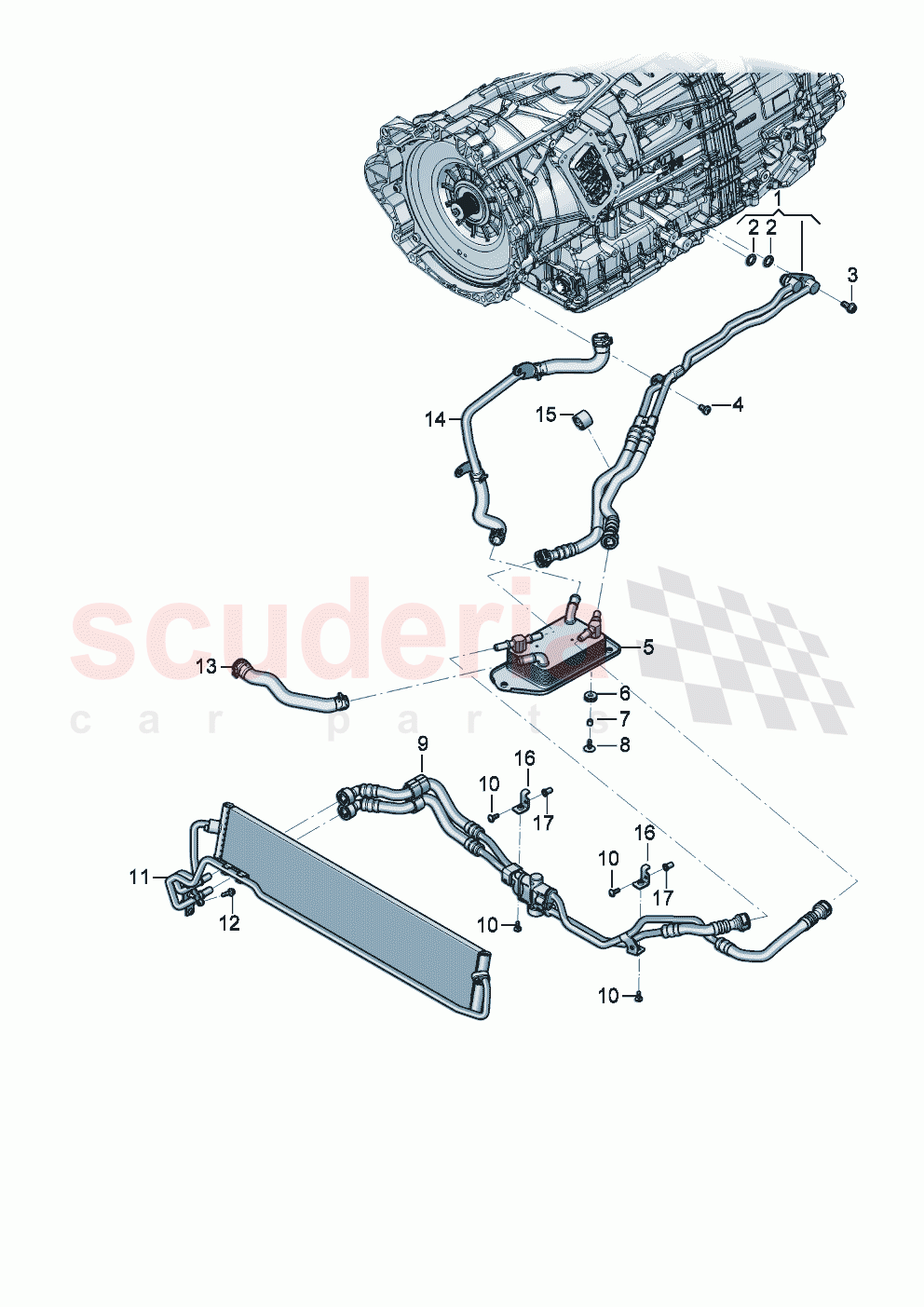

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	976317760B	oil pressure line for gearbox oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT008198	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10664801	Socket head collared bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	976317023B	Gear oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	971117257A	Rubber grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT008788A	spacer sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91188301	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA317809D	oil pressure line for gearbox oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10632003	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA317091	Oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10653302	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10767501	toothed lock washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA317827	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90631303	rivetted cap nut	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	976317760B	oil pressure line for gearbox oil cooling	976317760B oil pressure line for gearbox oil cooling side, left	-	1	Enquire
2	WHT008198	O-ring	WHT008198 O-ring 15X3,6	-	2	Enquire
3	N10664801	Socket head collared bolt with inner multipoint head	N10664801 Socket head collared bolt with inner multipoint head M8X20	-	1	Enquire
4	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	1	Enquire
5	976317023B	Gear oil cooler	976317023B Gear oil cooler	-	1	Enquire
6	971117257A	Rubber grommet	971117257A Rubber grommet	-	3	Enquire
7	WHT008788A	spacer sleeve	WHT008788A spacer sleeve	-	3	Enquire
8	N91188301	Hexagon socket head bolt	N91188301 Hexagon socket head bolt M6X20	-	3	Enquire
9	3SA317809D	oil pressure line for gearbox oil cooling	3SA317809D oil pressure line for gearbox oil cooling Front	-	1	Enquire
10	N10632003	Oval socket head bolt with hex drive	N10632003 Oval socket head bolt with hex drive M6X16	-	4	Enquire
11	3SA317091	Oil cooler	3SA317091 Oil cooler	-	1	Enquire
12	N10653302	Hex collared bolt	N10653302 Hex collared bolt M6X20	-	1	Enquire
15	N10767501	toothed lock washer	N10767501 toothed lock washer 19X30X20	-	1	Enquire
16	3SA317827	Bracket	3SA317827 Bracket	-	2	Enquire
17	N90631303	rivetted cap nut	N90631303 rivetted cap nut M6X0,5-3	-	2	Enquire
