Aston Martin Rapide - Cooler, Hoses and Reservoir (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433R700AB Reservoir and Cap Assembly $184.99 IN STOCK
Photo Part No Description Price (each) Stock
4G4334006AA Cap assy, power steering reservoir Enquire To Order
Photo Part No Description Price (each) Stock
4G433489AC BRACKET ASSY - PAS RESERVOIR $58.73 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 IN STOCK
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 IN STOCK
Photo Part No Description Price (each) Stock
8D333A713AB RETURN HOSE COOLER TO RESERVOIR $528.96 To Order
Photo Part No Description Price (each) Stock
8D333F558AC Hose Return Gear to Cooler LHD $594.09 To Order
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE $6.01 To Order
Photo Part No Description Price (each) Stock
701349 Clamp, Hose 20 Dia $1.03 To Order
Photo Part No Description Price (each) Stock
4G436C727AA HOSE CLIP (RAYMOND 81442) $2.30 IN STOCK
Photo Part No Description Price (each) Stock
AD433D746AA COOLING LOOP POWER STEERING $432.46 To Order
Photo Part No Description Price (each) Stock
AD433E525AA RESERVOIR TO PUMP SUCTION $50.22 To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R $3.23 To Order
Photo Part No Description Price (each) Stock
FD333A719AA HOSE ASY PAS PMP LHD $635.85 To Order
Photo Part No Description Price (each) Stock
694891 P-CLIP $4.08 To Order
Photo Part No Description Price (each) Stock
4G43105050AA CLIP - DOUBLE REYMOND REF 80476 $2.60 To Order
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE $2.37 IN STOCK
Photo Part No Description Price (each) Stock
4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE $100.25 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 IN STOCK
View All

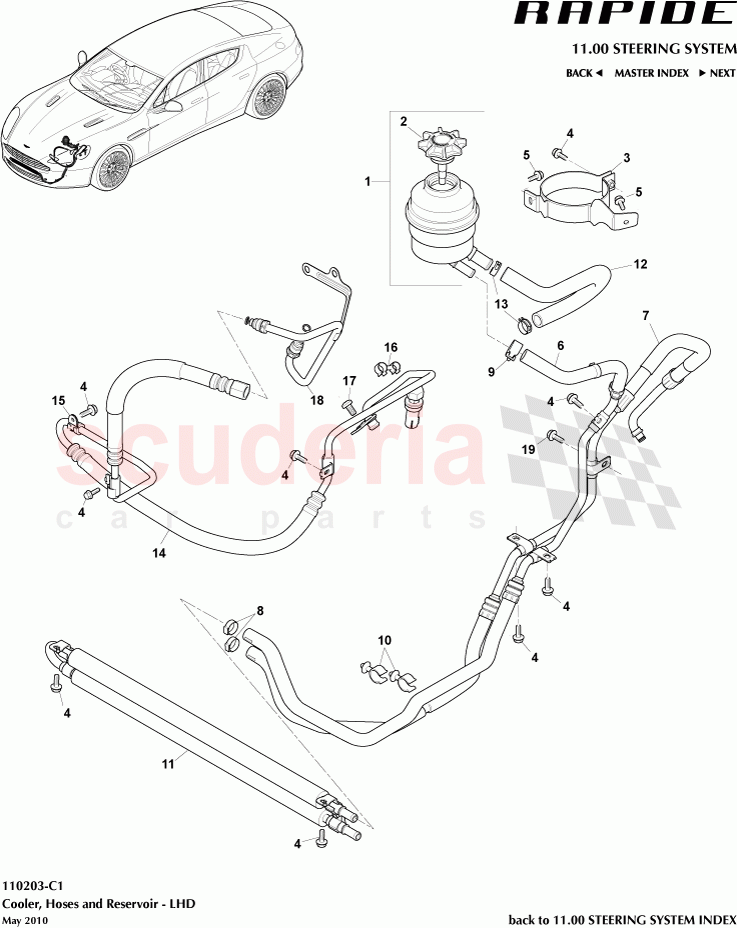

Cooler, Hoses and Reservoir (LHD) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly
IN STOCK 		$184.99 1
2 4G4334006AA
Cap assy, power steering reservoir 		- 1 Enquire
3 4G433489AC
BRACKET ASSY - PAS RESERVOIR 		$58.73 1
4 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.21 5
5 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.36 2
6 8D333A713AB
RETURN HOSE COOLER TO RESERVOIR 		$528.96 1
7 8D333F558AC
Hose Return Gear to Cooler LHD 		$594.09 1
8 8D3360155AA
CLAMP - PAS HOSE 		$6.01 2
9 701349
Clamp, Hose 20 Dia 		$1.03 1
10 4G436C727AA
HOSE CLIP (RAYMOND 81442)
IN STOCK 		$2.30 2
11 AD433D746AA
COOLING LOOP POWER STEERING 		$432.46 1
12 AD433E525AA
RESERVOIR TO PUMP SUCTION 		$50.22 1
13 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R 		$3.23 2
14 FD333A719AA
HOSE ASY PAS PMP LHD 		$635.85 1
15 694891
P-CLIP 		$4.08 1
16 4G43105050AA
CLIP - DOUBLE REYMOND REF 80476 		$2.60 1
17 703141
SCREW M8 x 16 CHROME FREE
IN STOCK 		$2.37 1
18 4G433494AA
PUMP OUTLET TUBE - HIGH PRESSURE 		$100.25 1
19 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.29 4
