Electrical Switches - Centre Console Switches of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Electrical Switches - Centre Console Switches

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

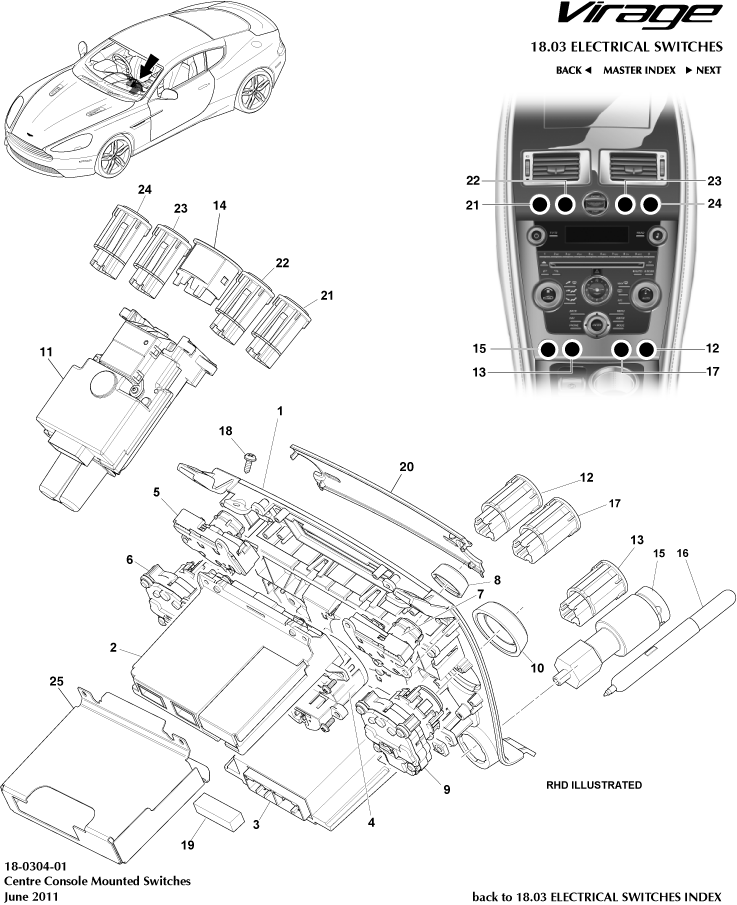

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AD423GP	ASSY FINISHER DLO RH	22AD423GP ASSY FINISHER DLO RH -	-	1	Enquire
-	CD3318C815GA	CENTRE STACK ASSY	CD3318C815GA CENTRE STACK ASSY -	-	1	Enquire
-	CD3313D734AA	SWITCH MAIN BODY	CD3313D734AA SWITCH MAIN BODY -	-	1	Enquire
-	AD333710107	SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER)	AD333710107 SWITCH KIT-GLASS DBS AUTO (MADE TO ORDER) -	-	1	Enquire
1	CG4313D734BA	SWITCH MAIN BODY	CG4313D734BA SWITCH MAIN BODY -	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE -	-	1	Enquire
3	CG4318C612BA	Module, Centre Console ECU	CG4318C612BA Module, Centre Console ECU -	-	1	Enquire
5	8D3313D734CA	AUDIO CTRL MODULE	8D3313D734CA AUDIO CTRL MODULE -	-	1	Enquire
6	8D3318C612BB	HVAC CTRL MODULE	8D3318C612BB HVAC CTRL MODULE -	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control -	-	1	Enquire
11	9G4319H386AG	TRANS IGN STR/STOP	9G4319H386AG TRANS IGN STR/STOP -	-	2	Enquire
12	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping -	-	1	Enquire
13	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control -	-	1	Enquire
14	9G4319H420AG	TRANS IGN BZL ASY	9G4319H420AG TRANS IGN BZL ASY -	-	1	Enquire
16	9G4319G243AA	LAMY PEN	9G4319G243AA LAMY PEN -	-	1	Enquire
17	AD3314B626CA	SPORTS MODE SWITCH	AD3314B626CA SPORTS MODE SWITCH -	-	1	Enquire
18	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	4	Enquire
19	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE -	-	1	Enquire
20	AG4304708BB	ICM LENS	AG4304708BB ICM LENS -	-	1	Enquire
21	AD337L021BA	PARK SWITCH AUTO	AD337L021BA PARK SWITCH AUTO -	-	1	Enquire
22	AD337J175CA	REVERSE SWITCH AUTO	AD337J175CA REVERSE SWITCH AUTO -	-	1	Enquire
23	AD337A247BA	NEUTRAL SW AUTO	AD337A247BA NEUTRAL SW AUTO -	-	1	Enquire
24	AD337J177BA	DRIVE SWITCH AUTO	AD337J177BA DRIVE SWITCH AUTO -	-	1	Enquire
25	AG4319C076BA	RFI SHIELD	AG4319C076BA RFI SHIELD -	-	1	Enquire
