Speakers, B&O of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Speakers, B&O

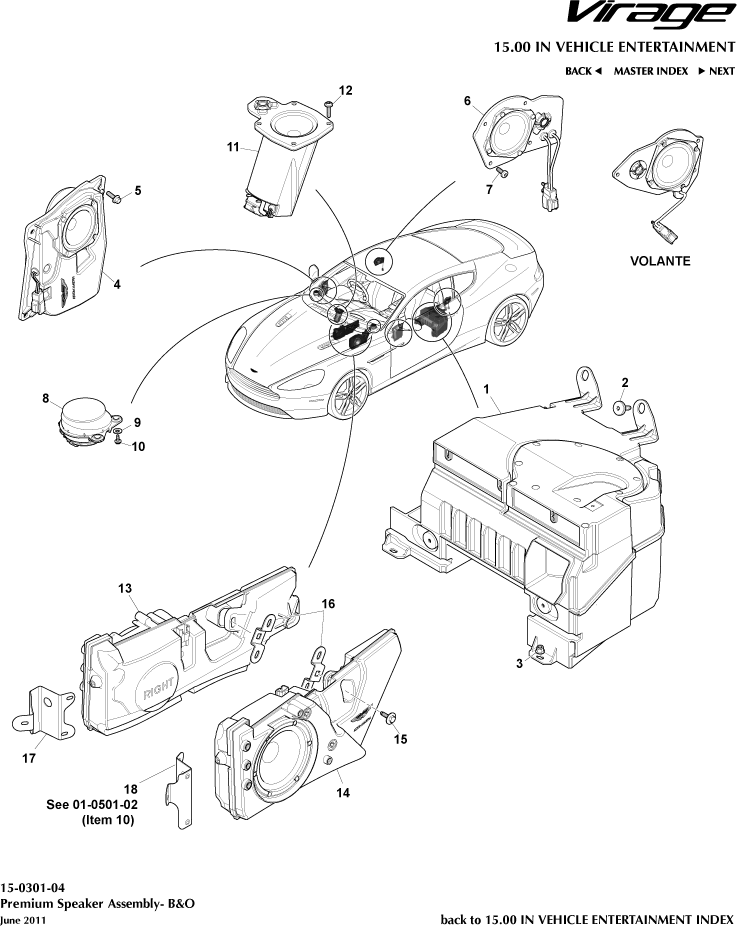

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D336696YBA	Speaker Box, Front Door, LH	9D336696YBA Speaker Box, Front Door, LH -	-	1	Enquire
-	9D3346685AA	DB9 COUPE RR SPEAKER LH	9D3346685AA DB9 COUPE RR SPEAKER LH -	-	1	Enquire
1	9D3318C956AB	DB9 SUB ENCLOSURE	9D3318C956AB DB9 SUB ENCLOSURE -	-	1	Enquire
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
4	9D336696XBA	Speaker Box, Front Door, RH	9D336696XBA Speaker Box, Front Door, RH -	-	1	Enquire
5	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm 4 Per Door	-	8	Enquire
6	9D3346684AA	DB9 COUPE RR SPEAKER RH	9D3346684AA DB9 COUPE RR SPEAKER RH -	-	1	Enquire
7	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head 4 Per Speaker	-	8	Enquire
8	9D3318D801AB	ACOUSTIC LENS TWEETER-BASALT	9D3318D801AB ACOUSTIC LENS TWEETER-BASALT -	-	2	Enquire
9	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	-	Enquire
10	22AA451GP	SEAL BONNET MARGIN RH	22AA451GP SEAL BONNET MARGIN RH -	-	3 Per Tweeter	Enquire
11	9D3370451AA	CNTR SPKR	9D3370451AA CNTR SPKR -	-	1	Enquire
12	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head -	-	1	Enquire
13	9D336696XAB	FTWL SPKR RH	9D336696XAB FTWL SPKR RH -	-	1	Enquire
14	9D336696YAB	FOOTWELL SPKR LH	9D336696YAB FOOTWELL SPKR LH -	-	1	Enquire
15	703152	SCREW/WSHR M6x20 HEX PILOT CHROME FREE	703152 SCREW/WSHR M6x20 HEX PILOT CHROME FREE 2 Per Speaker	-	4	Enquire
16	9D3319080AA	Mounting Bracket, Loudspeaker	9D3319080AA Mounting Bracket, Loudspeaker -	-	2	Enquire
17	9D332B100AC	Bracket, Foot Well Speaker Box, RH	9D332B100AC Bracket, Foot Well Speaker Box, RH -	-	1	Enquire
18	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH -	-	1	Enquire
