Air Distribution Components of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

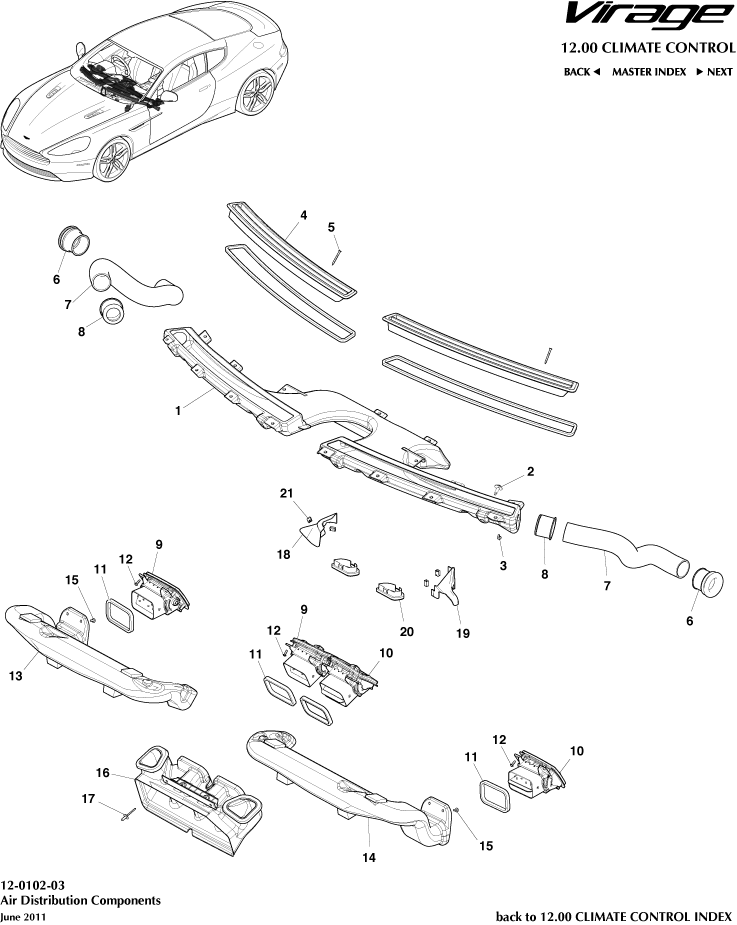

Aston Martin GT VIRAGE (2012-2013) - Air Distribution Components

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G3304432AD	Duct Assembly, Windshield Deflector, LHD	6G3304432AD Duct Assembly, Windshield Deflector, LHD -	-	1	Enquire
-	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	2	Enquire
-	4G43046B30BB	Register Assembly, Air Con, RH	4G43046B30BB Register Assembly, Air Con, RH Graphite with White Symbols	-	2	Enquire
-	4G43046B31BB	Register Assembly, Air Con, LH	4G43046B31BB Register Assembly, Air Con, LH Graphite with White Symbols	-	2	Enquire
-	8G4318D404AC	Duct Assembly, Heater Air Distribution, LHD	8G4318D404AC Duct Assembly, Heater Air Distribution, LHD -	-	1	Enquire
-	8G43014K96AB	Duct Assembly, Aircon Footwell, RH, LHD	8G43014K96AB Duct Assembly, Aircon Footwell, RH, LHD -	-	1	Enquire
-	9D33014K97AA	Duct Assembly, Aircon Footwell, LH, LHD	9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD -	-	1	Enquire
1	6G3304432BD	Duct Assembly, Windshield Deflector, RHD	6G3304432BD Duct Assembly, Windshield Deflector, RHD -	-	1	Enquire
2	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free -	-	4	Enquire
3	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP -	-	14	Enquire
4	4G4318C491AJ	Grille - Window Defrost	4G4318C491AJ Grille - Window Defrost -	-	2	Enquire
5	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk	6G3379231AC Screw, M3.5 x 38, Flat Hd Csk Screen Defog Grille	-	4	Enquire
6	4G43C046B80AC	SE I/PNL DEF OPG GRL	4G43C046B80AC SE I/PNL DEF OPG GRL -	-	4	Enquire
7	4G4319E658AC	Hose, A/C Window Demister	4G4319E658AC Hose, A/C Window Demister -	-	2	Enquire
8	4G4319E680AD	Connector, A/C Demister Hose	4G4319E680AD Connector, A/C Demister Hose -	-	2	Enquire
9	8D33046B30BB	Register Assembly, RH, Iridium Silver	8D33046B30BB Register Assembly, RH, Iridium Silver Iridium Silver with White Symbols	-	2	Enquire
10	8D33046B31BB	Register Assembly, LH, Iridium Silver	8D33046B31BB Register Assembly, LH, Iridium Silver Iridium Silver with White Symbols	-	2	Enquire
11	4G4318D404CA	FOAM SEAL - AIR DISTRIBUTION DUCTS	4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS -	-	4	Enquire
12	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw Register to IP	-	12	Enquire
13	8G4319C804AE	Duct Assembly, A/C Instrument Panel Centre to RH	8G4319C804AE Duct Assembly, A/C Instrument Panel Centre to RH -	-	1	Enquire
14	8G4319C805AE	Duct Assembly, A/C Instrument Panel Centre to LH	8G4319C805AE Duct Assembly, A/C Instrument Panel Centre to LH -	-	1	Enquire
15	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH Duct to Moulding	-	4	Enquire
16	8G4318D404BB	DCT ASY-HTR AIR DSTR	8G4318D404BB DCT ASY-HTR AIR DSTR -	-	1	Enquire
17	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL -	-	4	Enquire
18	9D33014K96AA	Duct Assembly, Aircon Footwell, RH, RHD	9D33014K96AA Duct Assembly, Aircon Footwell, RH, RHD -	-	1	Enquire
19	8G43014K97BB	Duct Assembly, Aircon Footwell, LH, RHD	8G43014K97BB Duct Assembly, Aircon Footwell, LH, RHD -	-	1	Enquire
21	8D3360302BB	Clip, Fir Tree, Flat Head	8D3360302BB Clip, Fir Tree, Flat Head -	-	1	Enquire
