Exhaust System

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Exhaust System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

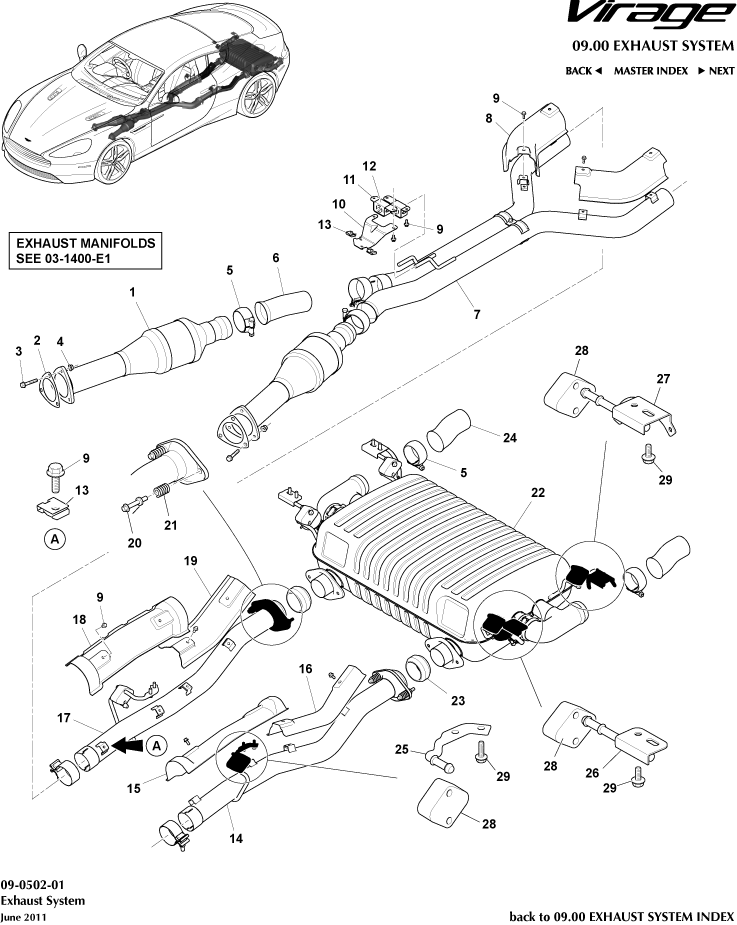

Exhaust System of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D335230BF
REAR MUFFLER & BYPASS VALVE ASSY
Option 		- 1 Enquire
- 4G435N201EC
Bracket, Exhaust Pipe Mounting, Intermediate RH
- 		- 1 Enquire
- 4G435N201AC
Mounting Bracket, Muffler, Front RH
- 		- 1 Enquire
1 8G435E211AD
Catalyst & Pipe Assembly
- 		- 2 Enquire
2 4G435E281AAPK
Gasket, Exhaust Manifold to Under Floor Catalytic Converter
Pack of 2 		- 1 Enquire
4 4G4302738AA
M8 NUT
- 		- 6 Enquire
7 4G435220EF
INTER PIPE - EXH CTR
Includes Clamp 		- 1 Enquire
13 699736
Clip, Exhaust Heatshields
- 		- 2 Enquire
14 4G435220BE
INTER PIPE - EXH LH
Includes Clamp 		- 1 Enquire
16 AD435G221CA
SHIELD ASSY EXHAUST SYSTEM REAR REAR
- 		- 1 Enquire
17 4G435220AE
INT PIPE - EXHAUST
Includes Clamp 		- 1 Enquire
19 AD435G221CA
SHIELD ASSY EXHAUST SYSTEM REAR REAR
- 		- 1 Enquire
22 4G435230FH
Muffler & Bypass Valve Assy
Standard 		- 1 Enquire
23 4G4317213BA
Sealing Ring Exhaust
- 		- 2 Enquire
25 4G435N201DC
Bracket, Exhaust Pipe Mounting, Intermediate LH
- 		- 1 Enquire
26 4G435N201FC
Mounting Bracket, Muffler, Front LH
- 		- 1 Enquire
29 703121
Screw, M8 x 25, Hex Flange Head
- 		- 12 Enquire
