Name: Transmission Oil Cooler Pipes
Rating: 4.2 (1 reviews)

Find Your Part

Transmission Oil Cooler Pipes of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

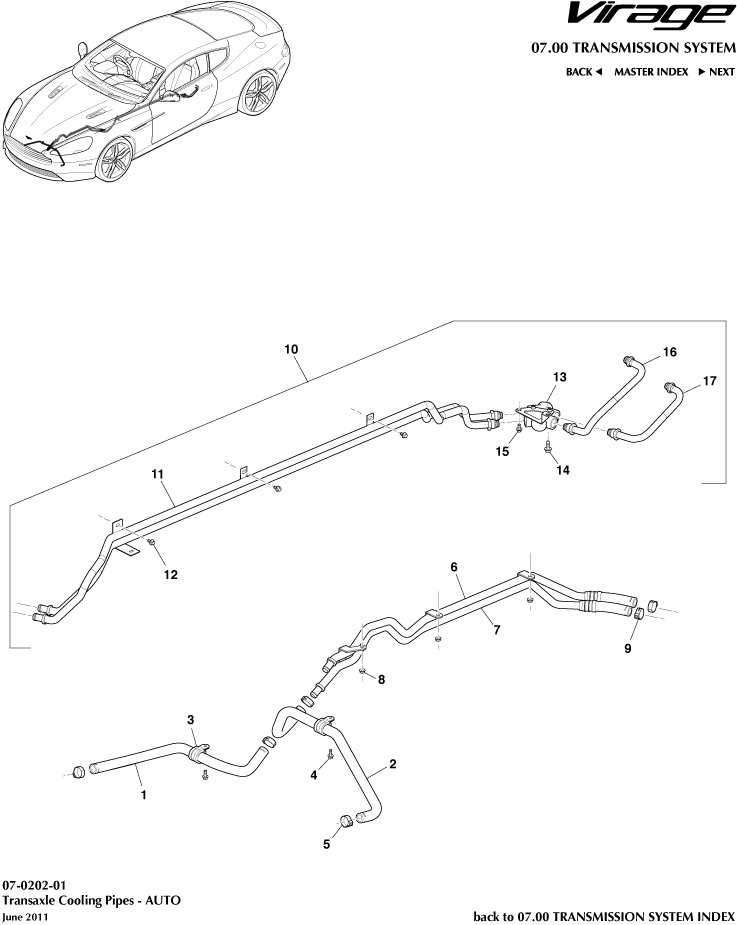

Aston Martin GT VIRAGE (2012-2013) - Transmission Oil Cooler Pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9D337F120BB	Hose, Transmission Oil Cooler Inlet	9D337F120BB Hose, Transmission Oil Cooler Inlet incl. P clips	-	1	Enquire
2	9D337F120AB	Hose, Transmission Oil Cooler Outlet	9D337F120AB Hose, Transmission Oil Cooler Outlet incl. P clips	-	1	Enquire
3	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	2	Enquire
4	703729	Screw, M6 x 16, Flange Hex Head	703729 Screw, M6 x 16, Flange Hex Head -	-	2	Enquire
5	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R -	-	4	Enquire
6	9G437W093AA	PIPE ASSEMBLY ENGINE BAY INLET	9G437W093AA PIPE ASSEMBLY ENGINE BAY INLET -	-	1	Enquire
7	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET -	-	1	Enquire
8	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	3	Enquire
9	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R -	-	2	Enquire
10	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION -	-	1	Enquire
11	22AB020GP	ASSY PNL BODYSIDE RR LWR LH	22AB020GP ASSY PNL BODYSIDE RR LWR LH -	-	1	Enquire
12	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	3	Enquire
13	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control -	-	1	Enquire
14	702298	BOLT M8x16 HEX FLG	702298 BOLT M8x16 HEX FLG -	-	1	Enquire
15	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
16	22AA531GP	ASSY PNL RR FENDER SUPPORT RH	22AA531GP ASSY PNL RR FENDER SUPPORT RH -	-	1	Enquire
17	22AA688GP	ASSY BRACKET SAB TO REAR FENDER RH	22AA688GP ASSY BRACKET SAB TO REAR FENDER RH -	-	1	Enquire
