Name: Transaxle, Auto
Rating: 5.0 (1 reviews)

Find Your Part

Transaxle, Auto of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

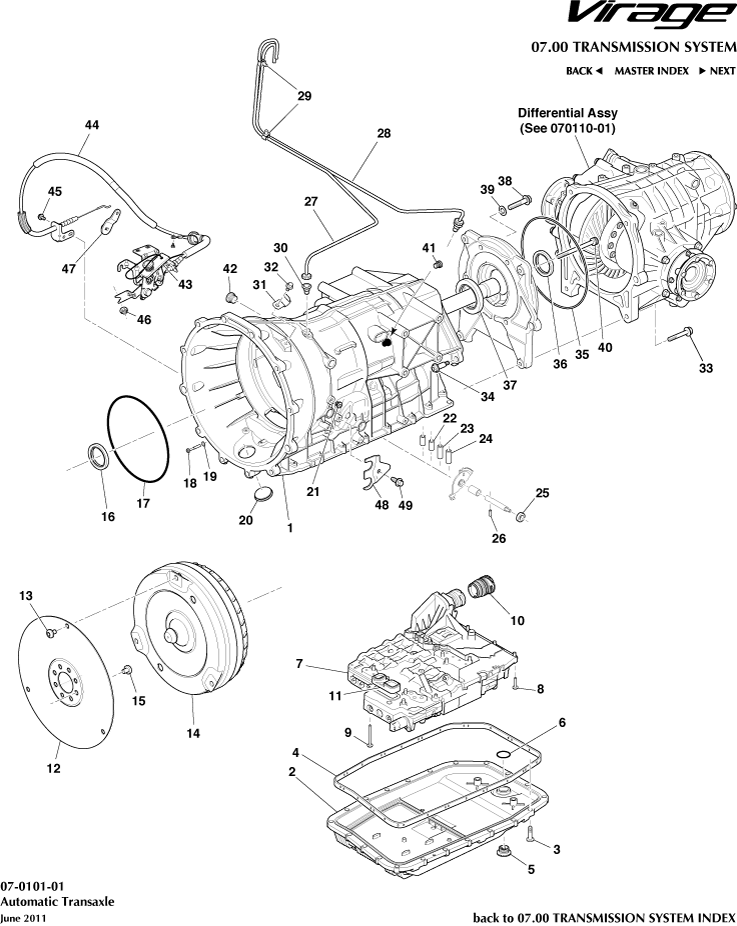

Aston Martin GT VIRAGE (2012-2013) - Transaxle, Auto

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4319A509AAS	Fluid, Auto Transmission, 1ltr	4G4319A509AAS Fluid, Auto Transmission, 1ltr -	-	A/R	Enquire
1	8G4370041AE	AUTO TRANS	8G4370041AE AUTO TRANS Incl item 14 torque conv. Item 40 must also be ordered.	-	1	Enquire
2	4G434210273	Oil Sump	4G434210273 Oil Sump -	-	1	Enquire
3	4G434210274	Screw, Torx Head	4G434210274 Screw, Torx Head -	-	21	Enquire
4	4G43184391AA	Transmission Sump Seal	4G43184391AA Transmission Sump Seal -	-	1	Enquire
5	4G434210277	SCREW PLUG -OIL SUMP	4G434210277 SCREW PLUG -OIL SUMP -	-	1	Enquire
6	4G437D741AA	Transmission Sump O ring	4G437D741AA Transmission Sump O ring -	-	1	Enquire
7	8G4314C247AA	HARDWARE TRANS CONTROL MODULE (ZF 6HP26)	8G4314C247AA HARDWARE TRANS CONTROL MODULE (ZF 6HP26) -	-	1	Enquire
8	4G43807199DA	Screw, M6 x 20, Torx Head	4G43807199DA Screw, M6 x 20, Torx Head -	-	3	Enquire
9	4G43807199CA	Screw, M6 x 59, Torx Head	4G43807199CA Screw, M6 x 59, Torx Head -	-	7	Enquire
10	4G437F183AA	Guide Sleeve, Transmission Controller	4G437F183AA Guide Sleeve, Transmission Controller -	-	1	Enquire
11	4G437H586AA	TRANSMISSION MECHATRONIC MODULE ADAPTOR	4G437H586AA TRANSMISSION MECHATRONIC MODULE ADAPTOR -	-	1	Enquire
12	4G436K375AA	FLEX PLATE - REAR	4G436K375AA FLEX PLATE - REAR -	-	1	Enquire
13	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK Flex plate to converter	-	3	Enquire
14	4G434210280	TORQUE CONVERTER	4G434210280 TORQUE CONVERTER -	-	1	Enquire
15	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK Flex plate to crankshaft	-	8	Enquire
16	4G437A238AA	TRANSMISSION INPUT SHAFT SEAL	4G437A238AA TRANSMISSION INPUT SHAFT SEAL -	-	1	Enquire
17	4G43184335AA	TRANSMISSION HOUSING O RING	4G43184335AA TRANSMISSION HOUSING O RING -	-	1	Enquire
18	4G43807199BA	TORX SCREW	4G43807199BA TORX SCREW -	-	13	Enquire
19	4G437L015AA	TRANSMISSION HOUSING WASHER	4G437L015AA TRANSMISSION HOUSING WASHER -	-	13	Enquire
20	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE -	-	1	Enquire
21	4G434210276	SCREW PLUG	4G434210276 SCREW PLUG -	-	1	Enquire
22	4G4329401AA	SEALING SLEEVE	4G4329401AA SEALING SLEEVE -	-	2	Enquire
23	4G4329401BA	SEALING SLEEVE	4G4329401BA SEALING SLEEVE -	-	2	Enquire
24	4G4329401CA	SEALING SLEEVE	4G4329401CA SEALING SLEEVE -	-	2	Enquire
25	4G437Z036AA	TRANSMISSION SELECTOR SHAFT SEAL	4G437Z036AA TRANSMISSION SELECTOR SHAFT SEAL -	-	1	Enquire
26	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover -	-	1	Enquire
27	4G437A245AA	TUBE ASSY - AUTO TRANSMISSION BREATHE	4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE -	-	1	Enquire
28	4G437A245BA	TUBE AUTOMATIC DIFFERENTIAL BREATHER	4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER -	-	1	Enquire
29	701565	CLIP 4-6 DUx6.5	701565 CLIP 4-6 DUx6.5 -	-	2	Enquire
30	4G437179AA	Plug, Transmission Breather	4G437179AA Plug, Transmission Breather -	-	1	Enquire
31	4G432860AB	CLIP P LOCK DISENGAGE CABLE	4G432860AB CLIP P LOCK DISENGAGE CABLE -	-	1	Enquire
32	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
33	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE -	-	4	Enquire
34	703182	BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE -	-	1	Enquire
35	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	4G437J271AB O Ring, Transmission Adapter Plate, Rear -	-	1	Enquire
36	4G434210979	Oil Seal, 60 x 44 x 7mm	4G434210979 Oil Seal, 60 x 44 x 7mm -	-	1	Enquire
37	4G434210267	OIL SEAL-TAIL SHAFT	4G434210267 OIL SEAL-TAIL SHAFT -	-	1	Enquire
38	MY8366913EDW	BK/SHL UPR ASY	MY8366913EDW BK/SHL UPR ASY -	-	5	Enquire
39	RY6313068CD	FENDER CARRIER RH	RY6313068CD FENDER CARRIER RH -	-	5	Enquire
40	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 ALWAYS REPLACE. DO NOT RE-USE. Must be ordered with new transmission	-	1	Enquire
41	4G434210278	SCREW PLUG	4G434210278 SCREW PLUG -	-	1	Enquire
42	4G434210279	SCREW PLUG	4G434210279 SCREW PLUG -	-	1	Enquire
43	9D337J168CB	BRKT ASSY AUTO PARK BRAKE RELEASE	9D337J168CB BRKT ASSY AUTO PARK BRAKE RELEASE -	-	1	Enquire
44	9D337J167CB	Cable Assy, Park Brake Release	9D337J167CB Cable Assy, Park Brake Release -	-	1	Enquire
45	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
46	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	4	Enquire
47	4G437A257AB	Lever Arm, Auto Transmission to Disengage P Lock	4G437A257AB Lever Arm, Auto Transmission to Disengage P Lock -	-	4	Enquire
48	9G437B147AA	Clamp, Oil Cooler Pipes	9G437B147AA Clamp, Oil Cooler Pipes -	-	1	Enquire
49	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE -	-	1	Enquire
