Rear Suspension Assembly

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

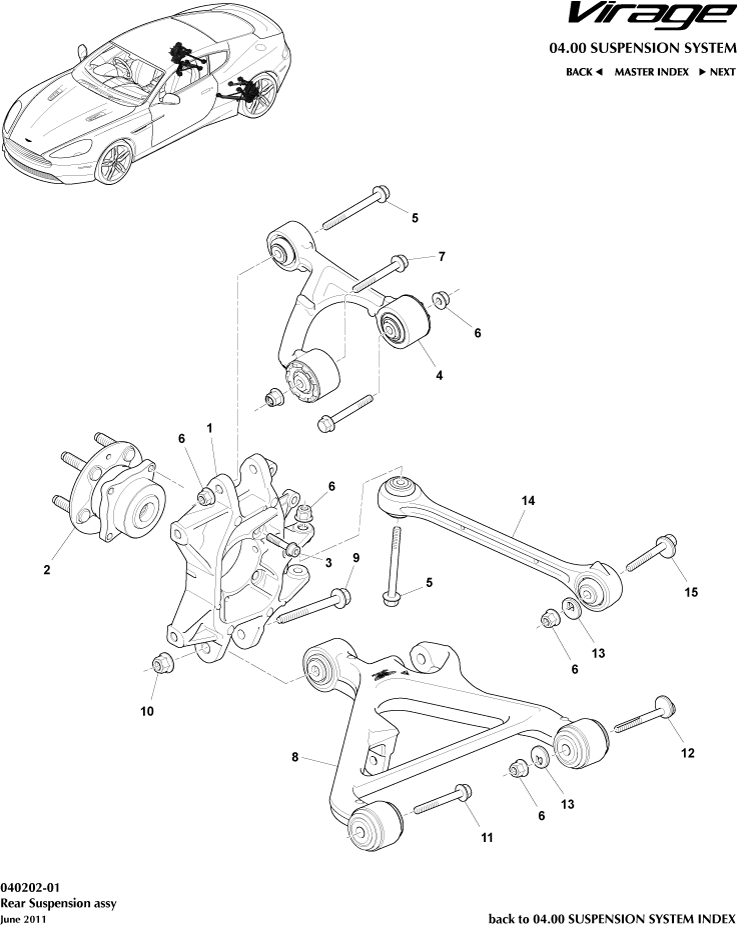

Rear Suspension Assembly of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D335A971AB
KNUCKLE - REAR WHEEL LH
- 		- 1 Enquire
- 8D335K742AB
ARM & BUSHING ASSY REAR SUSPENSION UPPER RH
- 		- 1 Enquire
- 6G335B530AD
ARM & BSHG ASY-RR LW
- 		- 1 Enquire
1 8D335A970AB
KNUCKLE - REAR WHEEL RH
- 		- 1 Enquire
2 4G432B663AD
HUB & BEARING ASSEMBLY, FRONT
- 		- 2 Enquire
3 4G430783AA
BOLT M10X55.1.25 GRD
- 		- 8 Enquire
4 8D335K743AB
ARM & BUSHING REAR SUSPENSION UPPER LH
- 		- 1 Enquire
5 AD33487029AA
Bolt, M12 x 110, Hex Flange Head
- 		- 4 Enquire
6 703565
NUT-M12 HEX FLANGE
- 		- 12 Enquire
7 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE
- 		- 4 Enquire
8 6G335B531AD
ARM & BUSH ASSY REAR
- 		- 1 Enquire
9 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
- 		- 2 Enquire
10 701337PK
Nut-M14 Hex Flange P/T PLAS 10 Pack of 10
- 		- 2 Enquire
11 703180
BOLT M12 x 90 HEX FLNG 10 CHROME FREE
- 		- 2 Enquire
12 703274
Bolt, M12, Eccentric
- 		- 2 Enquire
13 4G432610840
Washer, M12, Eccentric
- 		- 4 Enquire
14 BG435B551AA
Arm Assy, Rear Toe Control
- 		- 2 Enquire
15 4G435K978AB
Bolt, M12, Eccentric
- 		- 2 Enquire
