Electrical Wiring & Protection - Engine Bay Fusebox of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

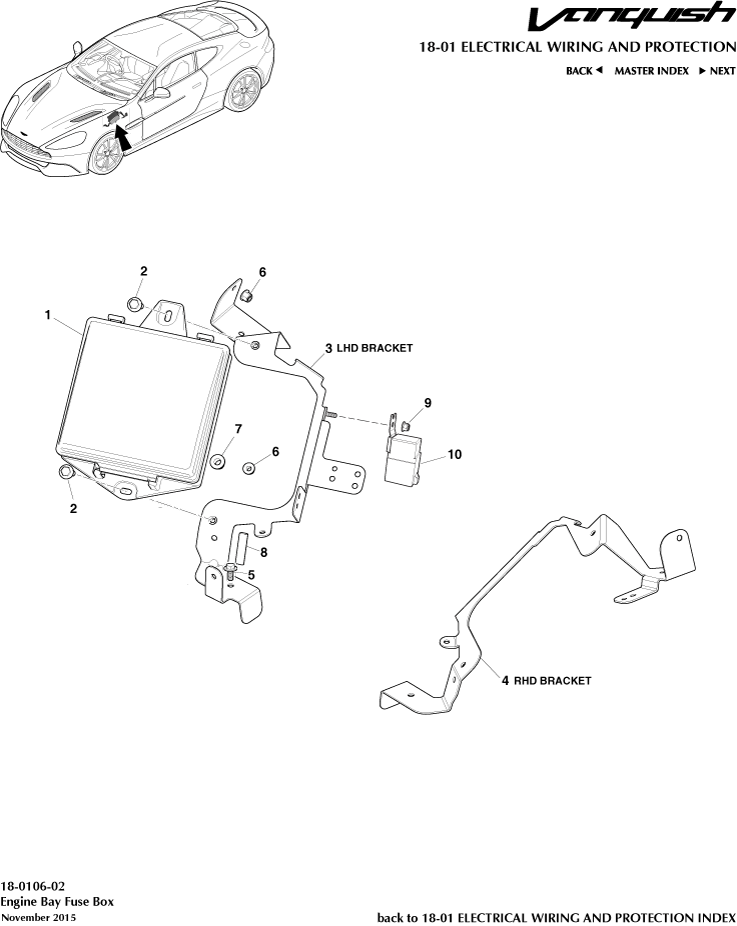

Aston Martin GT VANQUISH (2013-2018) - Electrical Wiring & Protection - Engine Bay Fusebox

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD4314A173CA	ENG BAY F/BOX BRKT	FD4314A173CA ENG BAY F/BOX BRKT From VIN: J01746. For vehicles with A/C Gas R134a only	-	1	Enquire
-	FD4314A173CB	ENG BAY F/BOX BRKT	FD4314A173CB ENG BAY F/BOX BRKT For vehicles with A/C Gas HFO1234a only	-	1	Enquire
-	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 From VIN: J01770. For vehicles with A/C Gas R134a only	-	1	Enquire
-	FD4314A173BB	ENG BAY F/BOX BRKT	FD4314A173BB ENG BAY F/BOX BRKT For vehicles with A/C Gas HFO1234a only	-	1	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR -	-	1	Enquire
-	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A -	-	1	Enquire
-	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A -	-	1	Enquire
-	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A -	-	1	Enquire
-	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A -	-	1	Enquire
-	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A -	-	1	Enquire
-	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A -	-	1	Enquire
-	HY533710002	FUSE 40 AMP-ORANGE	HY533710002 FUSE 40 AMP-ORANGE -	-	1	Enquire
1	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay -	-	1	Enquire
2	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) -	-	2	Enquire
3	4G4314A173CH	ENG BAY F/BOX BRKT	4G4314A173CH ENG BAY F/BOX BRKT -	-	1	Enquire
4	DG4314A173BA	ENG BAY F/BOX BRKT	DG4314A173BA ENG BAY F/BOX BRKT -	-	1	Enquire
5	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
7	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 Pack of 5	-	1	Enquire
8	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 -	-	1	Enquire
9	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	1	Enquire
10	6G3314N089BA	SECONDARY AIR INJECTION HIGH POWER RELAY	6G3314N089BA SECONDARY AIR INJECTION HIGH POWER RELAY -	-	1	Enquire
