Electrical Wiring & Protection - Battery Cables of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Electrical Wiring & Protection - Battery Cables

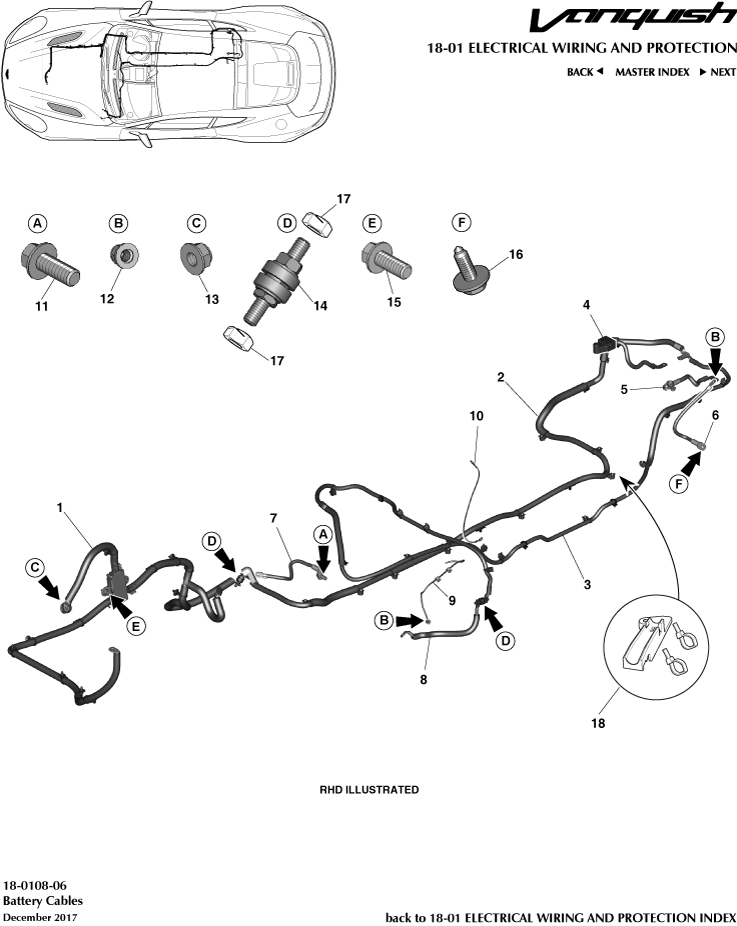

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3314B278LB	Cable, BDS to Bulkhead Stud/CEM, LHD	CD3314B278LB Cable, BDS to Bulkhead Stud/CEM, LHD -	-	1	Enquire
-	4G43E820201AA	M8 HALF NUT HEX BRASS	4G43E820201AA M8 HALF NUT HEX BRASS -	-	2	Enquire
1	DG4310C310AB	Harness Assy, Transfer Stud to Starter/Alternator/Jump point	DG4310C310AB Harness Assy, Transfer Stud to Starter/Alternator/Jump point -	-	1	Enquire
2	CD3314305AB	Harness Assy, BDS to Bulkhead Stud, Dirty Feed	CD3314305AB Harness Assy, BDS to Bulkhead Stud, Dirty Feed -	-	1	Enquire
3	CD3314B278MB	Cable, BDS to Bulkhead Stud/CEM, RHD	CD3314B278MB Cable, BDS to Bulkhead Stud/CEM, RHD -	-	1	Enquire
4	4G4314300AD	Cable Assembly, Battery to BDS	4G4314300AD Cable Assembly, Battery to BDS -	-	1	Enquire
5	4G4314301AD	Cable Assembly, Battery to GND	4G4314301AD Cable Assembly, Battery to GND -	-	1	Enquire
6	DD3314A280AB	Earth Braid, Transmission to Body	DD3314A280AB Earth Braid, Transmission to Body -	-	1	Enquire
8	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	4G4314B278DD Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box -	-	1	Enquire
10	AG4313N850AA	Harness, Earth Fuel Filler	AG4313N850AA Harness, Earth Fuel Filler -	-	1	Enquire
11	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE -	-	1	Enquire
12	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head -	-	2	Enquire
13	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head -	-	1	Enquire
14	9G4310A752AA	TERMINAL POST ASSY	9G4310A752AA TERMINAL POST ASSY -	-	2	Enquire
15	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	2	Enquire
16	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	7G33108256AA Screw, M8 x 21mm, Hex Flange Head -	-	1	Enquire
17	9G43E820201AA	NUT HEX SPCL BRASS M8 BINX	9G43E820201AA NUT HEX SPCL BRASS M8 BINX -	-	2	Enquire
18	GD333710114	ROUTING BLOCK KIT	GD333710114 ROUTING BLOCK KIT Up to VIN J02846 Coupe, VIN K00921 to K02152 Volante	-	1	Enquire
