Fuel Tank Assy

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Fuel Tank Assy

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

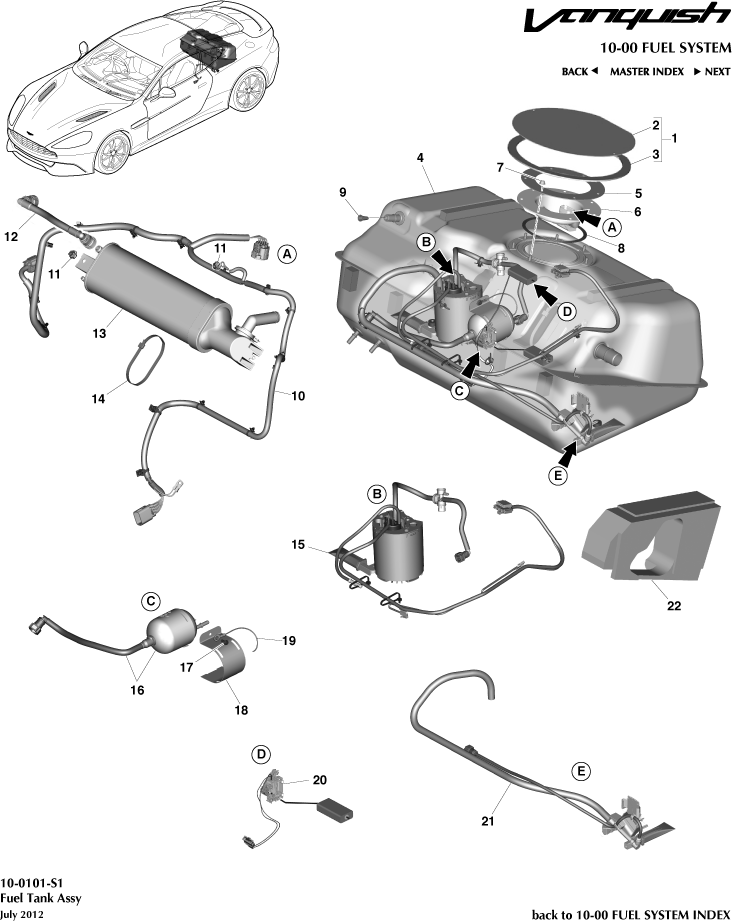

Fuel Tank Assy of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- FD339C133AB
FUEL TANK
From 15MY 		- 1 Enquire
1 CD339074AA
Plate Assy, Fuel Tank Cover
Includes Items 2 and 3 		- 1 Enquire
2 CD339074BA
Plate, Fuel Tank Cover
No longer availble. See item 1 		- N/A Enquire
3 CD339073BA
Gasket, Fuel Tank Cover Plate
No longer availble. See item 1 		- N/A Enquire
4 CD339C133AE
Tank and Canister Assy, Fuel
Up to 15MY 		- 1 Enquire
6 CD339A309AA
Cover, Fuel Tank, Service
- 		- 1 Enquire
7 703169
NUT - M6 HEX FLANGE CHROME FREE
- 		- 7 Enquire
8 4G439073AA
Gasket, Fuel Tank Service Cover
-
ARRIVING SOON 		- 1 Enquire
9 DG439155AA
Vapour Filter, Fuel Tank
- 		- 1 Enquire
10 DG4314407AD
Harness, Fuel Tank, Single Fuel Pump
- 		- 1 Enquire
11 697177
Nut, M6, Flanged
- 		- 2 Enquire
12 BG434090AA
Hose Assembly
- 		- 1 Enquire
13 BG439D653AA
BRKT FU/VPR STRG CN
- 		- 1 Enquire
14 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 1 Enquire

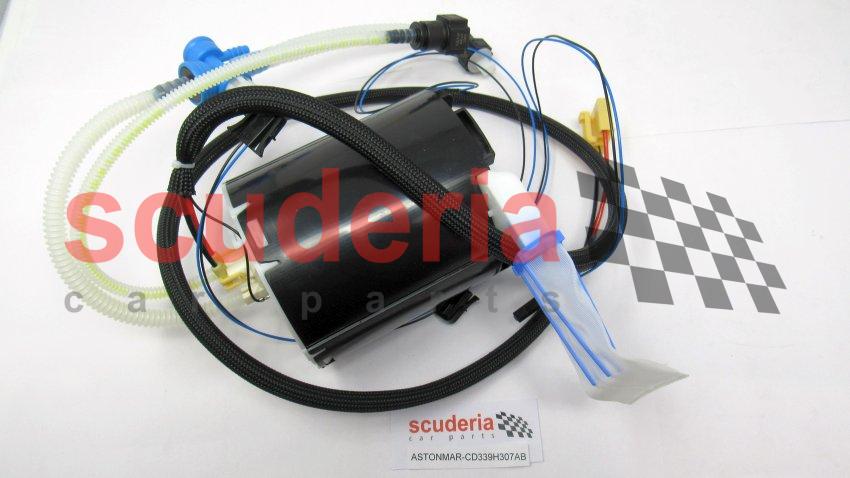

15 CD339H307AB
Pump And Reservoir
- 		- 1 Enquire

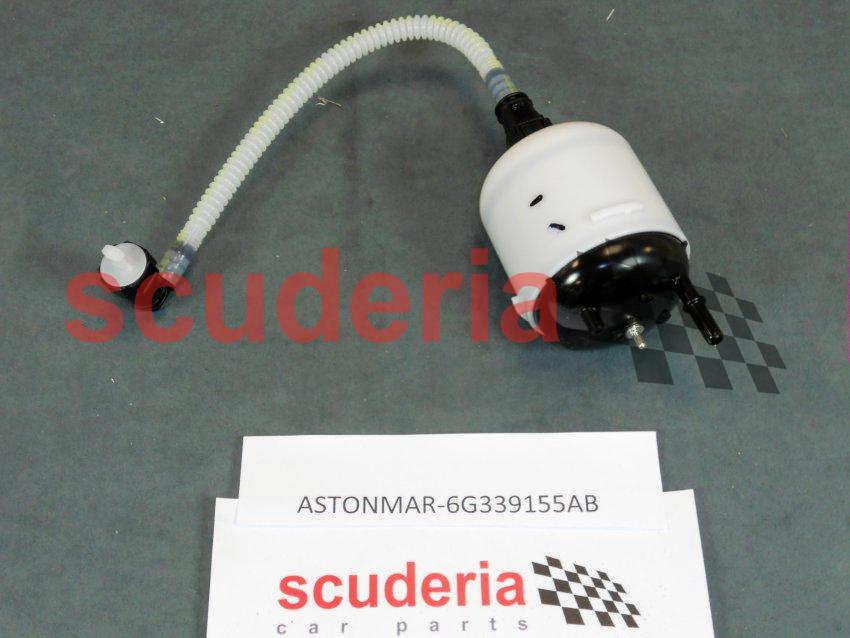

16 6G339155AB
Fuel Filter RH
- 		- 1 Enquire
17 702082
Bolt, Self Locking, M5 x 16
- 		- 1 Enquire
19 6G3366991AB
Earth Wire
- 		- 1 Enquire

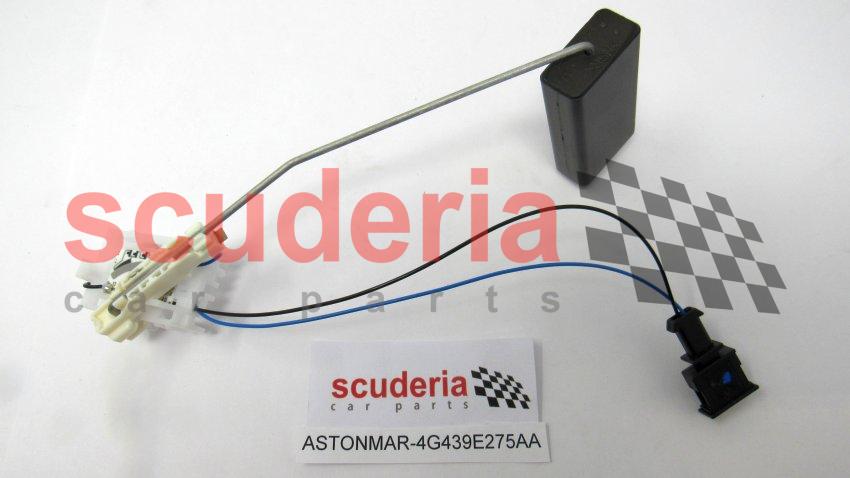

20 4G439E275AA
Sensor - Fuel Tank Sender
- 		- 1 Enquire
21 CD339275AA
Jet Pump Module Assembly
- 		- 1 Enquire
22 DG4348781AA
Fuel Tank Packer
14.5MY 		- 1 Enquire
