Aston Martin GT RAPIDE (2010-2019) - Rear Seat Entertainment

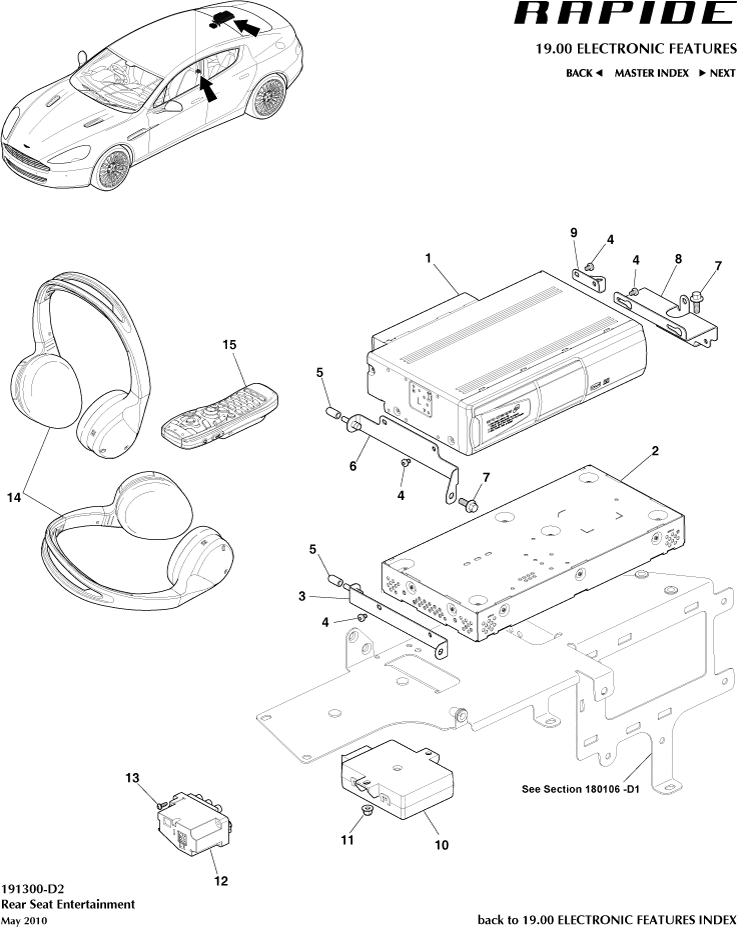

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AH4219C043BA	RSE DVD CHANGER REGION 2 PAL	AH4219C043BA RSE DVD CHANGER REGION 2 PAL -	-	1	Enquire
-	AH4219C043CA	RSE DVD CHANGER REGION 2 NTSC	AH4219C043CA RSE DVD CHANGER REGION 2 NTSC -	-	1	Enquire
-	AH4219C043DA	RSE DVD CHANGER REGION 3 PAL	AH4219C043DA RSE DVD CHANGER REGION 3 PAL -	-	1	Enquire
-	AH4219C043EA	RSE DVD CHANGER REGION 4 PAL	AH4219C043EA RSE DVD CHANGER REGION 4 PAL -	-	1	Enquire
-	AH4219C043FA	DVD player, CR 5	AH4219C043FA DVD player, CR 5 -	-	1	Enquire
-	AH4219C043GA	RSE DVD CHANGER REGION 6 PAL	AH4219C043GA RSE DVD CHANGER REGION 6 PAL -	-	1	Enquire
-	AD4319C084AA	RSE HEADPHONE BAG	AD4319C084AA RSE HEADPHONE BAG "Rapide", Not Illustrated	-	1	Enquire
-	FD4319C084AA	RSE HP BAG	FD4319C084AA RSE HP BAG "Rapide S", Not Illustrated	-	1	Enquire
1	AH4219C043AA	RSE DVD CHANGER REGION 1 NTSC	AH4219C043AA RSE DVD CHANGER REGION 1 NTSC -	-	1	Enquire
2	AH4219A164AB	RSE IF BOX	AH4219A164AB RSE IF BOX -	-	1	Enquire
3	AD4319G292AA	BRKT IFBOX LH	AD4319G292AA BRKT IFBOX LH -	-	1	Enquire
4	703176	SCREW M4x6 CHROME FREE	703176 SCREW M4x6 CHROME FREE -	-	10	Enquire
5	4G43277B34AA	CAP STUD	4G43277B34AA CAP STUD -	-	2	Enquire
6	AD4319G292CA	BRACKET DVD	AD4319G292CA BRACKET DVD -	-	1	Enquire
7	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	3	Enquire
8	AD4319G292BA	BRKT IF BOX RH	AD4319G292BA BRKT IF BOX RH -	-	1	Enquire
9	AD4314W163AA	DVD HARNESS SUPPORT BRACKET	AD4314W163AA DVD HARNESS SUPPORT BRACKET -	-	1	Enquire
10	AD4319A164BC	HEADPHONE OUTPUT MOD	AD4319A164BC HEADPHONE OUTPUT MOD -	-	1	Enquire
11	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	2	Enquire
12	XVN500020	Aux input	XVN500020 Aux input Up To 15MY	-	1	Enquire
13	AD4319G406AA	SCREW-TORX M3 x 16 PAN HD	AD4319G406AA SCREW-TORX M3 x 16 PAN HD -	-	4	Enquire
14	AD4319C057AA	RSE WIRELESS H/PHONE	AD4319C057AA RSE WIRELESS H/PHONE Up To 15MY	-	2	Enquire
14	FD4319C057AA	RSE WIRELESS H/PHONE	FD4319C057AA RSE WIRELESS H/PHONE From 15MY	-	2	Enquire
15	XH4214K147AA	RSE REMOTE	XH4214K147AA RSE REMOTE -	-	1	Enquire
