Navigation Module, 12MY on of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Navigation Module, 12MY on

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

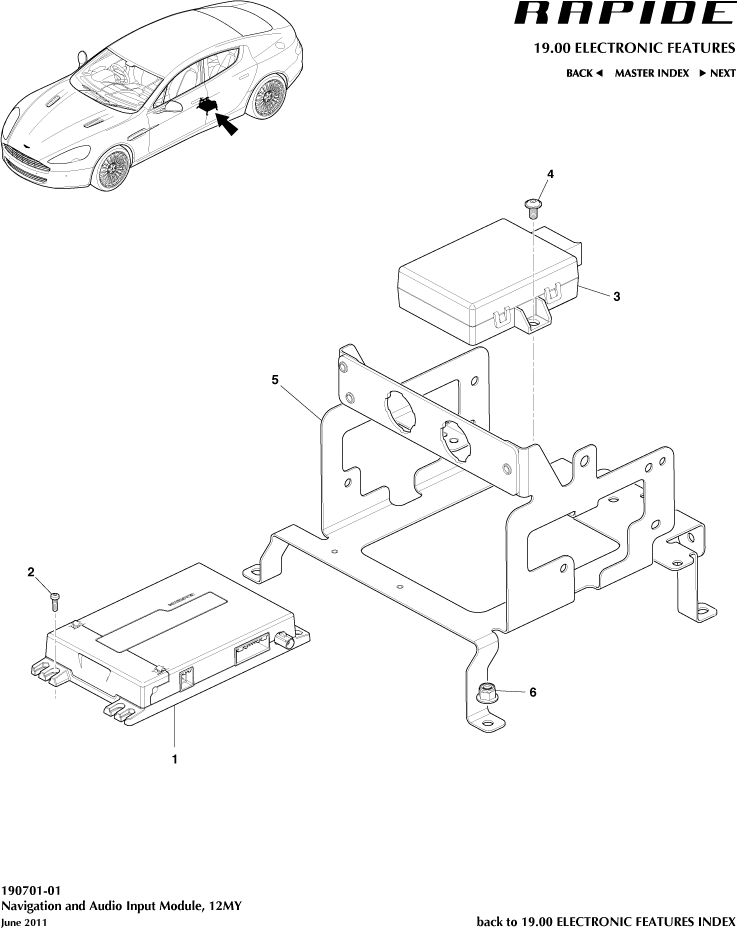

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4310E887BF	GVN54 UNIT NA	CG4310E887BF GVN54 UNIT NA -	-	1	Enquire
-	CG4310E887CF	GVN 54 UNIT	CG4310E887CF GVN 54 UNIT No software, without SD-Card	-	1	Enquire
-	CG4310E887EF	GVN54 UNIT S/AM	CG4310E887EF GVN54 UNIT S/AM -	-	1	Enquire
-	CG4310E887FF	GVN54 UNIT CHINA	CG4310E887FF GVN54 UNIT CHINA -	-	1	Enquire
-	CG4310E887GF	GVN54 UNIT SE/AS	CG4310E887GF GVN54 UNIT SE/AS -	-	1	Enquire
-	CG4310E887HF	GVN54 UNIT M/E	CG4310E887HF GVN54 UNIT M/E -	-	1	Enquire
-	CG4310E887JF	GVN54 UNIT RUSSIA	CG4310E887JF GVN54 UNIT RUSSIA -	-	1	Enquire
-	CG4310E887KF	GVN54 UNIT S/A	CG4310E887KF GVN54 UNIT S/A -	-	1	Enquire
-	CG4310E887LF	GVN54 UNIT JAPAN	CG4310E887LF GVN54 UNIT JAPAN -	-	1	Enquire
-	CG4310E887MF	GVN54 UNIT TAIWAN	CG4310E887MF GVN54 UNIT TAIWAN -	-	1	Enquire
-	CG4310E887NF	GVN54 UNIT TURKEY	CG4310E887NF GVN54 UNIT TURKEY -	-	1	Enquire
-	CG4310E887PF	GVN54 UNIT AU/NZ	CG4310E887PF GVN54 UNIT AU/NZ -	-	1	Enquire
-	CG4310E887RF	GVN54 UNTI INDIA	CG4310E887RF GVN54 UNTI INDIA -	-	1	Enquire
-	CG4310E898AJ	GVN54 MAP EUROPE	CG4310E898AJ GVN54 MAP EUROPE 2018 mapping	-	1	Enquire
-	CG4310E898BJ	GVN54 MAP N AMERICA	CG4310E898BJ GVN54 MAP N AMERICA 2018 mapping	-	1	Enquire
-	CG4310E898CH	GV54 MAP	CG4310E898CH GV54 MAP 2017 mapping	-	1	Enquire
-	CG4310E898DJ	GVN54 MAP	CG4310E898DJ GVN54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898EJ	GVN54 MAP	CG4310E898EJ GVN54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898FJ	GVN54 MAP	CG4310E898FJ GVN54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898GJ	GVN 54 MAP	CG4310E898GJ GVN 54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898HJ	GVN54 MAP	CG4310E898HJ GVN54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898JJ	GVN54 MAP STH AFRICA	CG4310E898JJ GVN54 MAP STH AFRICA 2018 mapping	-	1	Enquire
-	CG4310E898KJ	GVN54 MAP	CG4310E898KJ GVN54 MAP 2018 mapping	-	1	Enquire
-	CG4310E898LH	GVN 54 MAP	CG4310E898LH GVN 54 MAP 2017 mapping	-	1	Enquire
-	CG4310E898MH	GVN54 MAP	CG4310E898MH GVN54 MAP 2017 mapping	-	1	Enquire
-	CG4310E898PH	GV54 MAP	CG4310E898PH GV54 MAP 2017 mapping	-	1	Enquire
1	CG4310E887AF	GVN54 UNIT EU	CG4310E887AF GVN54 UNIT EU -	-	1	Enquire
2	CG43505504S437	Screw, M3 x 10, Torx Pan Head	CG43505504S437 Screw, M3 x 10, Torx Pan Head -	-	4	Enquire
3	CG4319A164AB	Module, Audio Input	CG4319A164AB Module, Audio Input -	-	1	Enquire
4	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx -	-	2	Enquire
5	11AA108CP	BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706 -	-	1	Enquire
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	4	Enquire
