Navigation Display, Garmin, 12My

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Navigation Display, Garmin, 12MY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

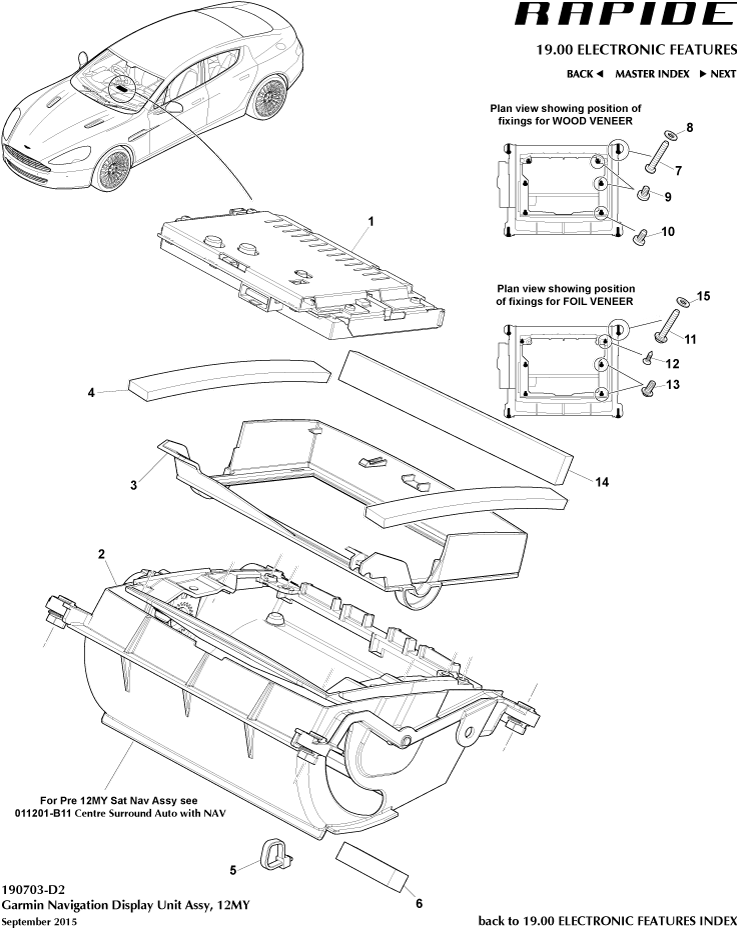

Navigation Display, Garmin, 12MY of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ED3310E889AA
Display Unit, Navigation
- 		- 1 Enquire
2 CG4310E990AD
Support Assembly, Nav Screen
- 		- 1 Enquire
3 CG4318C918AB
Bezel, Navigation Screen
- 		- 1 Enquire
4 CG433G4610AA
Foam Strip, Navigation Screen Assy
- 		- 2 Enquire
5 3790075
Cable Tie, 290mm
- 		- 1 Enquire
6 8D3319H474AA
ANTI RATTLE HOLDER TRANSMISSION VEHICLE
- 		- 1 Enquire
7 CG4356382AB
SCREW-M4 x 22 PAN CLLR 6 LOBE TR
Wood Veneer Only 		- 4 Enquire
8 703756
WASHER-M4 PLAIN
Wood Veneer Only 		- 4 Enquire
9 22AA804GP
ASSY BRKT RR FENDER RR LH
Wood Veneer Only 		- 4 Enquire
10 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
Wood Veneer Only 		- 2 Enquire
11 CG4356383AA
SCREW M4 x 22 PAN CLR 6 LOBE TFP PT
Foil Veneer Only 		- 4 Enquire
12 703024
Screw M4x3/8 Csk
Foil Veneer Only 		- 2 Enquire
13 4G4380899AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)
Foil Veneer Only 		- 4 Enquire
14 DD3380B225AA
SAT NAV GAP HIDER
- 		- 1 Enquire
15 9D3346662AA
Washer, 14mm, 43 ID 14 OD 0.8 Thk
- 		- 4 Enquire
