IP Harness of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

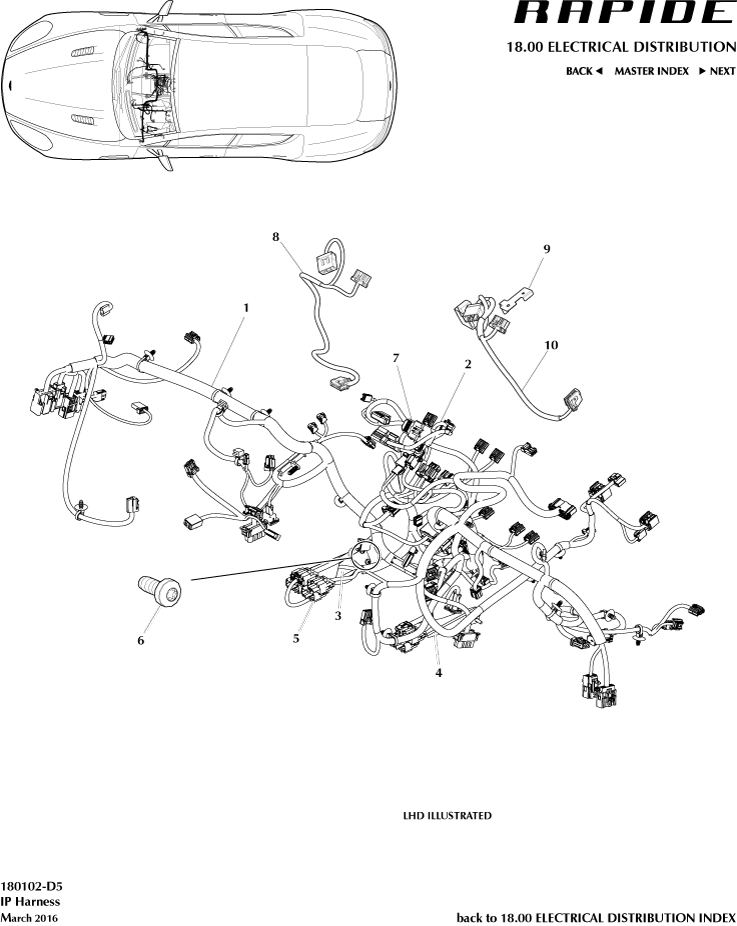

Aston Martin GT RAPIDE (2010-2019) - IP Harness

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD4314401CC	LHD FACIA HIGHLINE HARNESS B&O	CD4314401CC LHD FACIA HIGHLINE HARNESS B&O From 12MY to 14MY, Rapide	-	1	Enquire
-	DG4314401AD	LHD B&O FACIA HRNS	DG4314401AD LHD B&O FACIA HRNS From 14MY, Rapide S	-	1	Enquire
-	13A5522CP	LONGITUDINAL CRASH STRUCTURE - FRONT - LH	13A5522CP LONGITUDINAL CRASH STRUCTURE - FRONT - LH From 19MY, Rapide AMR. ASK Audio	-	1	Enquire
-	KD4314401AB	LHD FACIA HRNS	KD4314401AB LHD FACIA HRNS From 19MY, Rapide AMR. B and O	-	1	Enquire
-	AD4314401AC	RHD FACIA HIGHLINE HARNESS	AD4314401AC RHD FACIA HIGHLINE HARNESS Up To 12MY	-	1	Enquire
-	CD4314401AC	Harness assy, facia B&O, RHD	CD4314401AC Harness assy, facia B&O, RHD From 12MY to 14MY, Rapide	-	1	Enquire
-	DG4314K024AD	RHD B&O FACIA HRN	DG4314K024AD RHD B&O FACIA HRN From 14MY, Rapide S	-	1	Enquire
-	13A1309CP	SUBFRAME - FRONT	13A1309CP SUBFRAME - FRONT From 19MY, Rapide AMR. B and O	-	1	Enquire
-	13AA829CP	SUBFRAME - FRONT	13AA829CP SUBFRAME - FRONT From 19MY, Rapide AMR. ASK Audio	-	1	Enquire
-	CD4314B079AC	CENTRE STACK HARNESS	CD4314B079AC CENTRE STACK HARNESS From 12MY To 14MY, Rapide	-	1	Enquire
-	DD4314B079AC	CENTRE STACK HARNESS	DD4314B079AC CENTRE STACK HARNESS From 14MY To 16MY, Rapide S	-	1	Enquire
-	GD4314B079AC	CENTRE STACK	GD4314B079AC CENTRE STACK From 16MY	-	1	Enquire
-	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9 From 19MY, Rapide AMR	-	1	Enquire
-	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel Pack of 10	-	1	Enquire
1	AD4314401CC	LHD FACIA HIGHLINE HARNESS	AD4314401CC LHD FACIA HIGHLINE HARNESS Up To 12MY	-	1	Enquire
2	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link -	-	1	Enquire
3	9D3314N003AA	Inline bracket, Instrument Panel (IP), RHS	9D3314N003AA Inline bracket, Instrument Panel (IP), RHS -	-	1	Enquire
4	9D3314N003BA	B&O LHS IP BRKT	9D3314N003BA B&O LHS IP BRKT -	-	1	Enquire
5	AD4314B079AC	CENTRE STACK HARNESS	AD4314B079AC CENTRE STACK HARNESS Up To 12MY	-	1	Enquire
6	703735	Screw, M5 x 12, Pan Head	703735 Screw, M5 x 12, Pan Head -	-	4	Enquire
7	CG4314D454BC	Link Harness, Garmin Sat Nav	CG4314D454BC Link Harness, Garmin Sat Nav Up to 16MY	-	1	Enquire
8	DD339137AB	Link Assembly, Tracker	DD339137AB Link Assembly, Tracker -	-	1	Enquire
9	HG3314B544AB	TRACKER FUSE BRKT	HG3314B544AB TRACKER FUSE BRKT From 17MY	-	1	Enquire
10	HG439137AA	TRACKER LINK	HG439137AA TRACKER LINK From 17MY	-	1	Enquire
