Fuse Panels of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Fuse Panels

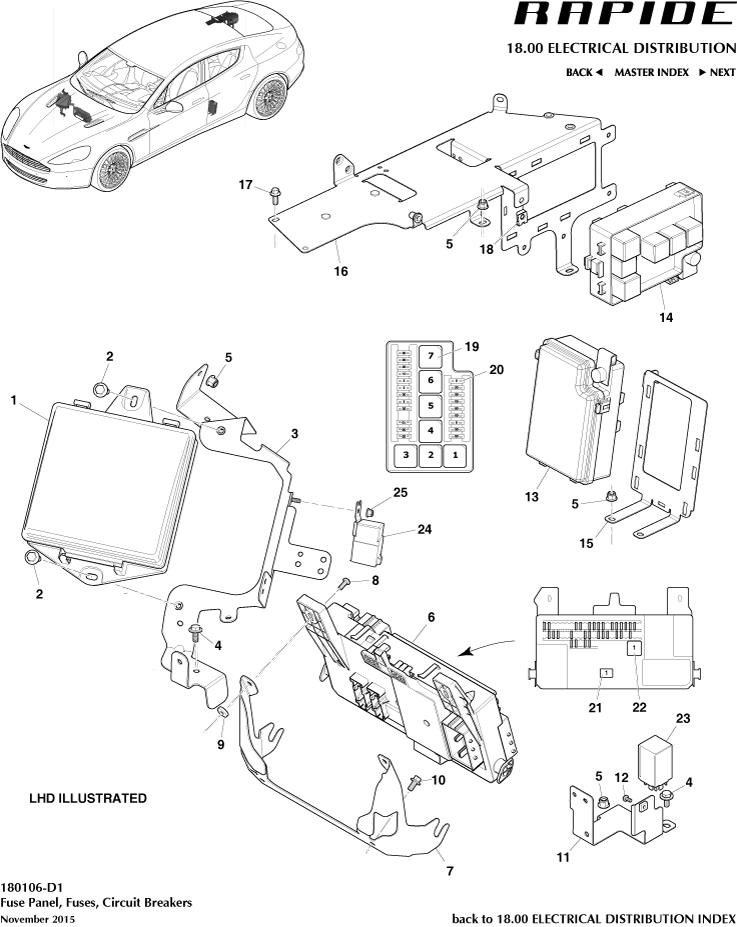

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay 12MY onwards	-	1	Enquire
-	FD4314A173CB	ENG BAY F/BOX BRKT	FD4314A173CB ENG BAY F/BOX BRKT For vehicles with A/C Gas HFO1234a only	-	1	Enquire
-	8D3314N072BD	Bracket, Fuse Box, RHD	8D3314N072BD Bracket, Fuse Box, RHD -	-	1	Enquire
-	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 Bracket, Fusebox mounting	-	1	Enquire
-	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Rapide S	-	1	Enquire
-	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A 257 005	-	-	Enquire
-	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A 257 07.5	-	-	Enquire
-	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A 257 010	-	-	Enquire
-	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A 257 015	-	-	Enquire
-	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A 257 020	-	-	Enquire
-	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A 257 025	-	-	Enquire
-	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A 257 030	-	-	Enquire
-	HY533710002	FUSE 40 AMP-ORANGE	HY533710002 FUSE 40 AMP-ORANGE -	-	-	Enquire
1	AD4314A173AA	ENGINE BAY FUSEBOX	AD4314A173AA ENGINE BAY FUSEBOX -	-	1	Enquire
6	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM Order 702802 Car Config when ordering CEM	-	1	Enquire
7	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM -	-	1	Enquire
8	701449	SCREW M5x12 8.8	701449 SCREW M5x12 8.8 -	-	2	Enquire
9	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	2	Enquire
10	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	2	Enquire
11	8D3314N072AE	Bracket, Fuse Box, LHD	8D3314N072AE Bracket, Fuse Box, LHD -	-	1	Enquire
12	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK -	-	1	Enquire
13	AD4314A074AA	UNDERSEAT FUSEBOX	AD4314A074AA UNDERSEAT FUSEBOX -	-	1	Enquire
14	AD4314A073AB	REAR FUSEBOX	AD4314A073AB REAR FUSEBOX -	-	1	Enquire
15	AD4314A301BB	UNDERSEAT FUSEBOX BRACKET MOUNTING	AD4314A301BB UNDERSEAT FUSEBOX BRACKET MOUNTING -	-	1	Enquire
16	AD4314A301AC	BRACKET REAR FUSEBOX MOUNTING	AD4314A301AC BRACKET REAR FUSEBOX MOUNTING -	-	1	Enquire
17	703729	Screw, M6 x 16, Flange Hex Head	703729 Screw, M6 x 16, Flange Hex Head Rear fusebox bracket	-	4	Enquire
18	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 -	-	1	Enquire
20	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR -	-	-	Enquire
23	AD433F826AA	MODULE-PWR STRG	AD433F826AA MODULE-PWR STRG -	-	1	Enquire
24	6G3314N089BA	SECONDARY AIR INJECTION HIGH POWER RELAY	6G3314N089BA SECONDARY AIR INJECTION HIGH POWER RELAY -	-	1	Enquire
25	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	1	Enquire
