Body Harness of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

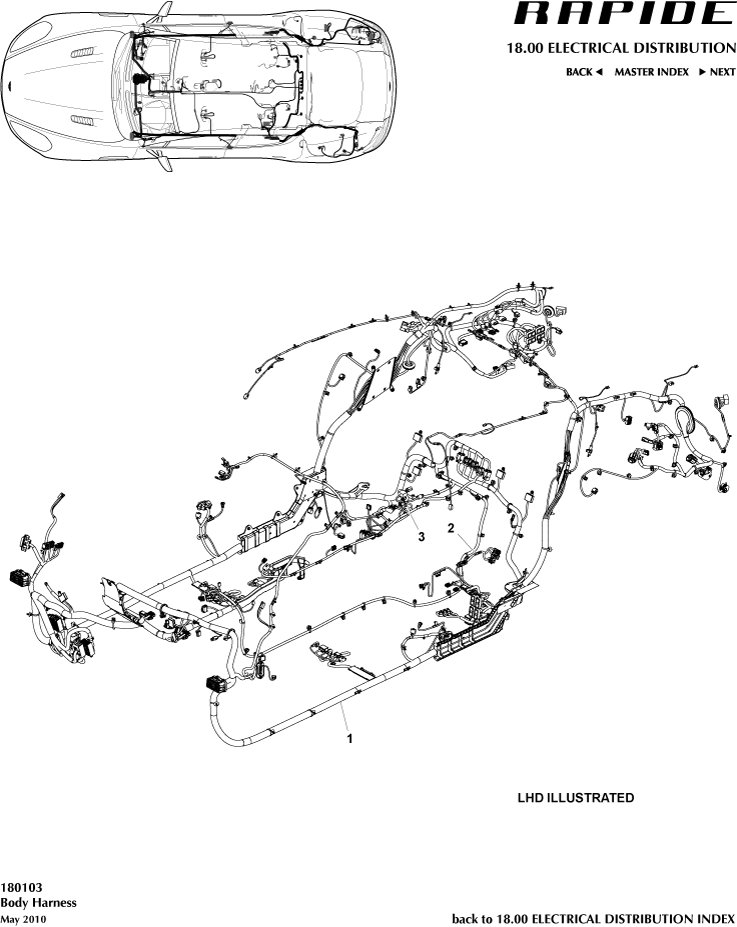

Aston Martin GT RAPIDE (2010-2019) - Body Harness

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD4314A005AE	RHD CABIN COUPE HARNESS B & O AND RSE	AD4314A005AE RHD CABIN COUPE HARNESS B & O AND RSE 10MY, With RSE	-	1	Enquire
-	BD4314A005BA	LHD CABIN COUPE HARNESS B&O AND RSE	BD4314A005BA LHD CABIN COUPE HARNESS B&O AND RSE 11MY, With RSE	-	1	Enquire
-	BD4314A005AA	RHD CABIN COUPE HARN	BD4314A005AA RHD CABIN COUPE HARN 11MY, With RSE	-	1	Enquire
-	CD4314A005BC	LHD CABIN COUPE HARNESS B&O AND RSE	CD4314A005BC LHD CABIN COUPE HARNESS B&O AND RSE From 12MY To 14MY, Rapide, With RSE	-	1	Enquire
-	CD4314A005AC	RHD CABIN COUPE HARNESS B & O AND RSE	CD4314A005AC RHD CABIN COUPE HARNESS B & O AND RSE From 12MY To 14MY, Rapide, With RSE	-	1	Enquire
-	DD4314A005BD	LHD CABIN COUPE HARN	DD4314A005BD LHD CABIN COUPE HARN 14MY Rapide S, With RSE	-	1	Enquire
-	DD4314A005AD	RHD CABIN COUPE HARN	DD4314A005AD RHD CABIN COUPE HARN 14MY Rapide S, With RSE	-	1	Enquire
-	ED4314A005BB	LHD CABIN COUPE HARN	ED4314A005BB LHD CABIN COUPE HARN 14.5MY, With RSE	-	1	Enquire
-	11A9786CP	BOLT - M10X85 - HEX	11A9786CP BOLT - M10X85 - HEX 14.5MY, With RSE	-	1	Enquire
-	FD4314A005BD	LHD CBN COUPE HRNS	FD4314A005BD LHD CBN COUPE HRNS 15MY, With RSE	-	1	Enquire
-	FD4314A005AD	RHD CBN COUPE HRNS	FD4314A005AD RHD CBN COUPE HRNS 15MY, With RSE	-	1	Enquire
-	GD4314A005EC	LH CBN COUPE ASK RSE	GD4314A005EC LH CBN COUPE ASK RSE 16MY, ASK Audio, With RSE	-	1	Enquire
-	GD4314A005DC	RH CABIN COUPE ASK	GD4314A005DC RH CABIN COUPE ASK 16MY, ASK Audio, With RSE	-	1	Enquire
-	GD4314A005BC	LHD CBN COUPE HRNS	GD4314A005BC LHD CBN COUPE HRNS 16MY, Bang and Olufsen Audio, With RSE	-	1	Enquire
-	GD4314A005AC	RHD CBN COUPE HRNS	GD4314A005AC RHD CBN COUPE HRNS 16MY, Bang and Olufsen Audio, With RSE	-	1	Enquire
-	HD4314A005EA	LHD CBN CPE ASK RSE	HD4314A005EA LHD CBN CPE ASK RSE 17MY, ASK Audio, With RSE	-	1	Enquire
-	HD4314A005DA	RHD CABIN COUPE ASK	HD4314A005DA RHD CABIN COUPE ASK 17MY, ASK, With RSE	-	1	Enquire
-	HD4314A005BA	LHD CABIN COUPE	HD4314A005BA LHD CABIN COUPE 17MY, Bang and Olufsen Audio, With RSE	-	1	Enquire
-	HD4314A005AA	RHD CABIN COUPE	HD4314A005AA RHD CABIN COUPE 17MY, Bang and Olufsen, With RSE	-	1	Enquire
-	AD4314A005CD	LH CABIN COUPE B&O NON RSE	AD4314A005CD LH CABIN COUPE B&O NON RSE 10MY, Less Rear Seat Entertainment (RSE)	-	1	Enquire
-	AD4314A005FD	RH CABIN COUPE B&O NON RSE HARNESS	AD4314A005FD RH CABIN COUPE B&O NON RSE HARNESS 10MY, Less RSE	-	1	Enquire
-	BD4314A005CA	LH CABIN COUPE B&O NON RSE	BD4314A005CA LH CABIN COUPE B&O NON RSE 11MY, Less RSE	-	1	Enquire
-	BD4314A005FA	Harness assy, Cabin RHD	BD4314A005FA Harness assy, Cabin RHD 11MY, Less RSE	-	1	Enquire
-	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 From 12MY to 14MY, Rapide, Less RSE	-	1	Enquire
-	CD4314A005FC	RH CABIN COUPE B&O NON RSE HARNESS	CD4314A005FC RH CABIN COUPE B&O NON RSE HARNESS From 12MY to 14MY, Rapide, Less RSE	-	1	Enquire
-	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX 14MY Rapide S, Less RSE	-	1	Enquire
-	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM 14MY Rapide S, Less RSE	-	1	Enquire
-	ED4314A005CB	LH CABIN COUPE HARN	ED4314A005CB LH CABIN COUPE HARN 14.5MY, Less RSE	-	1	Enquire
-	ED4314A005FB	RH CABIN COUPE HARN	ED4314A005FB RH CABIN COUPE HARN 14.5MY, Less RSE	-	1	Enquire
-	FD4314A005CD	LH CBN COUPE B&O NON	FD4314A005CD LH CBN COUPE B&O NON 15MY, Less RSE	-	1	Enquire
-	FD4314A005FD	RH CABIN COUPE B&O	FD4314A005FD RH CABIN COUPE B&O 15MY, Less RSE	-	1	Enquire
-	GD4314A005GC	LHD CBN COUPE HRNS	GD4314A005GC LHD CBN COUPE HRNS 16MY, ASK Audio, Less RSE	-	1	Enquire
-	GD4314A005HC	RHD CBN COUPE HRNS	GD4314A005HC RHD CBN COUPE HRNS 16MY, ASK Audio, Less RSE	-	1	Enquire
-	GD4314A005CC	LH CBN COUPE B&O NON	GD4314A005CC LH CBN COUPE B&O NON 16MY, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	GD4314A005FC	RH CABIN COUPE B&O	GD4314A005FC RH CABIN COUPE B&O 16MY, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	HD4314A005GA	LHD CABIN COUPE HRNS	HD4314A005GA LHD CABIN COUPE HRNS 17MY, ASK Audio, Less RSE	-	1	Enquire
-	HD4314A005HA	RHD CABIN COUPE HRNS	HD4314A005HA RHD CABIN COUPE HRNS 17MY, ASK Audio, Less RSE	-	1	Enquire
-	HD4314A005CA	LHD CABIN COUPE B&O	HD4314A005CA LHD CABIN COUPE B&O 17MY, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	HD4314A005FA	RHD CABIN COUPE B&O	HD4314A005FA RHD CABIN COUPE B&O 17MY, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 19MY, AMR, ASK Audio, Less RSE	-	1	Enquire
-	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES 19MY, AMR, ASK Audio, Less RSE	-	1	Enquire
-	KD4314A005CB	LHD CABIN COUPE B&O	KD4314A005CB LHD CABIN COUPE B&O 19MY, AMR, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	KD4314A005FB	RHD CABIN COUPE B&O	KD4314A005FB RHD CABIN COUPE B&O 19MY, AMR, Bang and Olufsen Audio, Less RSE	-	1	Enquire
-	AD433710109	COAXIAL CBL ASSY-LHD	AD433710109 COAXIAL CBL ASSY-LHD LHD	-	1	Enquire
-	AD433710110	COAXIAL CBL ASSY-RHD	AD433710110 COAXIAL CBL ASSY-RHD RHD	-	1	Enquire
1	AD4314A005BE	LHD CABIN COUPE HARNESS B&O AND RSE	AD4314A005BE LHD CABIN COUPE HARNESS B&O AND RSE 10MY, With Rear Seat Entertainment (RSE)	-	1	Enquire
2	AD439137CB	REAR SEAT HEAT / COOL LINK HARNESS	AD439137CB REAR SEAT HEAT / COOL LINK HARNESS -	-	2	Enquire
3	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	10	Enquire
4	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head -	-	8	Enquire
5	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE -	-	4	Enquire
6	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	16	Enquire
7	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	6	Enquire
