PAS Hoses, RHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - PAS Hoses, RHD

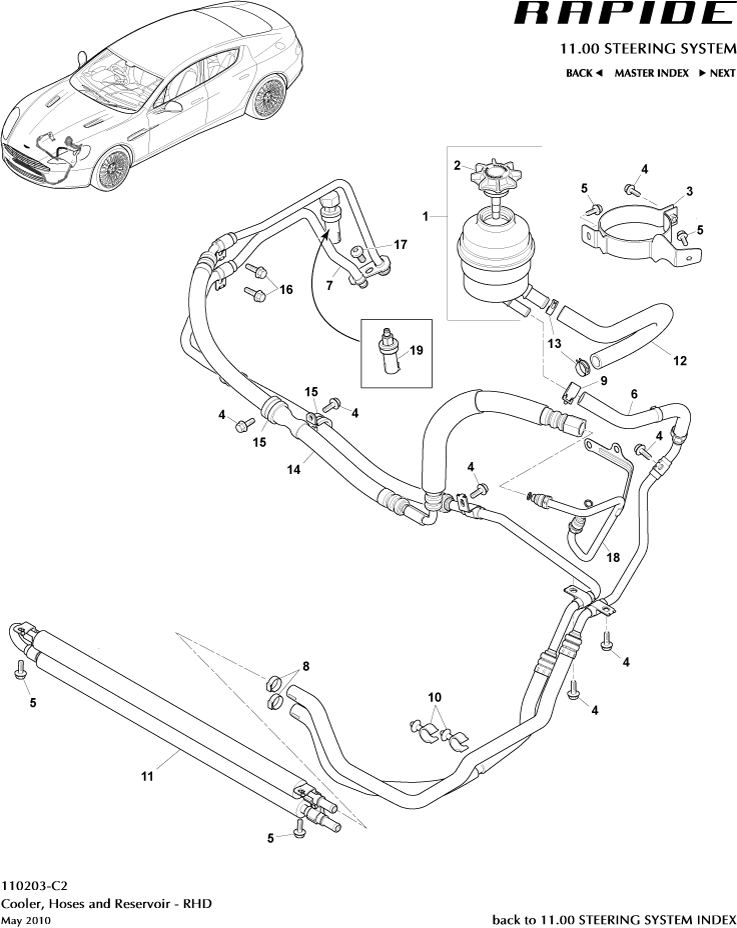

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD333A713AB	Hose, Return, Cooler to Reservoir	CD333A713AB Hose, Return, Cooler to Reservoir Rapide S	-	1	Enquire
-	CD333F558BA	Hose, Return, Gear to Cooler, RHD	CD333F558BA Hose, Return, Gear to Cooler, RHD Rapide S	-	1	Enquire
-	CD333D746AA	Cooler Assy, Power Steering	CD333D746AA Cooler Assy, Power Steering Rapide S	-	1	Enquire
-	DG433E525AA	Hose, Reservoir to Pump, Suction	DG433E525AA Hose, Reservoir to Pump, Suction Up to 15MY Rapide S	-	1	Enquire
-	FD333E525AA	RESRV TO PMP SUCTION	FD333E525AA RESRV TO PMP SUCTION From 15MY Rapide S	-	1	Enquire
-	FD333A719BA	HOSE ASY PAS PMP RHD	FD333A719BA HOSE ASY PAS PMP RHD From 15MY	-	1	Enquire
-	DG433494AA	Tube Assy, PWR Steering Pump Outlet	DG433494AA Tube Assy, PWR Steering Pump Outlet Up to 15MY Rapide S, Includes O Rings	-	1	Enquire
-	FD333494AA	PUMP OUTLET TUBE HP	FD333494AA PUMP OUTLET TUBE HP From 15MY Rapide S, Includes O Rings	-	1	Enquire
1	4G433R700AA	RESVR & CAP ASY-PWR	4G433R700AA RESVR & CAP ASY-PWR -	-	1	Enquire
2	00RG035	REEVITE - 15.9x3.2x8x82x5.4	00RG035 REEVITE - 15.9x3.2x8x82x5.4 -	-	1	Enquire
3	4G433489AD	Bracket Assy, PAS Reservoir	4G433489AD Bracket Assy, PAS Reservoir -	-	1	Enquire
4	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	5	Enquire
5	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
6	8D333A713AB	RETURN HOSE COOLER TO RESERVOIR	8D333A713AB RETURN HOSE COOLER TO RESERVOIR -	-	1	Enquire
7	8D333F558BC	RETURN HOSE GEAR TO COOLER RHD	8D333F558BC RETURN HOSE GEAR TO COOLER RHD -	-	1	Enquire
8	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE -	-	2	Enquire
9	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia -	-	1	Enquire
10	4G436C727AA	HOSE CLIP (RAYMOND 81442)	4G436C727AA HOSE CLIP (RAYMOND 81442) -	-	2	Enquire
11	AD433D746AA	COOLING LOOP POWER STEERING	AD433D746AA COOLING LOOP POWER STEERING -	-	1	Enquire
12	AD433E525AA	RESERVOIR TO PUMP SUCTION	AD433E525AA RESERVOIR TO PUMP SUCTION -	-	1	Enquire
13	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire
14	4G433A719BE	Hose Assy, PAS Pressure Line, Pump to Gear, RHD	4G433A719BE Hose Assy, PAS Pressure Line, Pump to Gear, RHD Up To 15MY	-	1	Enquire
15	699711	Â‘P Clip, 23 x 15 x M6	699711 Â‘P Clip, 23 x 15 x M6 -	-	2	Enquire
16	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	4	Enquire
17	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE -	-	1	Enquire
18	AD433494AA	PUMP OUTLET TUBE - HIGH PRESSURE	AD433494AA PUMP OUTLET TUBE - HIGH PRESSURE -	-	1	Enquire
19	708883	P/SMPL-VIRIDIAN GRN	708883 P/SMPL-VIRIDIAN GRN -	-	1	Enquire
