Name: Fuel Tank Assy, 'S'
Rating: 5.0 (1 reviews)

Find Your Part

Fuel Tank Assy, 'S' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Fuel Tank Assy, 'S'

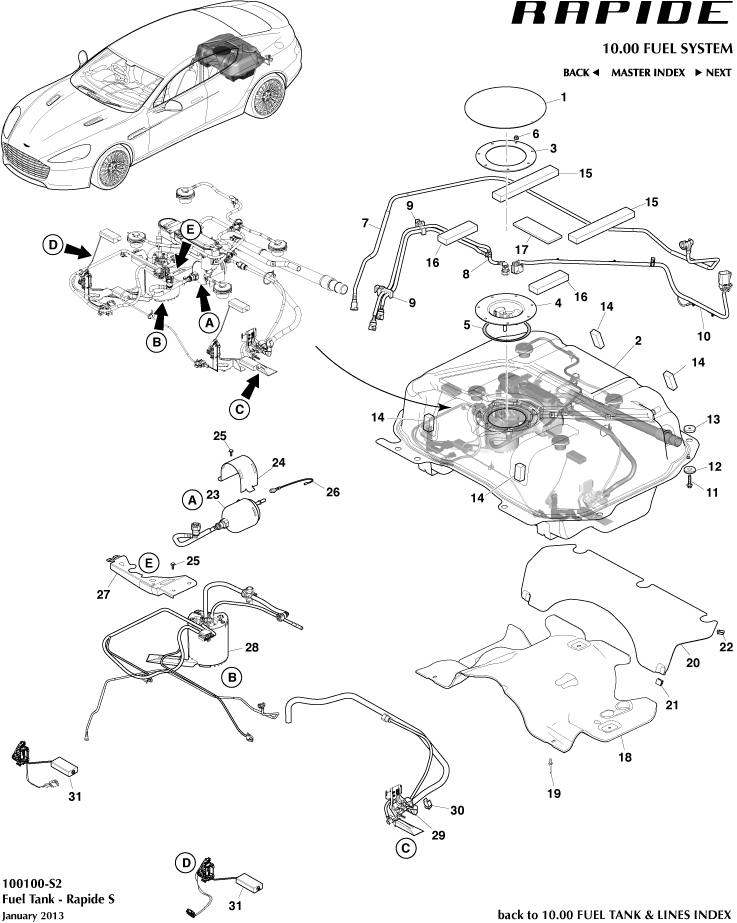

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G439073BB	Gasket, Fuel Tank Cover Plate	4G439073BB Gasket, Fuel Tank Cover Plate Part of item 1	-	1	Enquire
1	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV -	-	1	Enquire
2	DD439K007AC	FUEL TANK ASSY	DD439K007AC FUEL TANK ASSY Includes Items 3 to 31	-	1	Enquire
4a	DD433710175	KIT - HARNESS - FUEL TANK ARRIVING SOON	DD433710175 KIT - HARNESS - FUEL TANK Refer to Accessory Installation Instruction DD43-37-10176 on DCS. ARRIVING SOON	-	1	Enquire
5	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace Each Time Cover Plate is Removed. ARRIVING SOON	-	1	Enquire
6	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	7	Enquire
7	83300496183	Fixture	83300496183 Fixture -	-	1	Enquire
8	81855A42A73	Show plate Rolls-Royce	81855A42A73 Show plate Rolls-Royce Includes Clips	-	1	Enquire
9	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part ofItem 8	-	2	Enquire
10	71235B62B31	Label, coolant	71235B62B31 Label, coolant -	-	1	Enquire
11	SY9Y2L202PB	DISTRIBUTOR SOL 1	SY9Y2L202PB DISTRIBUTOR SOL 1 -	-	7	Enquire
12	13A6133CP	NVH - Wheel Arch Cover Panel to DOP - Upper	13A6133CP NVH - Wheel Arch Cover Panel to DOP - Upper -	$9.66	7
13	22AA084GP	ASSY PNL DOP RH GT	22AA084GP ASSY PNL DOP RH GT -	-	7	Enquire
15	SY9Y255A58AA	RR QUATR CLSG PNL RH	SY9Y255A58AA RR QUATR CLSG PNL RH -	-	2	Enquire
16	AD43M2D28AB	RUBBER ISO STRIP FRT	AD43M2D28AB RUBBER ISO STRIP FRT -	-	2	Enquire
17	7129905291	Screw	7129905291 Screw -	-	1	Enquire
18	13A6134CP	NVH - Wheel Arch Cover Panel to DOP - Lower	13A6134CP NVH - Wheel Arch Cover Panel to DOP - Lower -	$5.66	1
19	22AB236GP	SERVICE HATCH OIL FILTER FOAM SEAL	22AB236GP SERVICE HATCH OIL FILTER FOAM SEAL -	-	5	Enquire
20	51135B8F5C0	Retrofit, Black pack, RR22	51135B8F5C0 Retrofit, Black pack, RR22 -	-	1	Enquire
21	72605B91B58	Kit, flagpole RR31, Left hand	72605B91B58 Kit, flagpole RR31, Left hand -	-	2	Enquire
22	00RA392	BOLT - HEX HEAD - TUFLOK - M6X20-8.8	00RA392 BOLT - HEX HEAD - TUFLOK - M6X20-8.8 -	-	4	Enquire
23	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH -	-	1	Enquire
25	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16 -	-	3	Enquire
26	6G3366991AB	Earth Wire	6G3366991AB Earth Wire -	-	1	Enquire
27	SY9Y41037AA	RR QUATER INFILL LH	SY9Y41037AA RR QUATER INFILL LH -	-	1	Enquire
28	36115B8A241	Set, wheel & winter tyre style 928	36115B8A241 Set, wheel & winter tyre style 928 -	-	1	Enquire
29	CD339275AA	Jet Pump Module Assembly	CD339275AA Jet Pump Module Assembly -	-	1	Enquire
30	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 -	-	2	Enquire
31	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender -	-	2	Enquire
