Fuel Tank Assy of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

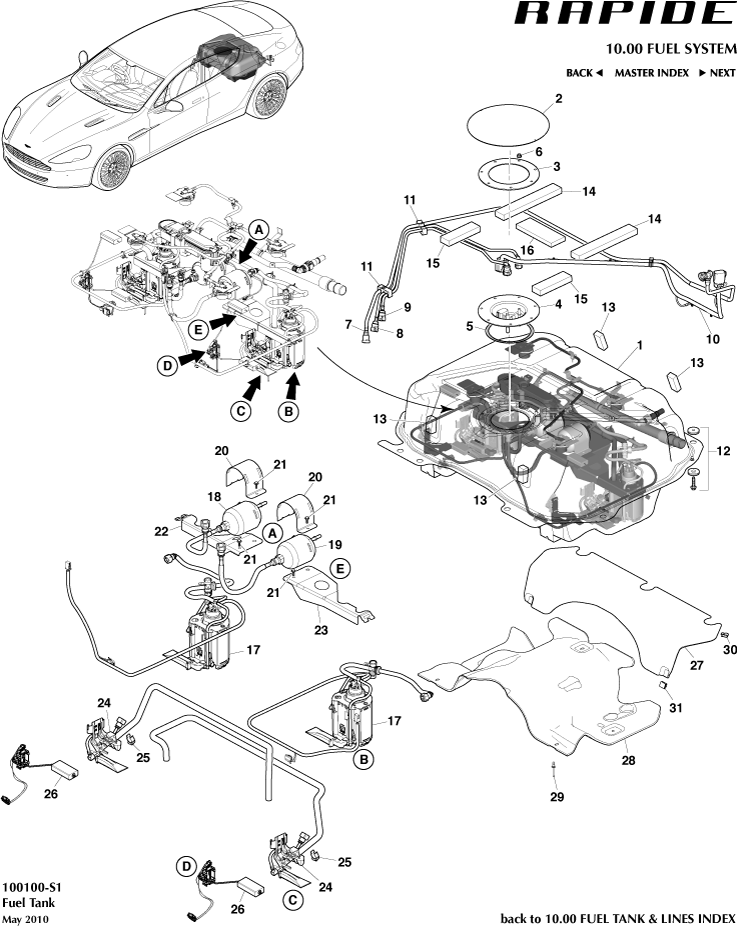

Aston Martin GT RAPIDE (2010-2019) - Fuel Tank Assy

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD439K007AD	FUEL TANK ASSEMBLY	AD439K007AD FUEL TANK ASSEMBLY -	-	1	Enquire
2	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV -	-	1	Enquire
4	AD439A309AB	FUEL TANK HATCH	AD439A309AB FUEL TANK HATCH -	-	1	Enquire
5	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace each time Cover Plate is removed. ARRIVING SOON	-	1	Enquire
6	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	8	Enquire
7	SY9Y23945JBW	DOOR ASSY TRIM LH	SY9Y23945JBW DOOR ASSY TRIM LH -	-	1	Enquire
8	7119900912	Countersunk screw	7119900912 Countersunk screw -	-	1	Enquire
9	51118496371	Cover	51118496371 Cover -	-	1	Enquire
10	AD4314407AC	FUEL TANK LINK HARN	AD4314407AC FUEL TANK LINK HARN -	-	1	Enquire
12	AD43P9B154BA	FUEL TANK FIXING BOLT ASSY	AD43P9B154BA FUEL TANK FIXING BOLT ASSY -	-	7	Enquire
13	4G43482550AA	FOAM PAD - TANK UPPER	4G43482550AA FOAM PAD - TANK UPPER -	-	4	Enquire
14	SY9Y255A58AA	RR QUATR CLSG PNL RH	SY9Y255A58AA RR QUATR CLSG PNL RH -	-	1	Enquire
15	36106887146	Wheel electr. module RDCi w/ screw valve	36106887146 Wheel electr. module RDCi w/ screw valve Use item 14	-	2	Enquire
16	7129905291	Screw	7129905291 Screw -	-	1	Enquire
17	83305A68827	Supplementary kit	83305A68827 Supplementary kit Kit also includes harness DD43-37-10175 which will require fitting. Refer to Accessory Installation Instruction DD43-37-10176 on DCS	-	1	Enquire

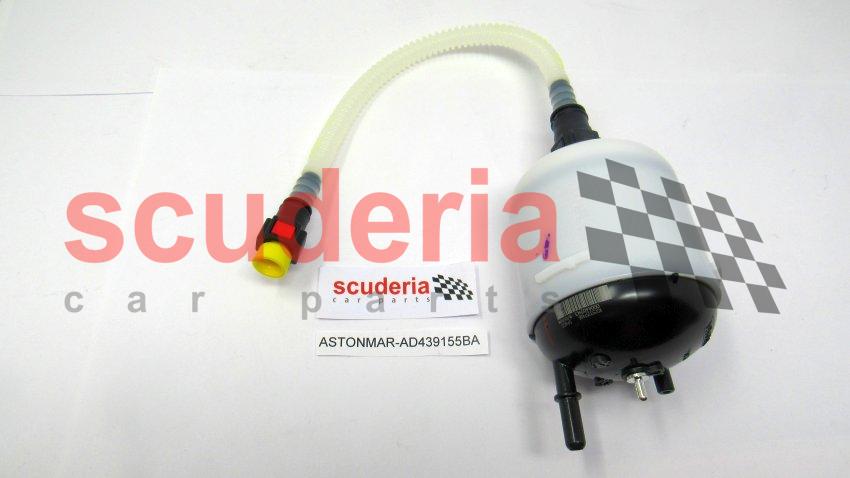

18	AD439155BA	Fuel Filter LH	AD439155BA Fuel Filter LH LHS	-	1	Enquire

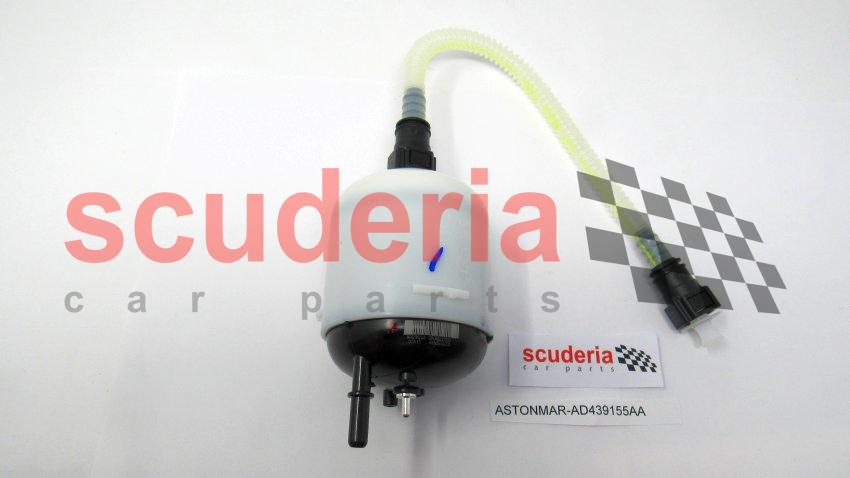

19	AD439155AA	Fuel Filter RH	AD439155AA Fuel Filter RH RHS	-	1	Enquire
20	SY9Y48002CA	DIFF ACCESS HATCH RH	SY9Y48002CA DIFF ACCESS HATCH RH -	-	2	Enquire
21	SY9Y455A03AB	SILL MOULDING HATCH	SY9Y455A03AB SILL MOULDING HATCH -	-	1	Enquire
22	83125B68806	Scent sample, bottle	83125B68806 Scent sample, bottle -	-	1	Enquire
23	SY9Y23945UBW	DOOR ASSY TRIM LH	SY9Y23945UBW DOOR ASSY TRIM LH -	-	1	Enquire
24	AD439275AA	Sender Assy, fuel tank	AD439275AA Sender Assy, fuel tank -	-	2	Enquire
25	701181	Clip, 16 x 6.5 x 1.5-6	701181 Clip, 16 x 6.5 x 1.5-6 -	-	2	Enquire
27	51135B8F5C0	Retrofit, Black pack, RR22	51135B8F5C0 Retrofit, Black pack, RR22 -	-	2	Enquire
28	13A6134CP	NVH - Wheel Arch Cover Panel to DOP - Lower	13A6134CP NVH - Wheel Arch Cover Panel to DOP - Lower -	$5.66	1
29	22AB236GP	SERVICE HATCH OIL FILTER FOAM SEAL	22AB236GP SERVICE HATCH OIL FILTER FOAM SEAL -	-	3	Enquire
30	00RA392	BOLT - HEX HEAD - TUFLOK - M6X20-8.8	00RA392 BOLT - HEX HEAD - TUFLOK - M6X20-8.8 -	-	4	Enquire
31	72605B91B58	Kit, flagpole RR31, Left hand	72605B91B58 Kit, flagpole RR31, Left hand -	-	2	Enquire
