Transmission Oil Cooler of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

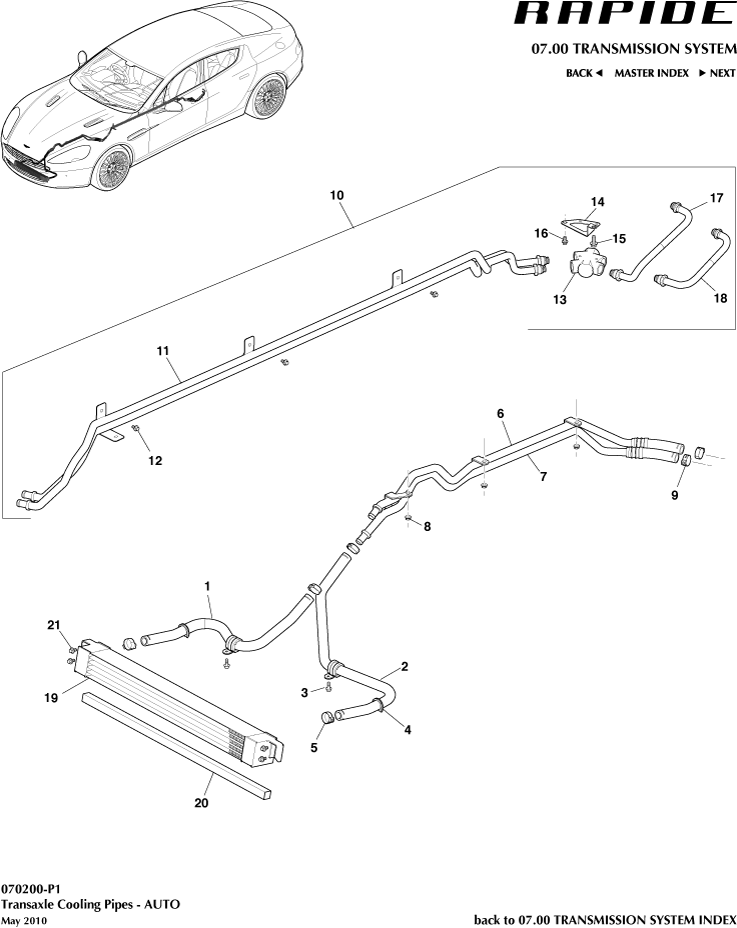

Aston Martin GT RAPIDE (2010-2019) - Transmission Oil Cooler

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D337F120AB	Hose, Transmission Oil Cooler Outlet	9D337F120AB Hose, Transmission Oil Cooler Outlet AMR 19MY. Incl. P clips	-	1	Enquire
-	9D337F120BB	Hose, Transmission Oil Cooler Inlet	9D337F120BB Hose, Transmission Oil Cooler Inlet AMR 19MY. Incl. P clips	-	1	Enquire
-	CD337W093AC	Pipe Assembly, Engine Bay, Inlet	CD337W093AC Pipe Assembly, Engine Bay, Inlet Rapide S	-	1	Enquire
-	CD337W093BC	Pipe Assembly, Engine Bay, Outlet	CD337W093BC Pipe Assembly, Engine Bay, Outlet Rapide S	-	1	Enquire
-	FD43321363AA	OIL PIPE ASSY TRANS	FD43321363AA OIL PIPE ASSY TRANS From 15MY, 8 speed	-	1	Enquire
-	SY9Y5221BA	TE CLAMP	SY9Y5221BA TE CLAMP From 15MY, 8 speed	-	1	Enquire
-	83305B69999	Guide bush	83305B69999 Guide bush From 15MY	-	1	Enquire
-	13A3517CP	Bracket - Fender To Hinge - RH	13A3517CP Bracket - Fender To Hinge - RH From 15MY, 8 speed	$44.88	1
-	00RA089	Bolt - M6x20 - Hex - Washer - D20	00RA089 Bolt - M6x20 - Hex - Washer - D20 From 15MY, 8 speed	-	1	Enquire
1	9G437F120AA	HOSE - AIR/OIL ASSY COOLER OUTLET	9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET 'S'. Incl. P clips	-	1	Enquire
2	9G437F120BA	HOSE - AIR/OIL ASSY COOLER INLET	9G437F120BA HOSE - AIR/OIL ASSY COOLER INLET 'S'. Incl. P clips	-	1	Enquire
3	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
4	9G437R041AA	SEAL HOSE TRANS OIL COOLER	9G437R041AA SEAL HOSE TRANS OIL COOLER -	-	2	Enquire
5	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R -	-	4	Enquire
6	9G437W093AA	PIPE ASSEMBLY ENGINE BAY INLET	9G437W093AA PIPE ASSEMBLY ENGINE BAY INLET -	-	1	Enquire
7	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET -	-	1	Enquire
8	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	3	Enquire
9	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R -	-	2	Enquire
10	AD43321363AC	OIL PIPE ASSY	AD43321363AC OIL PIPE ASSY Up To 15MY, 6 speed	-	1	Enquire
11	22AB020GP	ASSY PNL BODYSIDE RR LWR LH	22AB020GP ASSY PNL BODYSIDE RR LWR LH Up To 15MY, 6 speed	-	1	Enquire
12	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	3	Enquire
13	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control -	-	1	Enquire
15	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE -	-	1	Enquire
16	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head -	-	1	Enquire
17	22AA531GP	ASSY PNL RR FENDER SUPPORT RH	22AA531GP ASSY PNL RR FENDER SUPPORT RH Up to 15MY, 6 speed	-	1	Enquire
18	22AA688GP	ASSY BRACKET SAB TO REAR FENDER RH	22AA688GP ASSY BRACKET SAB TO REAR FENDER RH Up to 15MY, 6 speed	-	1	Enquire
19	9G43445396AA	MATRIX OIL COOLER	9G43445396AA MATRIX OIL COOLER -	-	1	Enquire
20	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper -	-	1	Enquire
21	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	4	Enquire
